Inovance MD290T45G/55P User Manual

8. Peripherals and Options
- 237 -
8
Ƶ

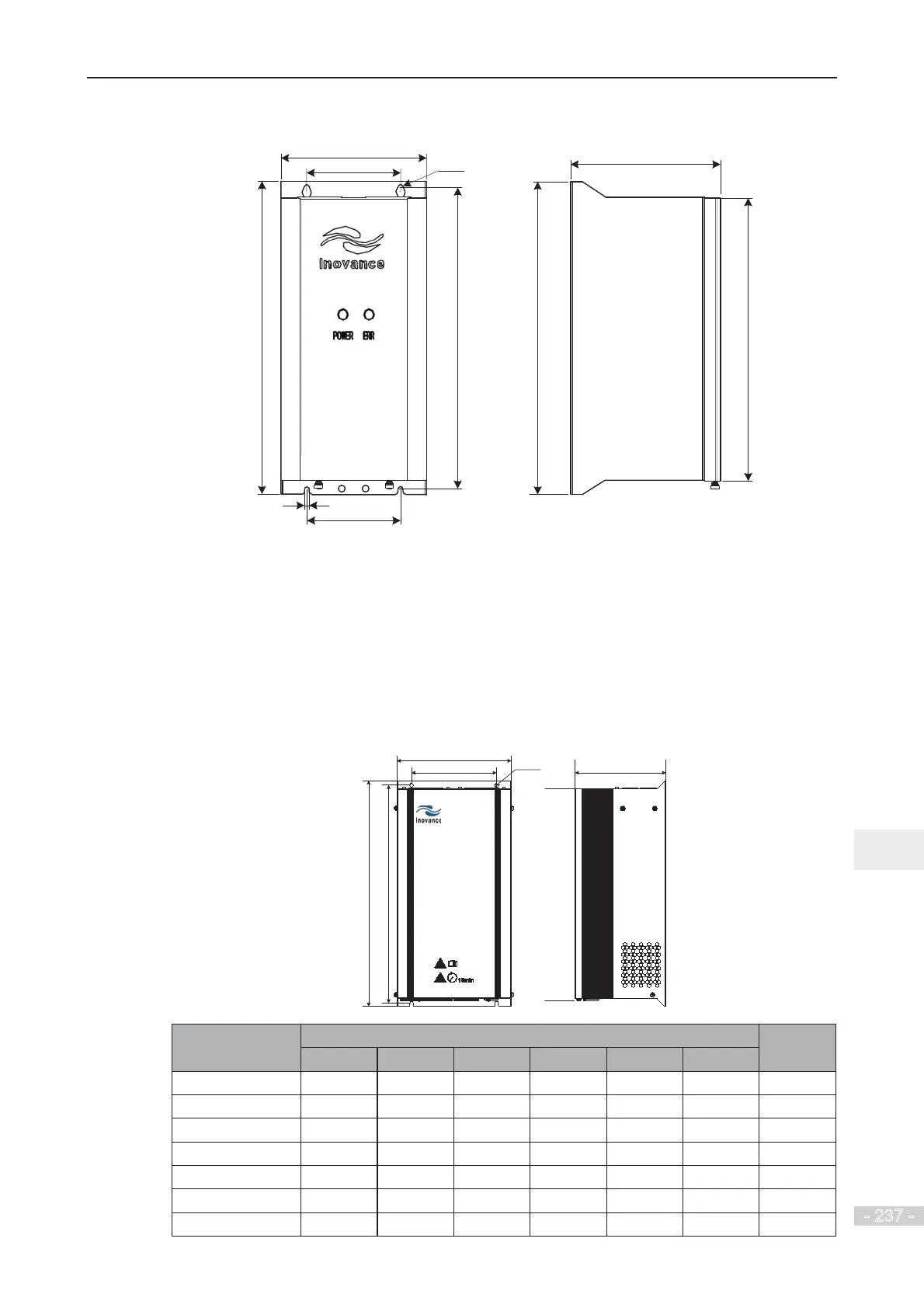

Mounting Dimensions of
MDBU Series Braking Unit
187
430
2-6
415
120
2-6
192
120
430
390
Unit: mm
For use and installation of MDBU series braking unit, refer to the MDBU Series Braking Unit
User Manual.
Ƶ
Mounting Dimensions of the AFE Unit
The AC drive of Inovance can be configured with the AFE unit, which can feedback energy
produced during motor braking to the grid, saving braking unit and braking resistor can reducing
heating pollution on surrounding environment.
The AFE unit has advantages of energy saving, low noise, low harmonics pollution and high
power factor.
HB
W
A
Ï
D
AFE Model Dimensions (mm) Weight
(kg)
HWDABĭ
MD051T5.5G 305 190 163 130 290 7.0 7.2
MD051T7.5G 305 190 163 130 290 7.0 7.2
MD051T11G 305 190 163 130 290 7.0 7.2
MD051T15G 425 215 174 160 410 7.0 13.2
MD051T18.5G 425 215 174 160 410 7.0 13.2
MD051T22G 490 260 200 160 475 7.0 19.6
MD051T30G 490 260 200 160 475 7.0 21.3
