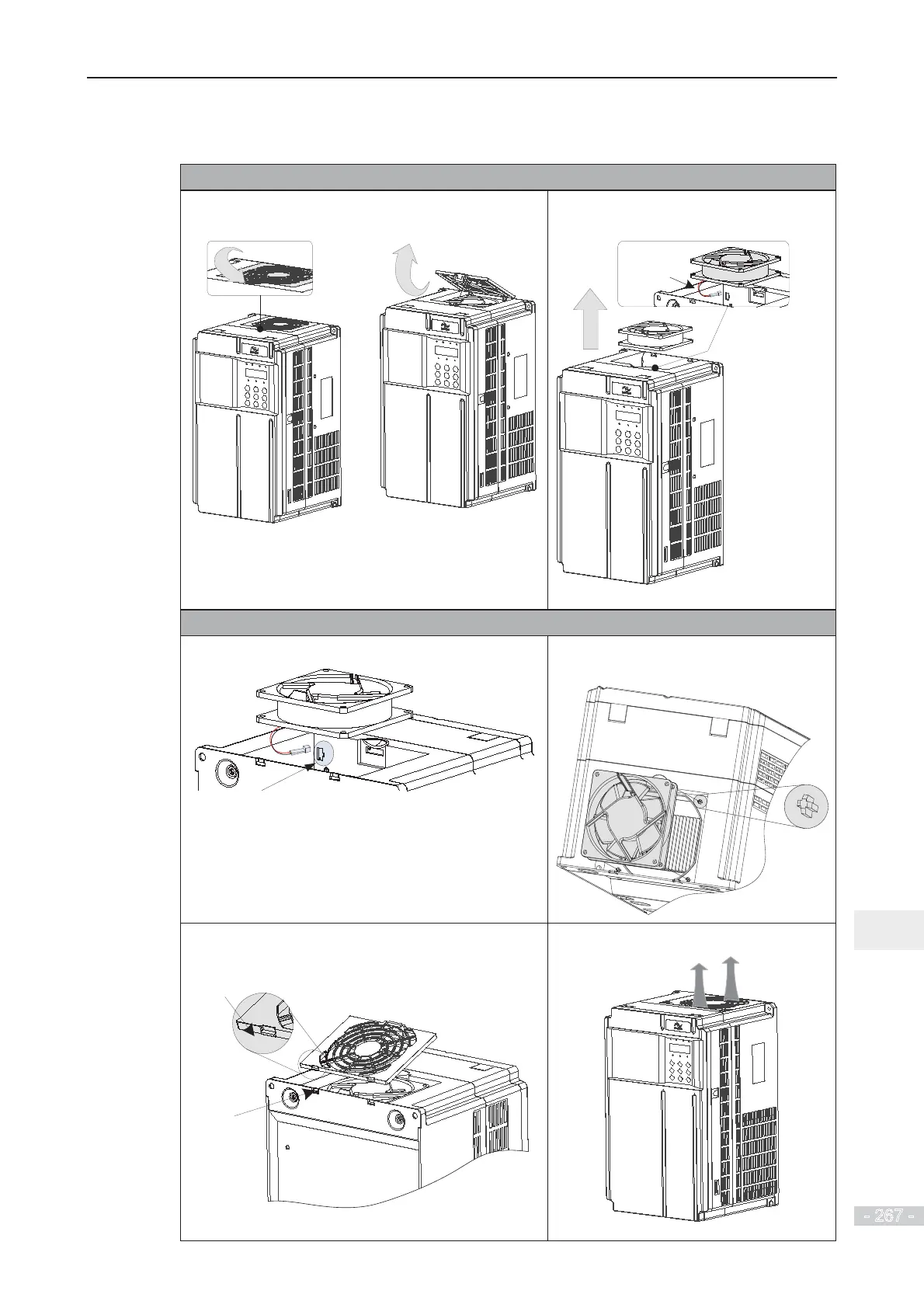

Removing and Installing the Fan of a Plastic Housing (MD290T18.5G/22P to
MD290T37G/45P)
Removal
1. Depress the fan cover hook and take the fan cover
off the top of the drive.
2. Pull the fan upward and disconnect
the pluggable connector of power cable.
Fan power
cable connector
Look down from the
back of the drive.
Installing
1. Plug in the fan power cable .
Fan power
socket
2. Install the fan into the drive and ensure
that the mounting pins are aligned.
Mounting
pin x 4
3. Insert the two guide pins into the square holes and
then press in the hook.
Guide pin
Square
hole
.HHSDLUÀRZGLUHFWLRQXSZDUG
