9. Maintenance and Inspection
- 268 -
9
Ƶ

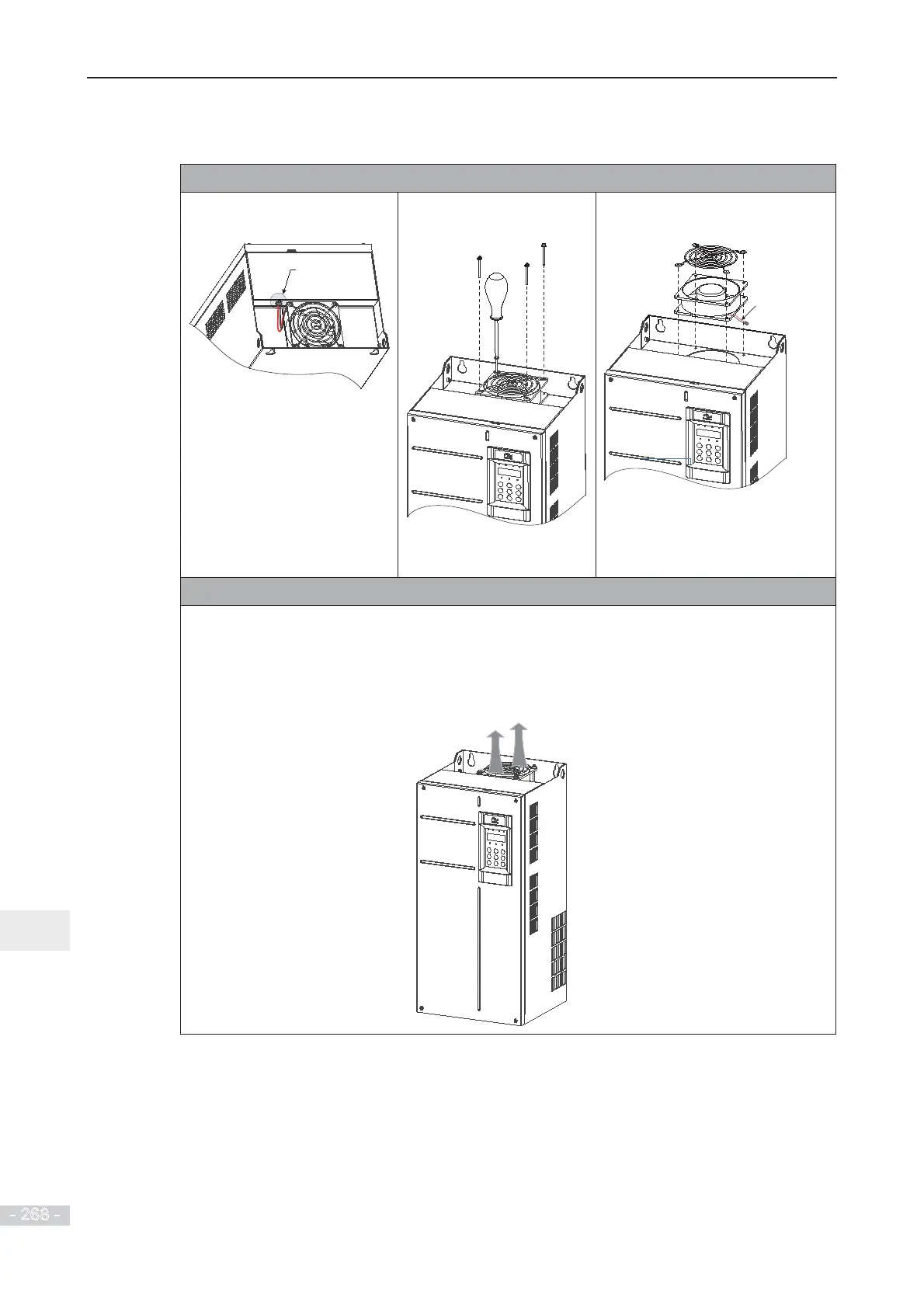

Removing and Installing the Fan of a Sheet Metal Housing (MD290T45G/55P to
MD290T160G/200P)
Removal
1. Disconnect the fan cable
from the drive
Fan power
socket
2. Remove the four screws
from the drive.
3. Remove the fan and fan cover
from the drive.
Fan power cable
Fan cover
Fan
Installing
1. Align the mounting holes of the cooling fan, fan cover and the drive.
2. Install the fan and fan cover on the AC drive.
)L[WKHVFUHZVDQGHQVXUHFRUUHFWDLUÀRZGLUHFWLRQ
Keep the air flow direction upward.
