9. Maintenance and Inspection
- 269 -
9
Ƶ
Removing and Installing the Fan of MD290T200G(-L) to MD290T450G(-L) and
MD290T220P(-L) to MD290T500P(-L)
Removal

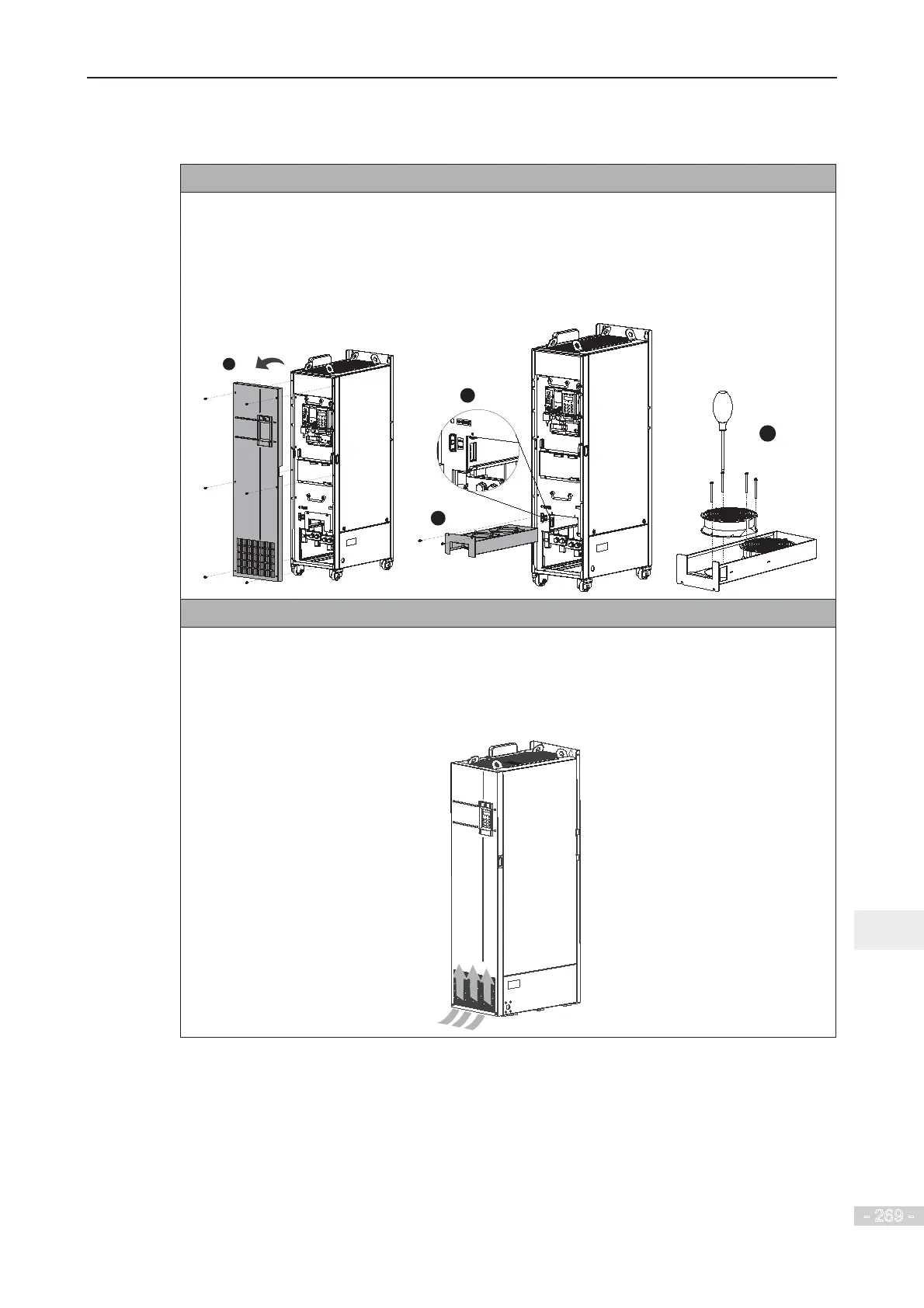

1. Disconnect the six screws and remove the front cover.
2. Disconnect the fan power cable connector from the drive. Each fan has a power cable
connector.
3. Remove three screws from the fan box and draw the fan box out in the direction of arrow.
4. Loosen four screws from each fan cover and remove the fan.
1
2
3
4
Installing
3XWWKHWKUHHIDQVLQWRWKHIDQER[RQHE\RQHDQGVHFXUHWKHPE\¿[LQJWKHVFUHZV
2. Align the fan box to the rail and push it into the drive.
&RQQHFWWKHIDQSRZHUFDEOHFRQQHFWRUVDQG¿[WKHWKUHHVFUHZV
$IWHUUHSODFHPHQWLVFRPSOHWHGFKHFNWKDWWKHDLUÀRZGLUHFWLRQLVXSULJKW
Ƶ
Replacement of Electrolytic Capacitor
If replacement of electrolytic capacitor is required, contact the agent or Inovance to perform
complete drive replacement.
