Inovance MD290T45G/55P User Manual

Appendix
- 289 -
12

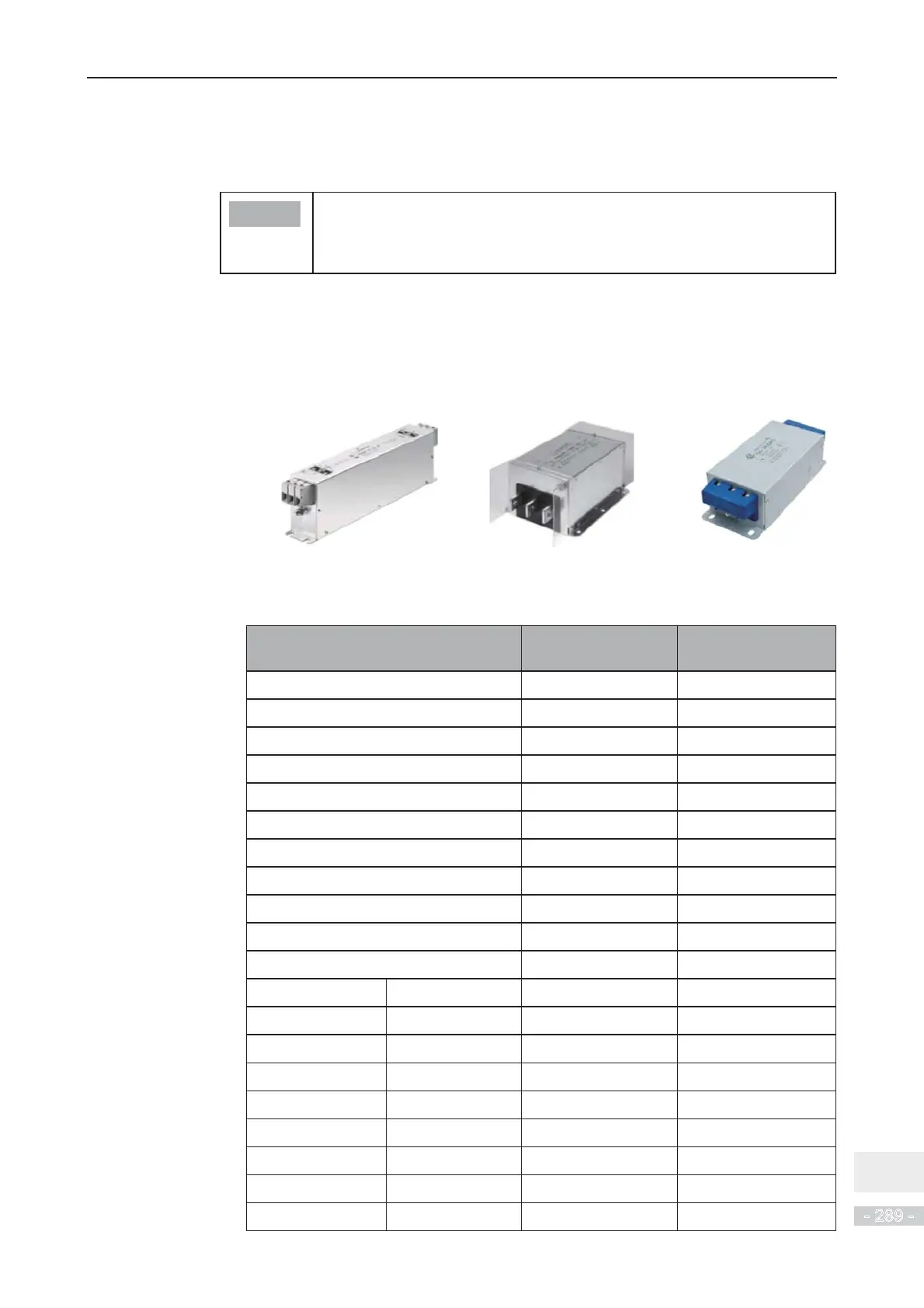

A.1.5 Selection of Peripheral EMC Devices
Ƶ
AC Input Filter Installation
Note
6HOHFWDFDEOHDVVKRUWDVSRVVLEOHWRFRQQHFW¿OWHUDQGGULYH&DEOHOHQJWK
PXVWEHOHVVWKDQFP0DNHVXUHWRFRQQHFW¿OWHUDQGGULYHWRWKHVDPH
JURXQGLQJUHIHUHQFHVXUIDFHWRLPSOHPHQWUHOLDEOHJURXQGLQJRIWKH¿OWHU
2WKHUZLVHGHVLUHG¿OWHULQJHIIHFWZLOOQRWEHDFKLHYHG
Ɣ
6WDQGDUG(0&¿OWHU
7KLVVHULHV¿OWHUVVDWLVI\WKH(1&HPLVVLRQUHTXLUHPHQWRI&(FHUWL¿FDWLRQ
&RQQHFW¿OWHUWRJURXQGUHOLDEO\DQGHQVXUHWKDWOHQJWKRIWKHFDEOHFRQQHFWLQJGULYH
DQG¿OWHULVOHVVWKDQFP
–
Physical appearance
Schaffner FN3258 series filter
Schaffner FN3359 series filter
Changzhou Jianli EBK5
series filter
–
Selection
MD290 Model Input AC Filter Model
(Schaffner)
Input AC Filter Model
(Changzhou Jianli)
MD290T18.5GB/22P FN 3258-55-34 DL-50EBK5
MD290T22GB/30P FN 3258-75-34 DL-65EBK5
MD290T30GB/37P FN 3258-75-34 DL-65EBK5
MD290T37GB/45P FN 3258-100-35 DL-80EBK5
MD290T45GB/55P FN 3258-100-35 DL-100EBK5
MD290T55GB/75P FN 3258-130-35 DL-130EBK5
MD290T75GB/90P FN 3258-180-40 DL-160EBK5
MD290T90G/110P FN 3258-180-40 DL-200EBK5
MD290T110G/132P FN 3270H-250-99 DL-250EBK5
MD290T132G/160P FN 3359-250-28 DL-300EBK3
MD290T160G/200P FN 3359-320-99 DL-400EBK3
MD290T200G(-L) MD290T220P(-L)
FN 3359-400-99 DL-400EBK3
MD290T250P(-L) -
MD290T220G(-L) MD290T280P(-L)
FN 3359-600-99 DL-600EBK3
MD290T250G(-L) MD290T315P(-L)
FN 3359-600-99 DL-600EBK3
MD290T280G(-L) MD290T355P(-L)
FN 3359-600-99 DL-600EBK3
MD290T315G(-L) MD290T400P(-L)
FN 3359-600-99 DL-600EBK3
MD290T355G(-L) MD290T450P(-L)
FN 3359-800-99 DL-700EBK3
MD290T400G(-L) MD290T500P(-L)
FN 3359-800-99 DL-800EBK3
MD290T450G(-L) -
FN 3359-800-99 DL-800EBK3
