Appendix
- 290 -
12
–

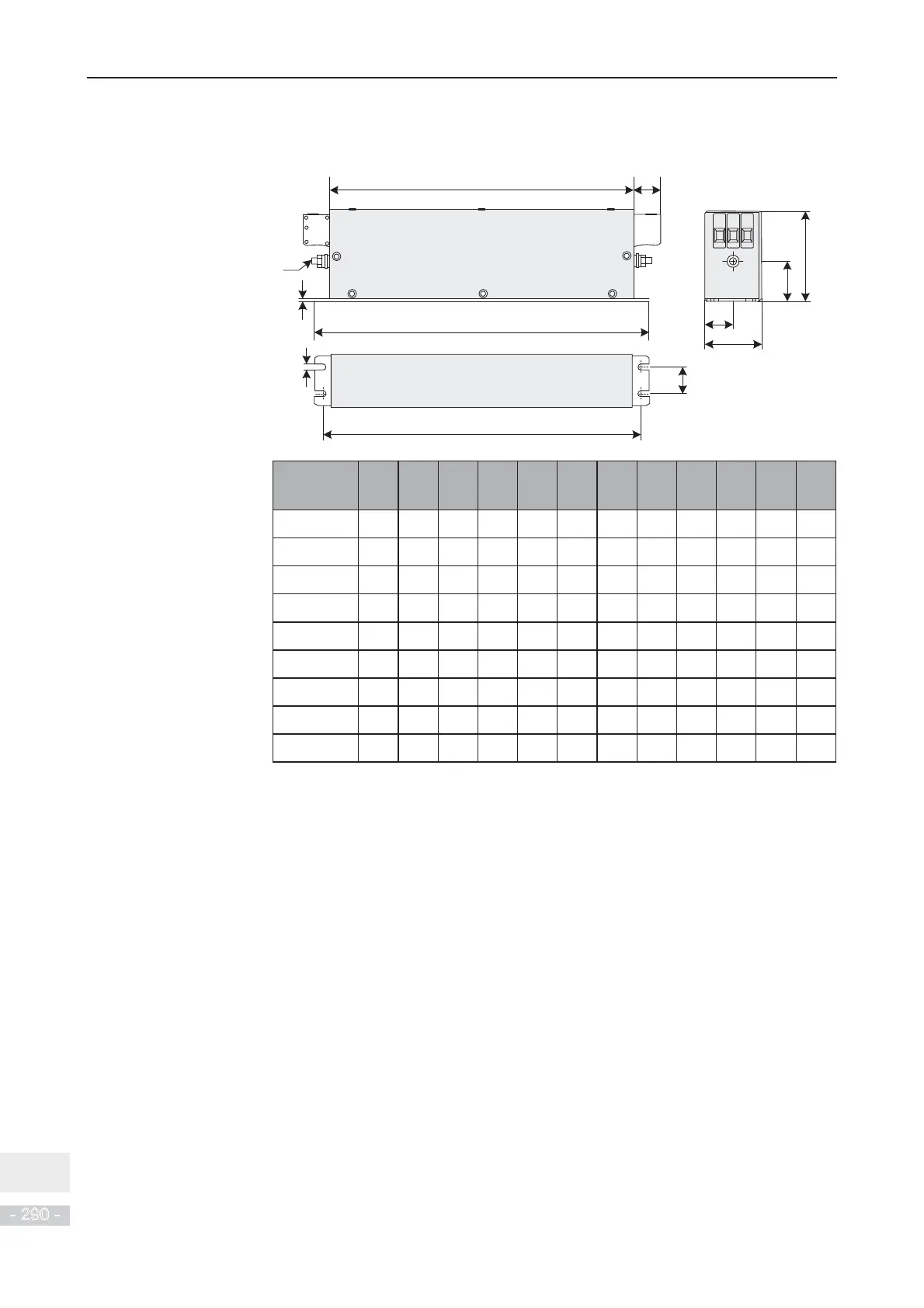

Mounting Dimensions
'LPHQVLRQVRI6FKDIIQHU)1VHULHV$¿OWHU
D
A
B
C
E
F
G
H
I
J
K
L
Unit: mm
Rated
Current (A)
ABCDEFGHI J KL
7 190 40 70 160 180 20 4.5 1 22 M5 20 29.5
16 250 45 70 220 235 25 5.4 1 22 M5 22.5 29.5
30 270 50 85 240 255 30 5.4 1 25 M5 25 39.5
42 310 50 85 280 295 30 5.4 1 25 M6 25 37.5
55 250 85 90 220 235 60 5.4 1 39 M6 42.5 26.5
75 270 80 135 240 255 60 6.5 1.5 39 M6 40 70.5
100 270 90 150 240 255 65 6.5 1.5 45 M10 45 64
130 270 90 150 240 255 65 6.5 1.5 45 M10 45 64
180 380 120 170 350 365 102 6.5 1.5 51 M10 60 47
