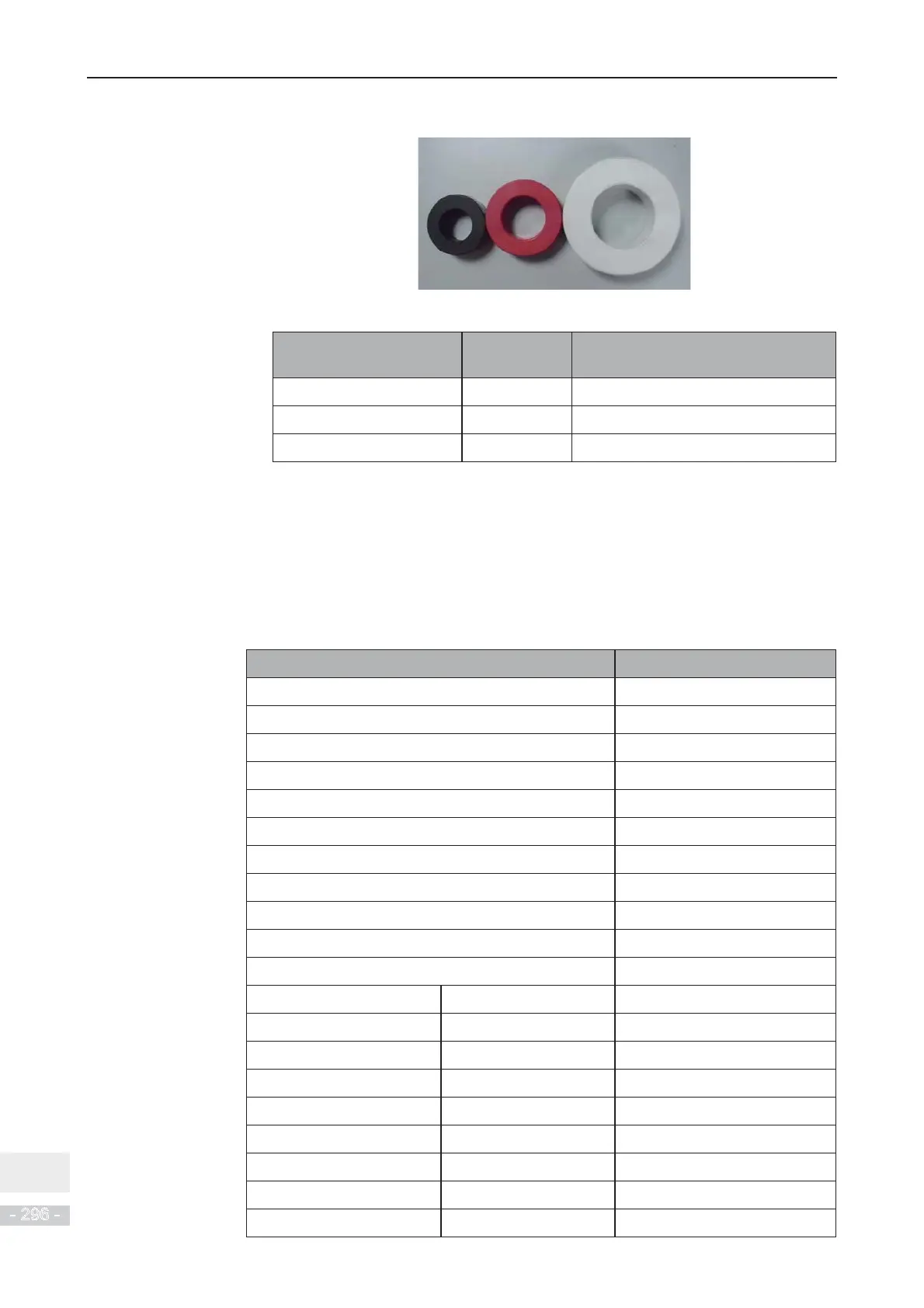

Appendix
- 296 -
12
Physical appearance of ferrite core
Selection of ferrite core
Ferrite Core Model SN Dimensions (Outer Diameter x Inner
Diameter x Thickness) (mm)
DY644020H 11013031 64 x 40 x 20
DY805020H 11013032 80 x 50 x 20
DY1207030H 11013033 120 x 70 x 30
Ƶ
AC input reactor installation
Ɣ
AC Reactor Model
The AC input reactor is connected to suppress harmonic current on the input side.
Install an AC reactor when the application has higher requirements on harmonic
suppression.
The recommended AC reactor models are listed in the following table.
AC Drive Model AC Reactor Model (Inovance)
MD290T18.5GB/22P MD-ACL-50-0.28-4T-2%
MD290T22GB/30P MD-ACL-60-0.24-4T-2%
MD290T30GB/37P MD-ACL-90-0.16-4T-2%
MD290T37GB/45P MD-ACL-90-0.16-4T-2%
MD290T45GB/55P MD-ACL-120-0.12-4T-2%
MD290T55GB/75P MD-ACL-150-0.095-4T-2%
MD290T75GB/90P MD-ACL-200-0.07-4T-2%
MD290T90G/110P MMD-ACL-250-0.056-4T-2%
MD290T110G/132P MD-ACL-250-0.056-4T-2%
MD290T132G/160P MD-ACL-330-0.042-4T-2%
MD290T160G/200P MD-ACL-330-0.042-4T-2%
MD290T200G(-L) MD290T220P(-L) MD-ACL-490-0.028-4T-2%
MD290T250P(-L) - MD-ACL-490-0.028-4T-2%
MD290T220G(-L) MD290T280P(-L) MD-ACL-490-0.028-4T-2%
MD290T250G(-L) MD290T315P(-L) MD-ACL-490-0.028-4T-2%
MD290T355P(-L) MD290T355P(-L) MD-ACL-660-0.021-4T-2%
MD290T315G(-L) MD290T400P(-L) MD-ACL-660-0.021-4T-2%
MD290T355G(-L) MD290T450P(-L) MD-ACL-800-0.017-4T-2%
MD290T400G(-L) MD290T500P(-L) MD-ACL-800-0.017-4T-2%
MD290T450G(-L) MD-ACL-1000-0.014-4T-2%
