Mounting dimensions

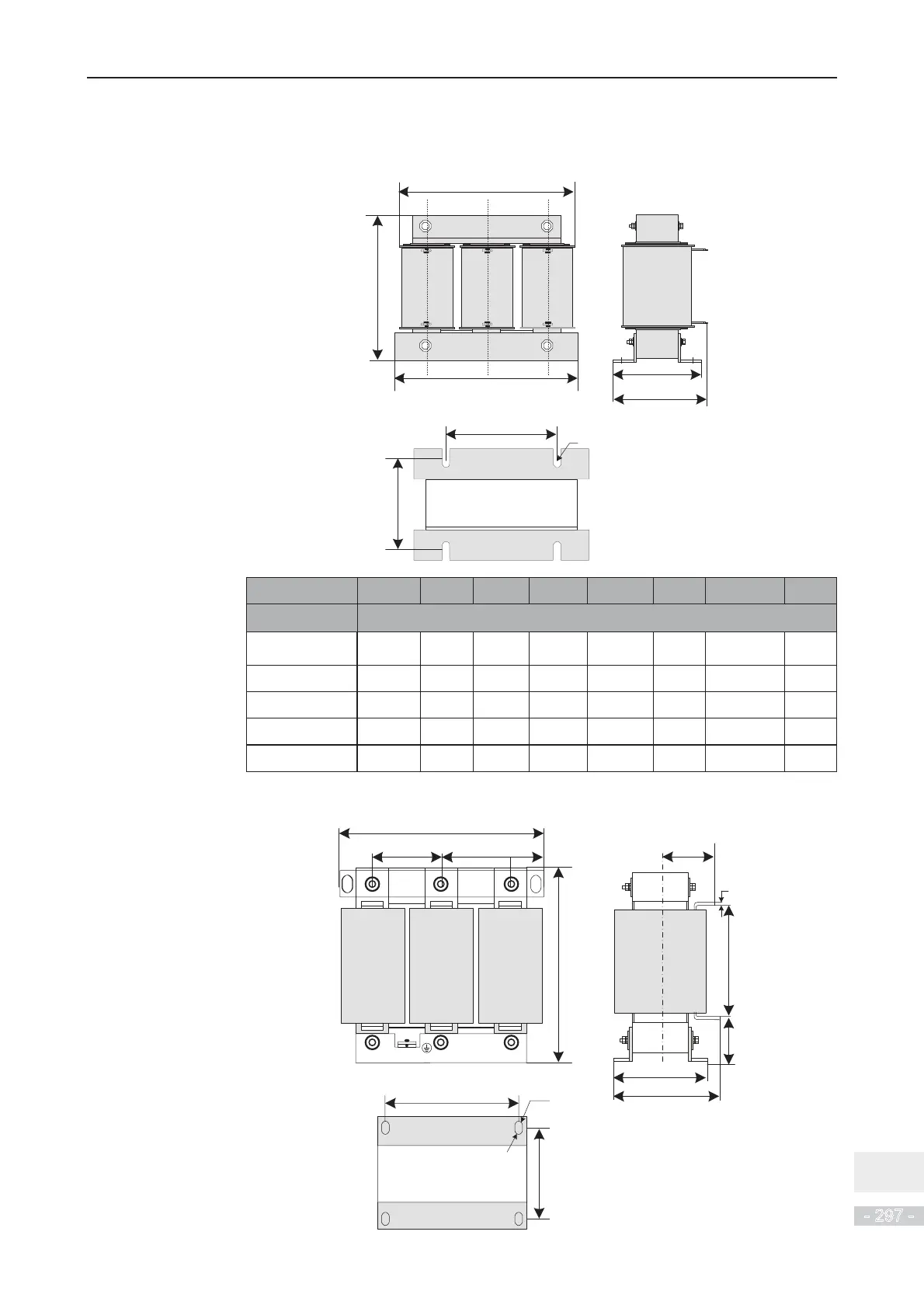

Dimensions of AC output reactor of 50 to 120 A are shown as below:
UVW
XYZ
A
C
B
D
R
X
F
H
G
E
Rated Current A B C D E F G H
(A) (mm)
50 155 130 148 95 135 95 6 x 15 80
60 195 165 188 92 130 120 8.5 x 20 72
80 195 165 188 92 130 120 8.5 x 20 72
90 195 165 188 92 130 120 8.5 x 20 72
120 195 165 188 112 140 120 8.5 x 20 92
Dimensions of AC output reactor of 150 to 250 A are shown as below:
UVW
XYZ
A
D
B C
H
F
G
J
E
K
M
L
I
U
X
