Appendix
- 298 -
12
Rated
Current
ABC D E FG H I J K L M
Amm
150 250 81 81 230 97 5 140 113 170 42 182 11 x 18 87
200 250 81 81 230 102 5 140 123 175 42 182 11 x 18 97
250 250 81 81 230 102 5 140 123 175 42 182 11 x 18 97

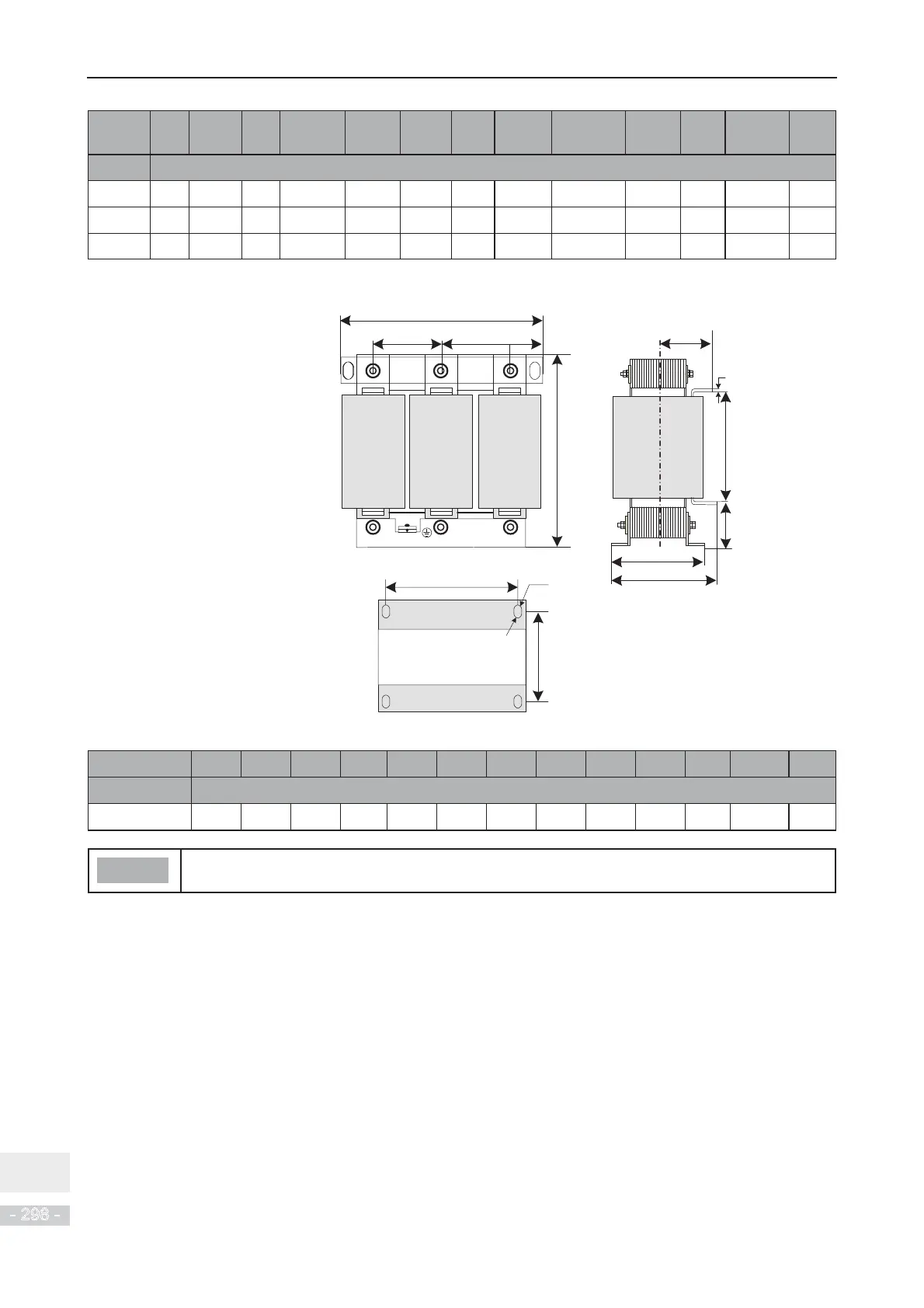

Dimension of AC output reactor of 330 A
UVW
XYZ
A
D
B C
H
F
G
J
E
K
M
L
I
U
X
Rated Current A B C D E F G H I J K L M
(A) (mm)
330 290 95 95 250 110 5 155 132 190 45 214 11 x18 106
Note
The dimensions of the AC input and output reactors are for reference only.
