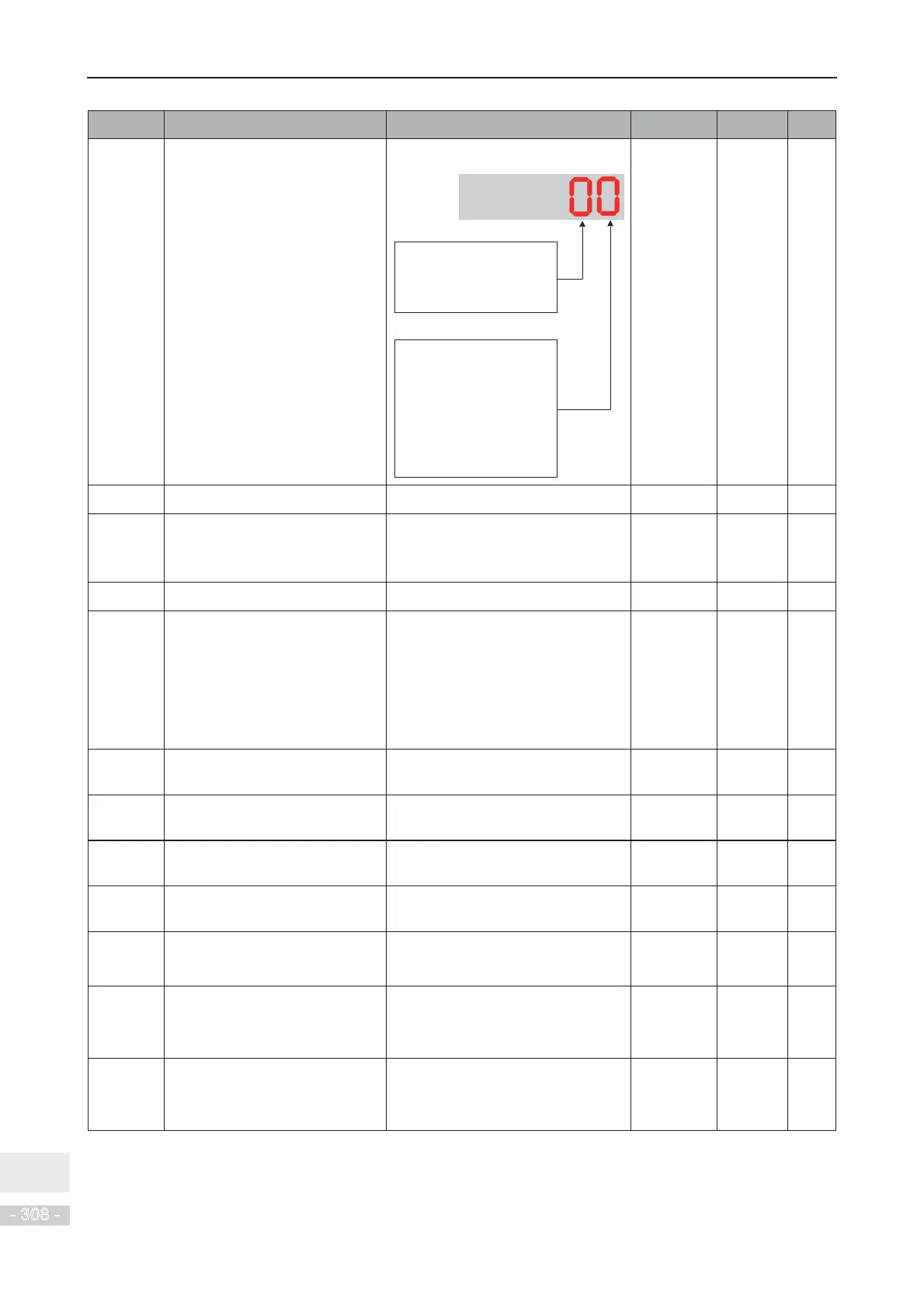

Para. No. Para. Name Setting Range Default Property Page
F0-07 Final Frequency reference
setting selection
00 to 34
Main and auxiliary calculation
relationship
0: Main + auxiliary
1: Main - auxiliary
2: Max. (main, auxiliary)
3: Min. (main, auxiliary)
Final frequency reference selection
0: Main frequency reference
1: Main and auxiliary calculation result
2: Switchover between main
frequency reference and auxiliary
frequency reference
3: Switchover between main
frequency reference and main and
auxiliary calculation result
4: Switchover between auxiliary
frequency reference and main and
auxiliary calculation result
00
ƿ
1
3
3
F0-08 Preset frequency 0.00 to max. frequency (F0-10) 50.00 Hz
ƿ
1
4
5
F0-09 Running direction 0: Run in the default direction
1: Run in the direction reverse to
the default direction
0
ƿ
2
0
2
F0-10 Max. frequency 50.00 to 500.00 Hz 50.00 Hz
ƾ
1
1
2
F0-11 Setting channel of frequency
upper limit
0: Set by F0-12
1: AI1
2: AI2
3: AI3
4: Pulse reference (DI5)
5: Communication reference
0
ƾ
1
3
5
F0-12 Frequency reference upper limit Frequency lower limit (F0-14) to
max. frequency (F0-10)
50.00 Hz
ƿ
1
3
5
F0-13 Frequency reference upper limit
offset
0.00 Hz to max. frequency (F0-10) 0.00 Hz
ƿ
-
F0-14 Frequency reference lower limit 0.00 Hz to frequency upper limit
(F0-12)
0.00 Hz
ƿ
1
3
5
F0-15 Carrier frequency Model dependent Model
dependent
ƿ
-
F0-16 Carrier frequency adjusted with
temperature
0: Disabled
1: Enabled
1
ƿ
-
F0-17 Acceleration time 1 0.00s to 650.00s (F0-19 = 2)
0.0s to 6500.0s (F0-19 = 1)
0s to 65000s (F0-19 = 0)
Model
dependent
ƿ
1
4
2
F0-18 Deceleration time 1 0.00s to 650.00s (F0-19 = 2)
0.0s to 6500.0s (F0-19 = 1)
0s to 65000s (F0-19 = 0)
Model
dependent
ƿ
1
4
2
