2. Mechanical Installation
- 33 -
2
2.4.3 Mounting in Cabinet
Models of MD29018.5G/22P to MD290T160G/200P support backplate mounting, through
hole mounting and mounting in cabinet. Models of MD290T200G(-L) to MD290T450G(-L) and
MD290T220P(-L) to MD290T500P(-L) support mounting in cabinet only.
Ƶ
Ventilation
Ventilation space must be considered when mounting drives of
MD290T132G/160P,
MD290T160G/200P,
MD290T200G(-L) to MD290T450G(-L) and MD290T220P(-L) to
MD290T500P(-L).

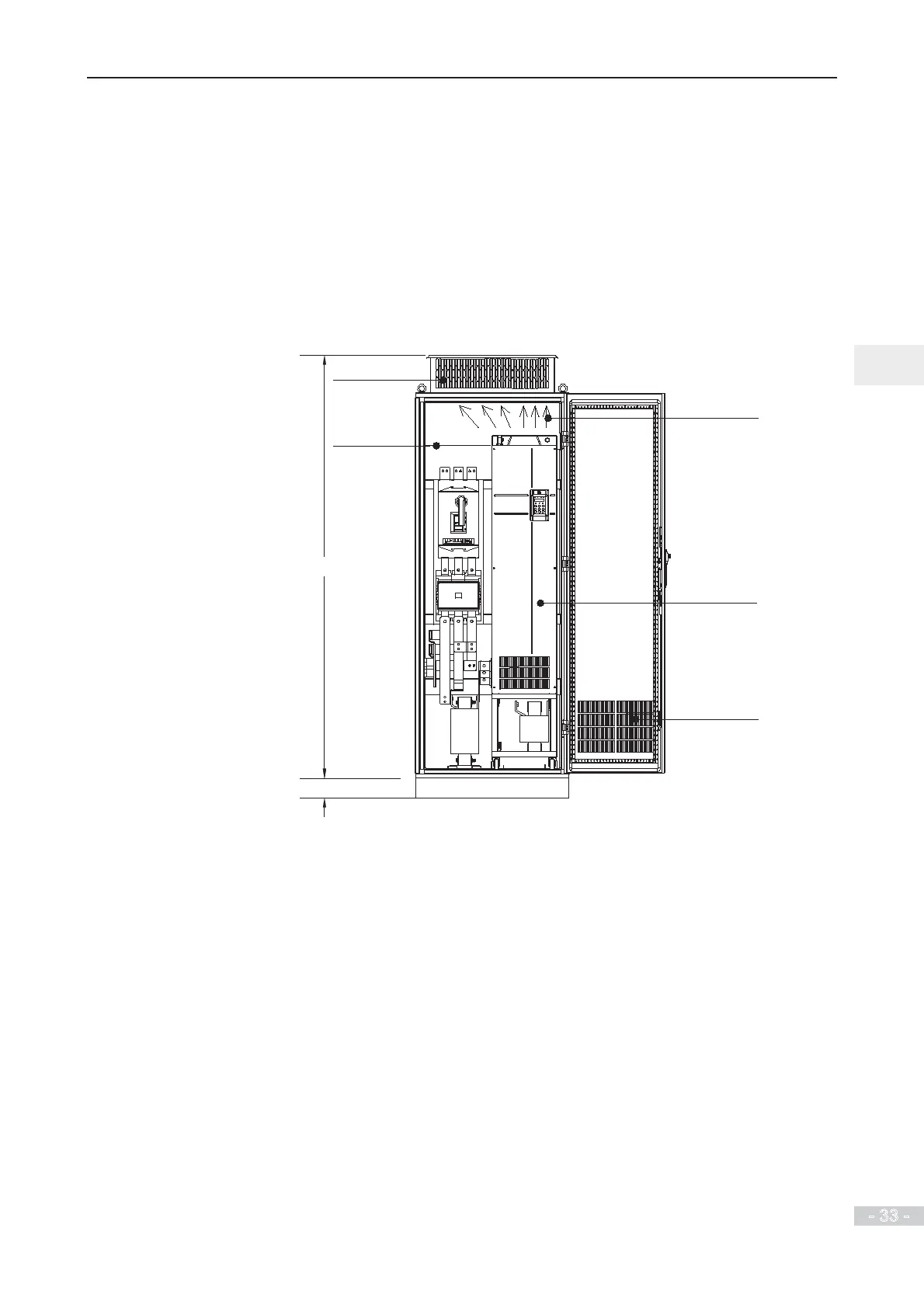

Figure 2-11 Cabinet without fan on the top
Air inlet of
front door
2200
100
MD290
Ventilation airflow
Cabinet top air
outlet cover
Isolation barrier
