Inovance MD290T45G/55P User Manual

2. Mechanical Installation
- 39 -
2
6WHS6HFXUHWKH¿[LQJEHDPDQGUHVHUYHPRXQWLQJKROHV

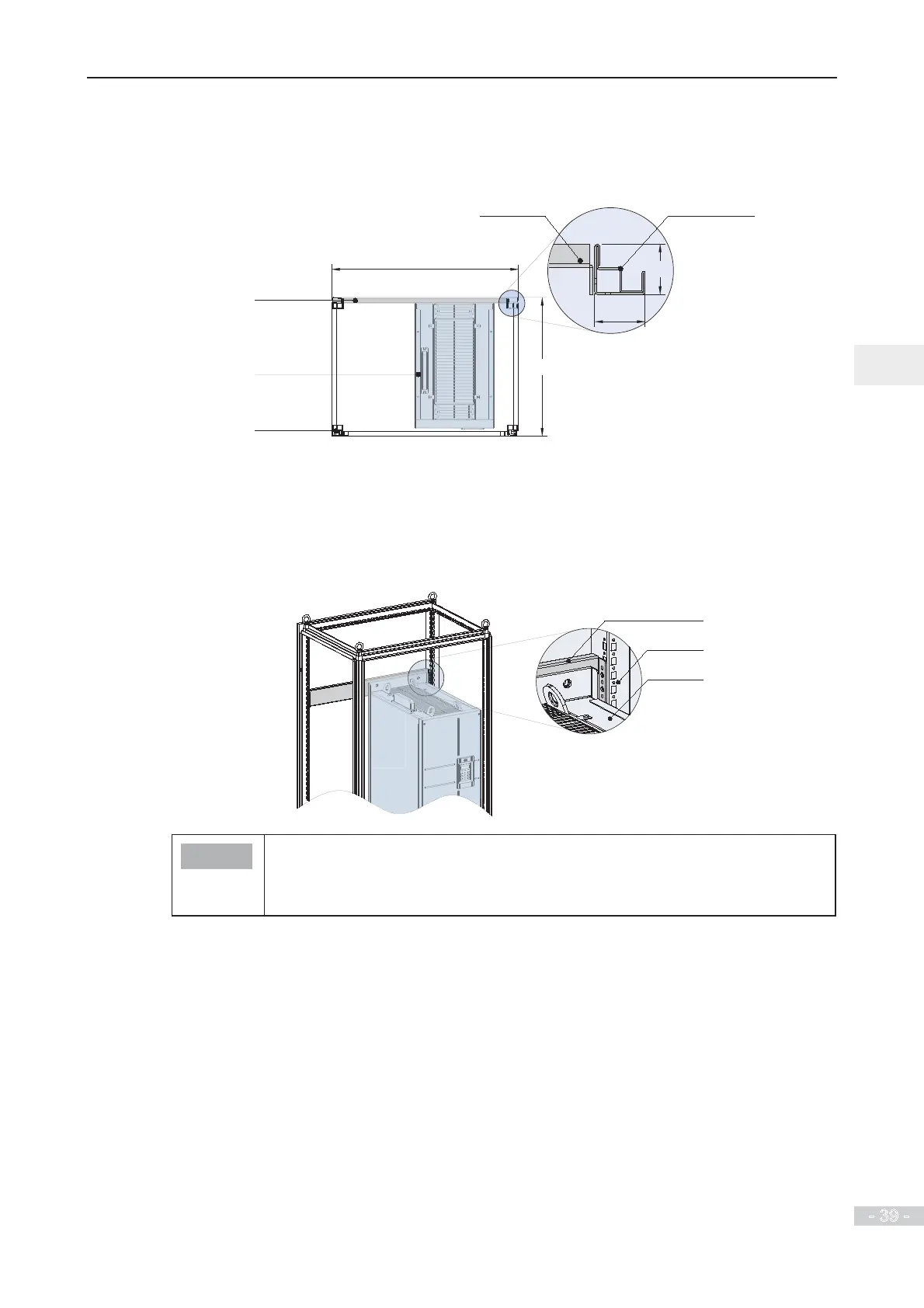

7KHFURVVVHFWLRQRIWKHQLQHIROGLQJ$/FDELQHWLVVKRZQLQWKHIROORZLQJ¿JXUH
Figure 2-15 Cross section of the nine-folding AL cabinet
MD290
Fixing beam
Nine-folding
AL cabinet
Nine-folding AL
Fixing beam
Front door
800 mm
600 mm
43.5 mm
43.5 mm
When the drive of MD290T250G(-L) to MD290T450G(-L) and MD290T315P(-L) to
0'73/LVPRXQWHGLQWKHQLQHIROGLQJ$/FDELQHWRIPPGHHSWKH¿[LQJEHDP
must fold inwards. When the drive is mounted in the cabinet of 800 mm deep, folding inwards is
not required.
)LJXUH)ROGLQJLQZDUGVRIWKH¿[LQJEHDPLQWKHFDELQHWRIPPGHHS
Nine-folding
MD290
Fixing beam
Note
If the cabinet has front door and back door, the cabinet of 600 mm deep is too
small to accommodate the drive of MD290T250G(-L) to MD290T450G(-L) and
MD290T315P(-L) to MD290T500P(-L). In this case, the cabinet of 800 mm deep is
recommended.
