2. Mechanical Installation
- 44 -
2
5HPRYHDQG5H¿WWKH)URQW&RYHU
You must remove the front cover before performing electrical installation
WARNING
Ɣ
Ensure the drive power-off time exceeds 10 minutes before removing the cover.
Ɣ
Be careful when removing the front cover. A falling cover may cause damage to the
drive or personal injury.
Ƶ
5HPRYHDQG5H¿WWKH)URQW&RYHURID3ODVWLF+RXVLQJ

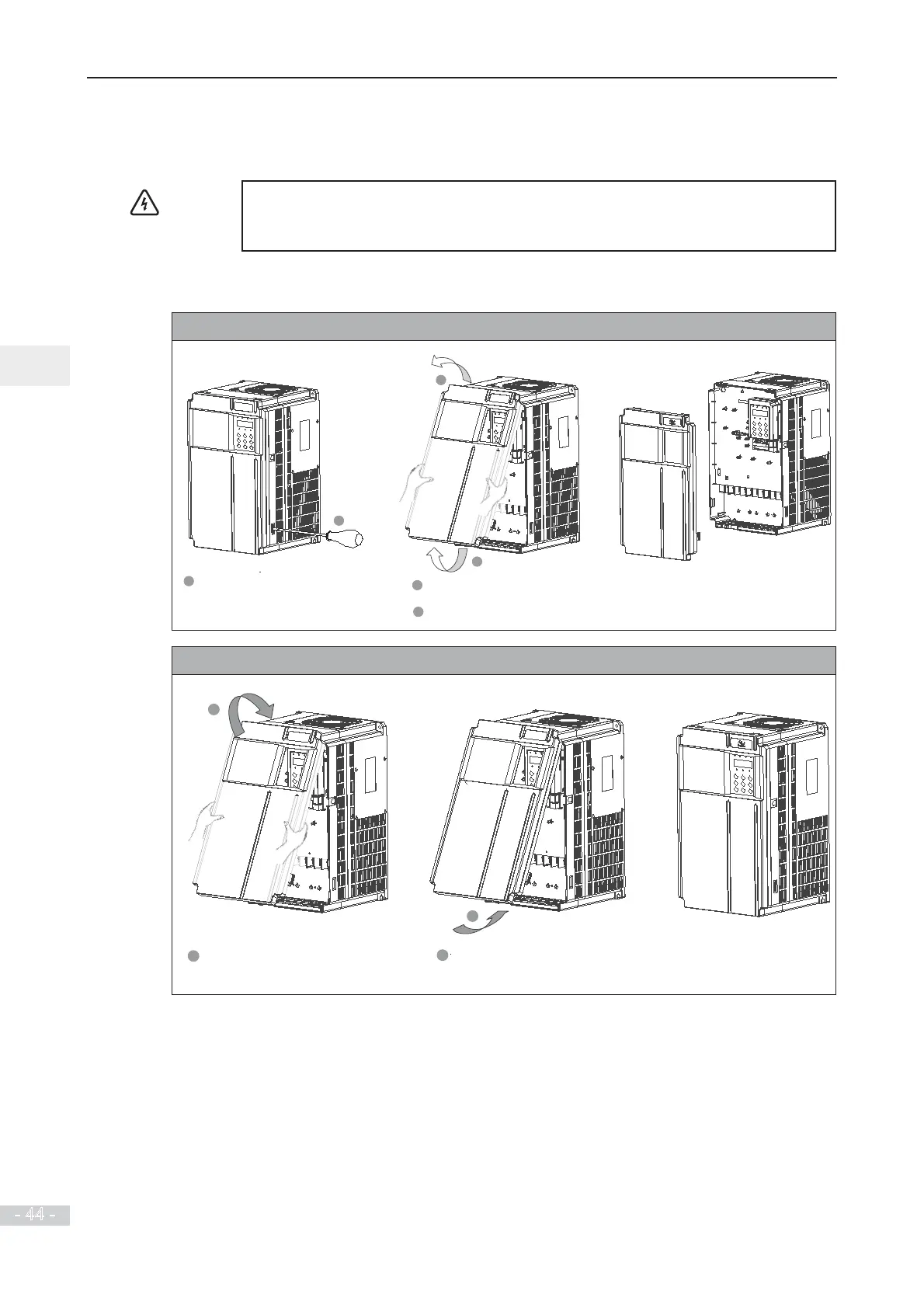

Removal
Pinch inwards on the latch
on both sides of the cover to
release the cover .
1
3
2
Hold the lower part of the front cover.
3
Lift the front cover.
1
2
5H¿WWLQJ
1
1
Locate the cover top at its fixing position.
2
Align the front cover to the drive and
push it down in the arrow direction
until the side latches are in place.
2
