3. Electrical Installation
- 65 -
3

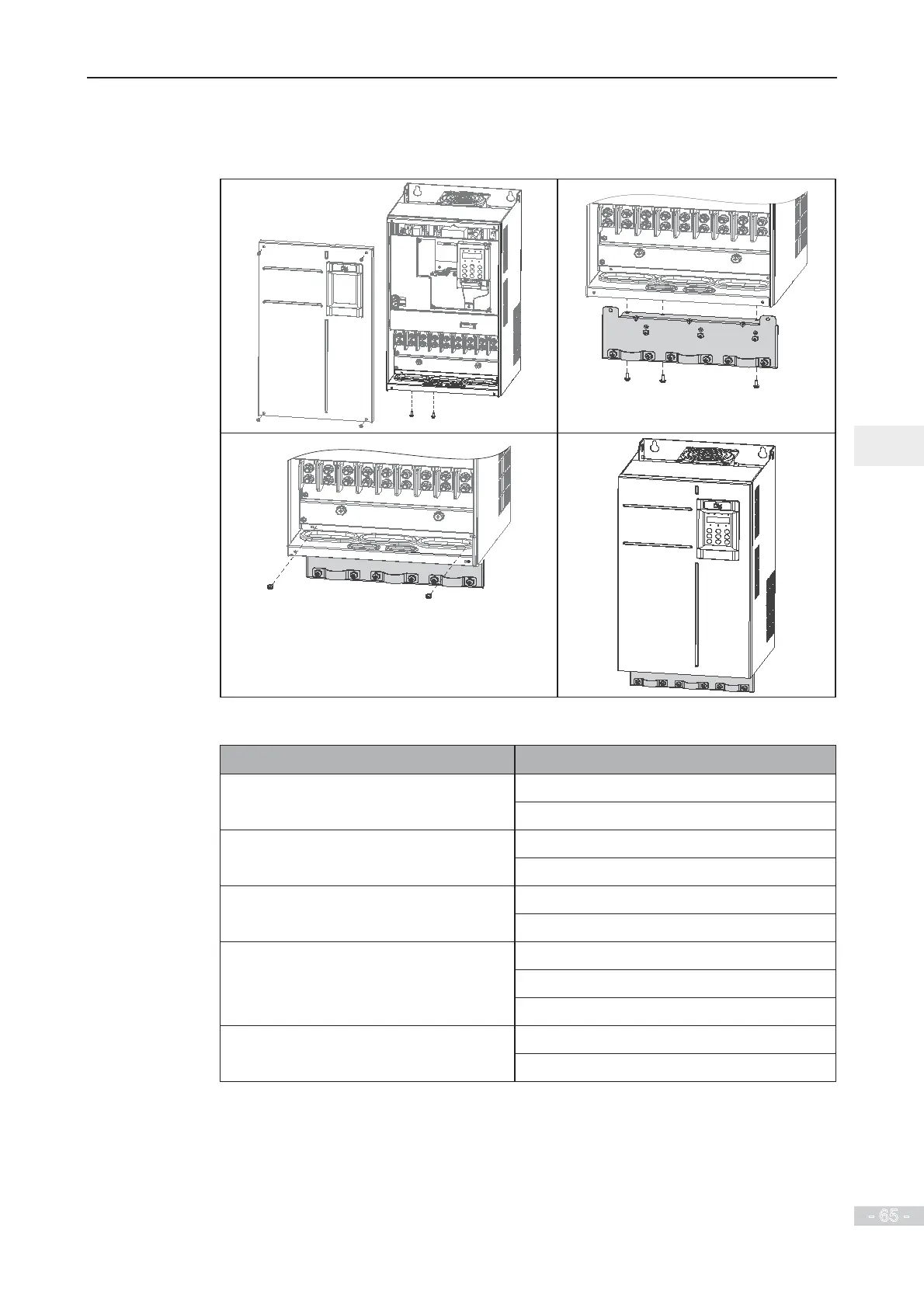

The Cable Support Bracket is an optional accessory which provides mechanical support
for input, output and dynamic brake cables and which also provides grounding clamps for
the screen/shield of the cables. Installation of the bracket is shown below.
Table 3-13 Cable support bracket models
Cable Support Bracket Model
Applicable Drive Model
MD500-AZJ-A2T5 MD290T18.5G/22P
MD290T22G/30P
MD500-AZJ-A2T6 MD290T30G/37P
MD290T37G/45P
MD500-AZJ-A2T7 MD290T45G/55P
MD290T55G/75P
MD500-AZJ-A2T8 MD290T75G/90P
MD290T90G/110P
MD290T110G/132P
MD500-AZJ-A2T9 MD290T132G/160P
MD290T160G/200P
