Inovance MD290T45G/55P User Manual

4. Operating Panel (Keypad & Display)
- 84 -
4
4.2.1 LED Operating Panel Menu Structure
The drive operating panel has three levels of menu:
1. Level I - function parameter group
2. Level II - function parameter
3. Level III - function parameter value

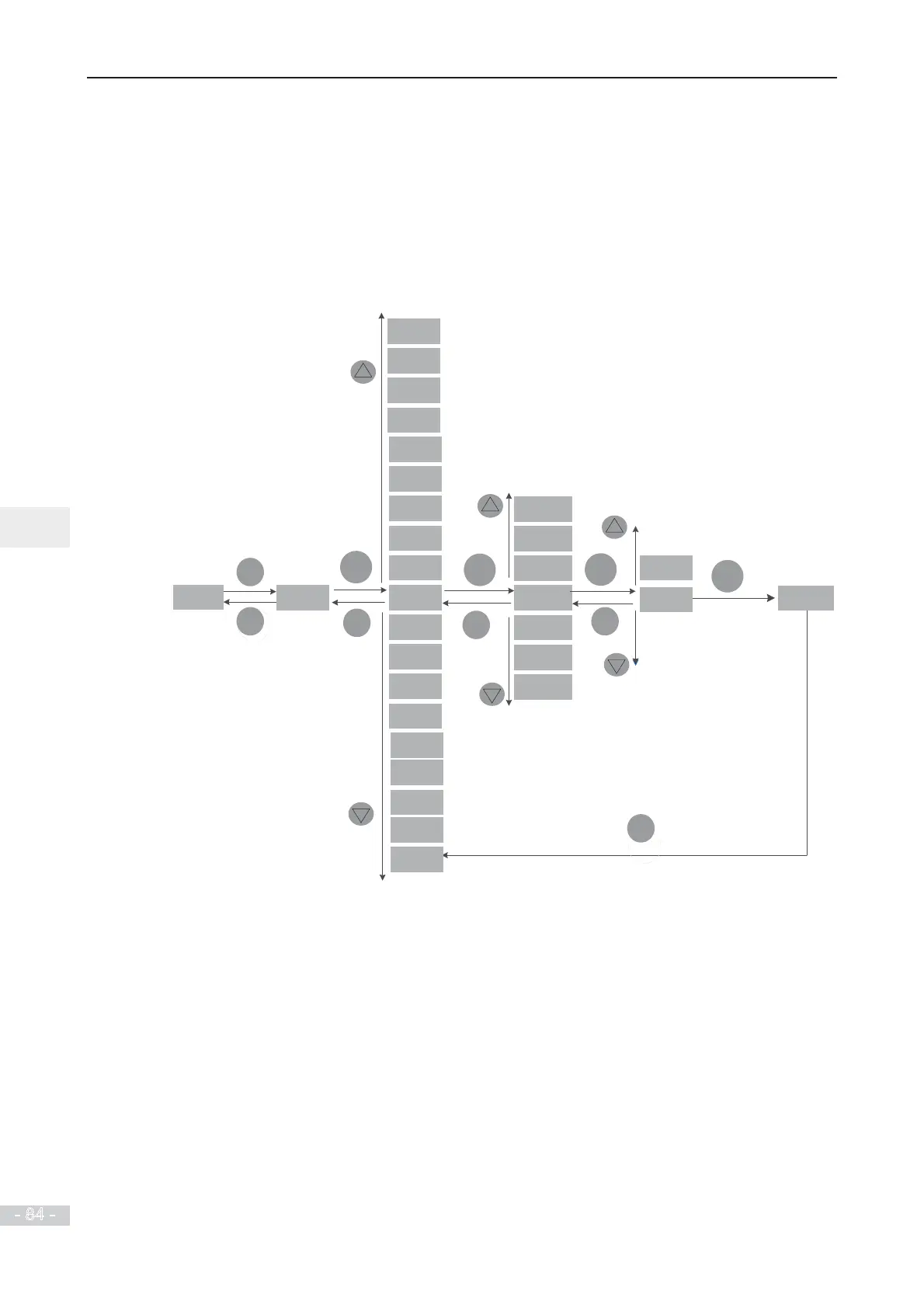

Figure 4-3 Structure of three levels of menu
50.00
F0
F0
F1
FP
.
.
.
A0
A1
U1
U0
.
.
.
FP
A1
.
.
.
F0
F1
F0 00
F0 01
F0 28
.
.
.
F0 00
F0 28
.
.
.
1
2
F0 01
ENTER
PRG
PRG
PRG
PRG
PRG
ENTER
ENTER
ENTER
PRG
A5
U0
U1
.
.
.
A0
