Inovance MD290T45G/55P User Manual

4. Operating Panel (Keypad & Display)
- 83 -
4
Ƶ
Unit Indicators
There are three red unit indicators below the data display. These indicators operate individually
or in pairs to show the units used to display data, as shown in Figure 4-2.

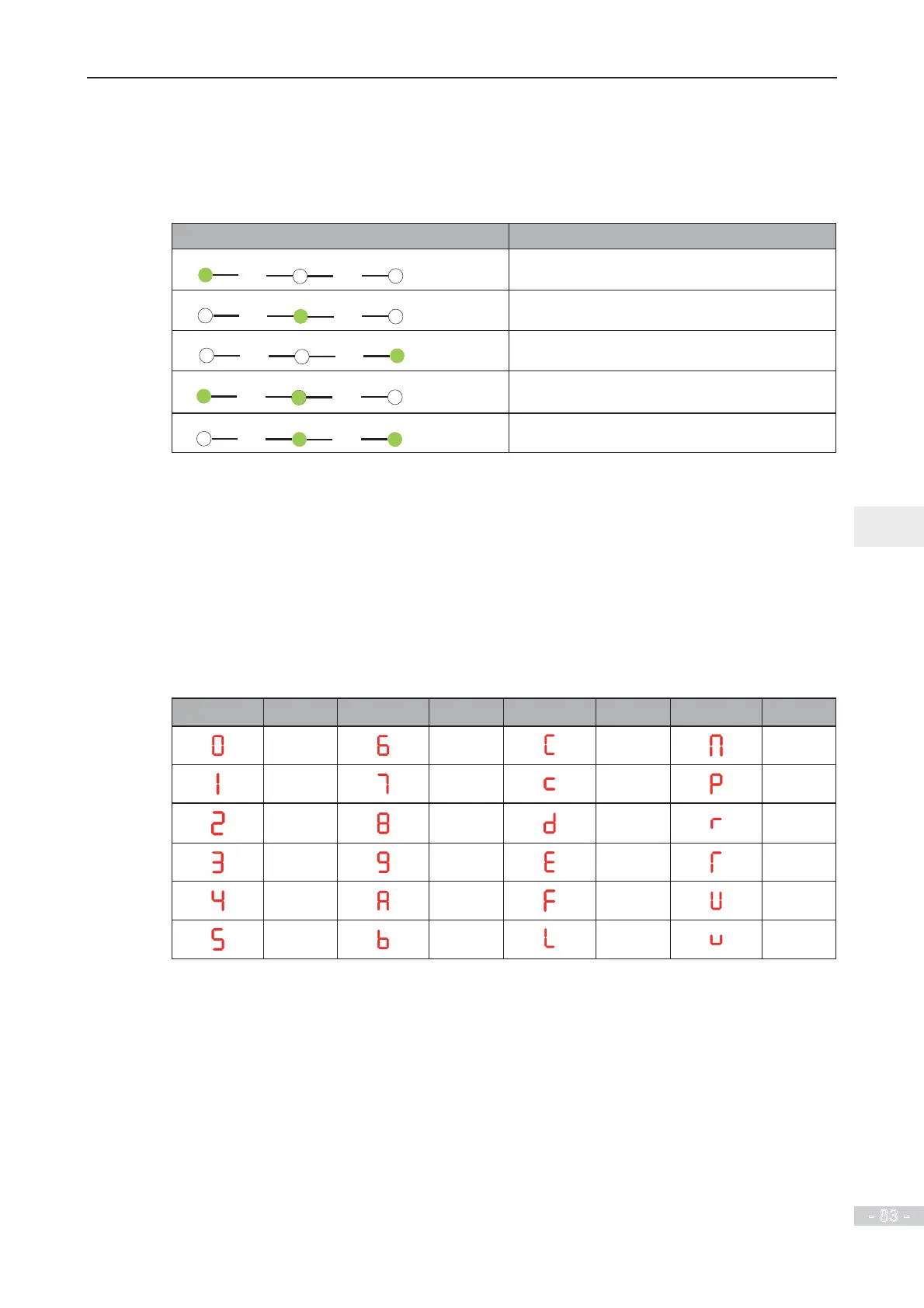

Figure 4-2 Unit indicator explanation
Indicator appearance Meaning
RPM
%
AVHz
Hz for frequency
RPM
%
AVHz
A for current
RPM
%
AVHz
V for voltage
RPM
%
AVHz
RPM for motor speed
RPM
%
AVHz
Percentage
Ƶ
LED Display
7KH¿YHGLJLW/('GDWDGLVSOD\FDQVKRZWKHIROORZLQJUDQJHRILQIRUPDWLRQ
Ɣ Frequency reference
Ɣ Output frequency
Ɣ
Monitoring information
Ɣ
Fault code
The following table lists indication of LED display.
LED Display Indication LED Display Indication LED Display Indication LED Display Indication
0 6 C N
1 7 c P
2 8 D R
3 9 E T
4 A F U
5, S B L u
