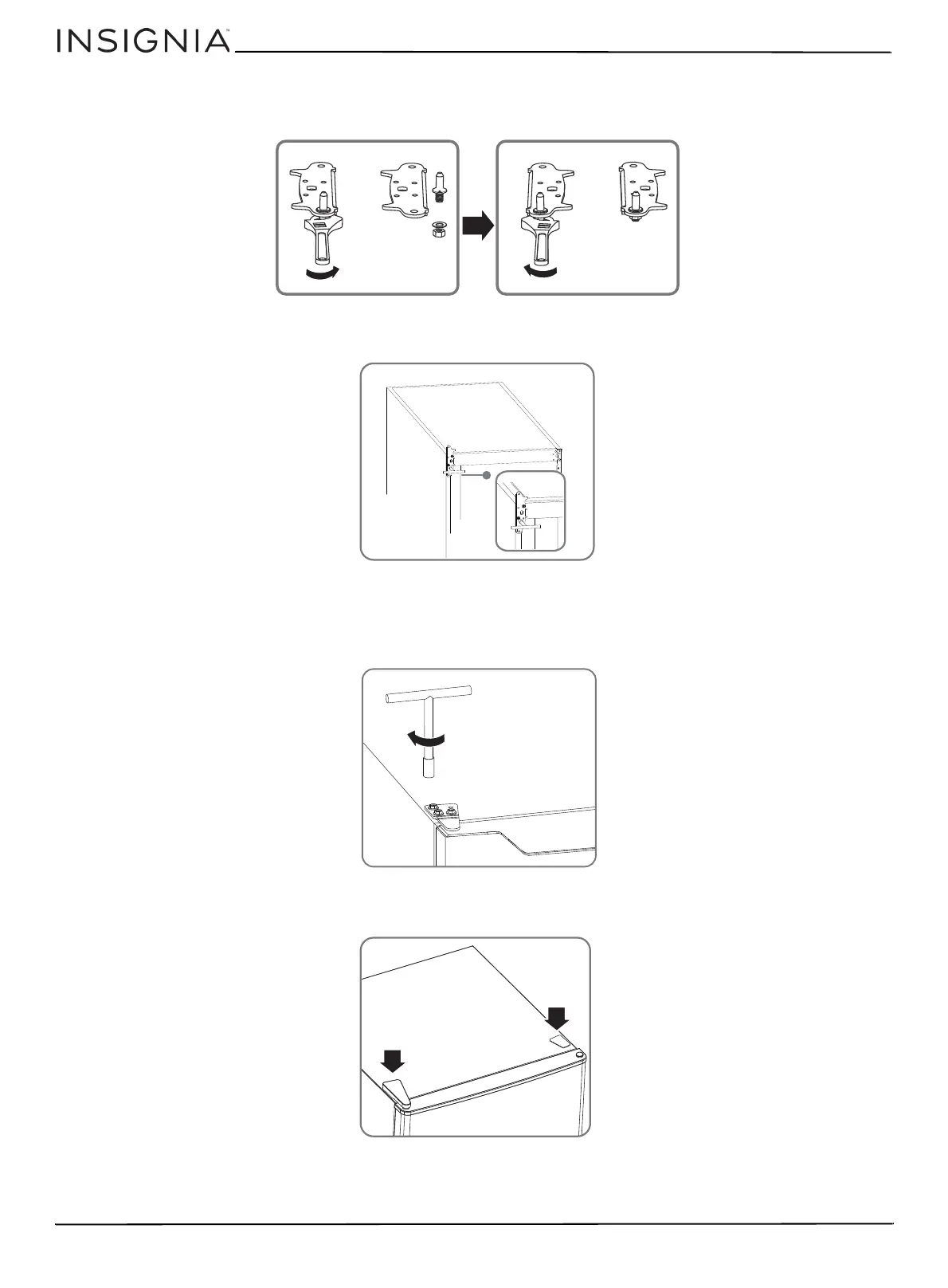

11 Remove the bottom hinge pin from the bottom hinge bracket, rotate the hinge bracket 180 degrees clockwise, and
replace the bottom hinge pin into the bottom hinge bracket. (Tool needed: D)
12 Install the bottom hinge bracket on the left bottom of your freezer, then replace both leveling feet. Do not fully tighten
the bottom hinge bracket at this time. (Tool needed: A or C)
13 Replace the freezer door onto the bottom hinge pin and align it vertically and horizontally so that the gaskets make a
good seal all around the door.
14 Install the upper hinge bracket with the upper hinge pin inserted into the hole in the top of the door. Tighten the
screws so that the door is secure. (Tool needed: C)
15 Replace the top hinge cover onto the left side of your freezer, then replace the top screw hole cover onto the top right
side.
16 With the door closed, make sure that door is aligned horizontally and vertically with the freezer cabinet and that the
gasket makes a good seal. When everything is in proper alignment, tighten the bottom hinge bracket.
17 Readjust the leveling feet as necessary.
