Inspire M1 - Page 19

1 – Floating Pulley Bracket
1 – 3 ½” Pulley
1 – Cable Adapter
1 – 2” Hex Bolt
2 – 3/8” Flat Washers
1 – 3/8” Lock Nut
Pulley 16
Pulley Plate
Pulley 15
2 – Floating Pulley Plates
2 – 3 ½” Pulleys Pulley Plate
2 – 1 3/4” Hex Bolts
4 – 3/8” Flat Washers
2 – 3/8” Lock Nuts
Pulley 17
1 – 5” Hex Bolt Pulley 11
3 – 3/8” Flat Washers
1 – 3/8” Lock Nut

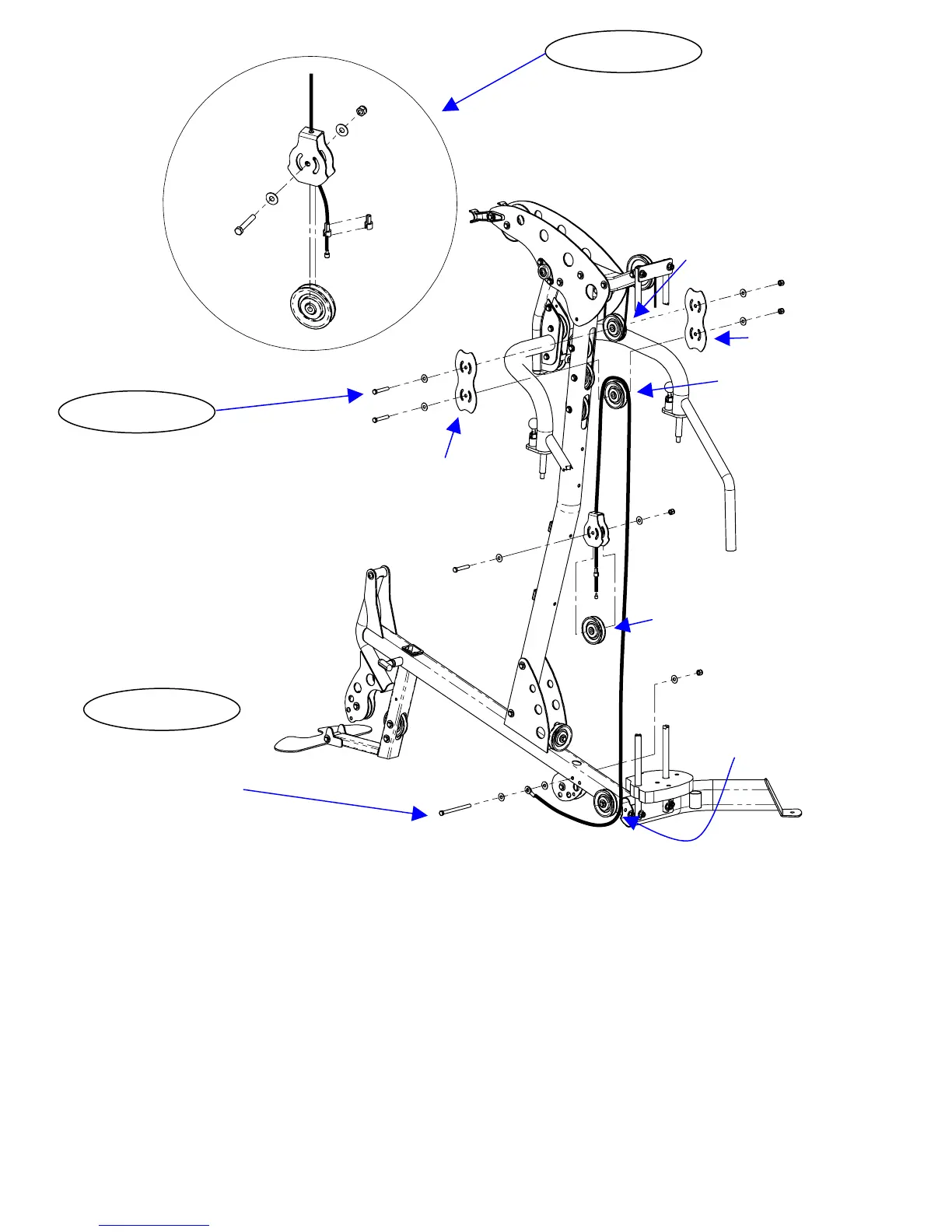

Step 18: Attach the Middle Cable to the Main Base using: One (5” Hex Bolt)
Finger Tighten Only Three (3/8” Flat Washers)
One (3/8” Lock Nut)
Step 19: Assemble the Pulley Plates using: Two (Floating Pulley Plates)
Wrench Tighten Now Two (3 ½” Pulleys)
Two (1 3/4” Hex Bolts)
Four (3/8” Flat Washers)
Two (3/8” Lock Nuts)
Step 20: Attach Middle Cable to Floating Pulley Bracket using: One (Cable Adapter)
Wrench Tighten Now One (3 ½” Pulley)
One (2” Hex Bolt)
Two (3/8” Flat Washers)
Page 16 One (3/8” Lock Nut)
STEP 18
STEP 19
STEP 20
