Inspire M1 User Manual

1 – Plastic Ball
1 – Cable “U” Bracket
1 – 1 ¼ “ Shoulder Bolt
1 – Spring Clip
1 – 5/16” Lock Nut
1 – Plastic Ball
1 – Cable “U” Bracket
1 – 1 ¼ “ Shoulder Bolt
1 – Spring Clip
1 – 5/16” Lock Nut
Route Lower Cable
Pulley 10
Cable Retainer Pin

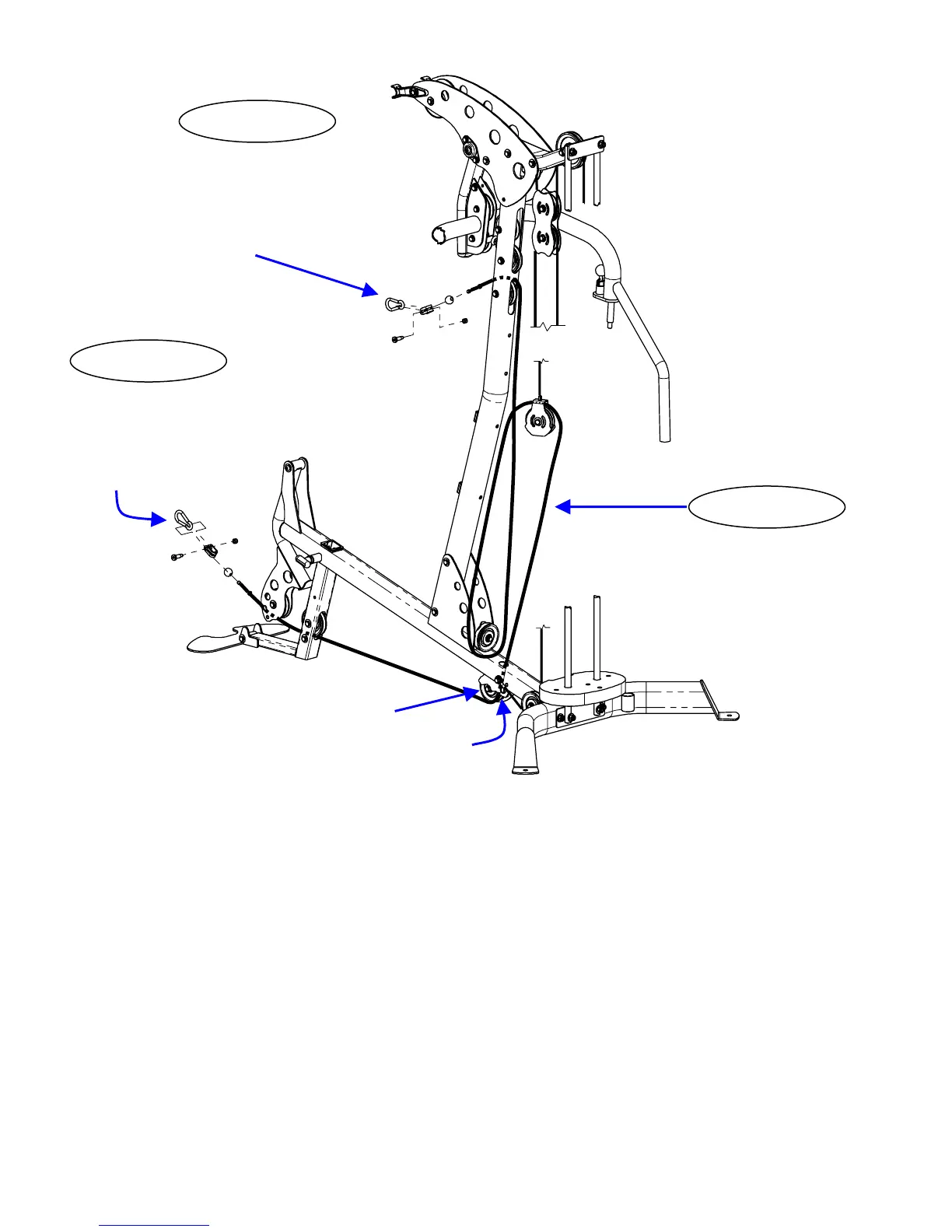

Step 21: Assemble Cable End as done
in step 17 using: One (Plastic Ball)
Wrench Tighten Now One (Cable “U” Bracket)
One (1 ¼” Shoulder Bolt)
One (Spring Clip)
One (5/16” Lock Nut)
Step 22: Route Lower Cable from top to bottom.
NOTE: Make sure cable is routed between pulley 10 and cable retainer pin.
Step 23: Assemble Cable End as done
in step 17 using: One (Plastic Ball)
Wrench Tighten Now One (Cable “U” Bracket)
One (1 ¼” Shoulder Bolt)
One (Spring Clip)
One (5/16” Lock Nut)
Page 17
STEP 21
STEP 23
STEP 22
