INSTEON wall switch - Power Management and Wire Identification

6

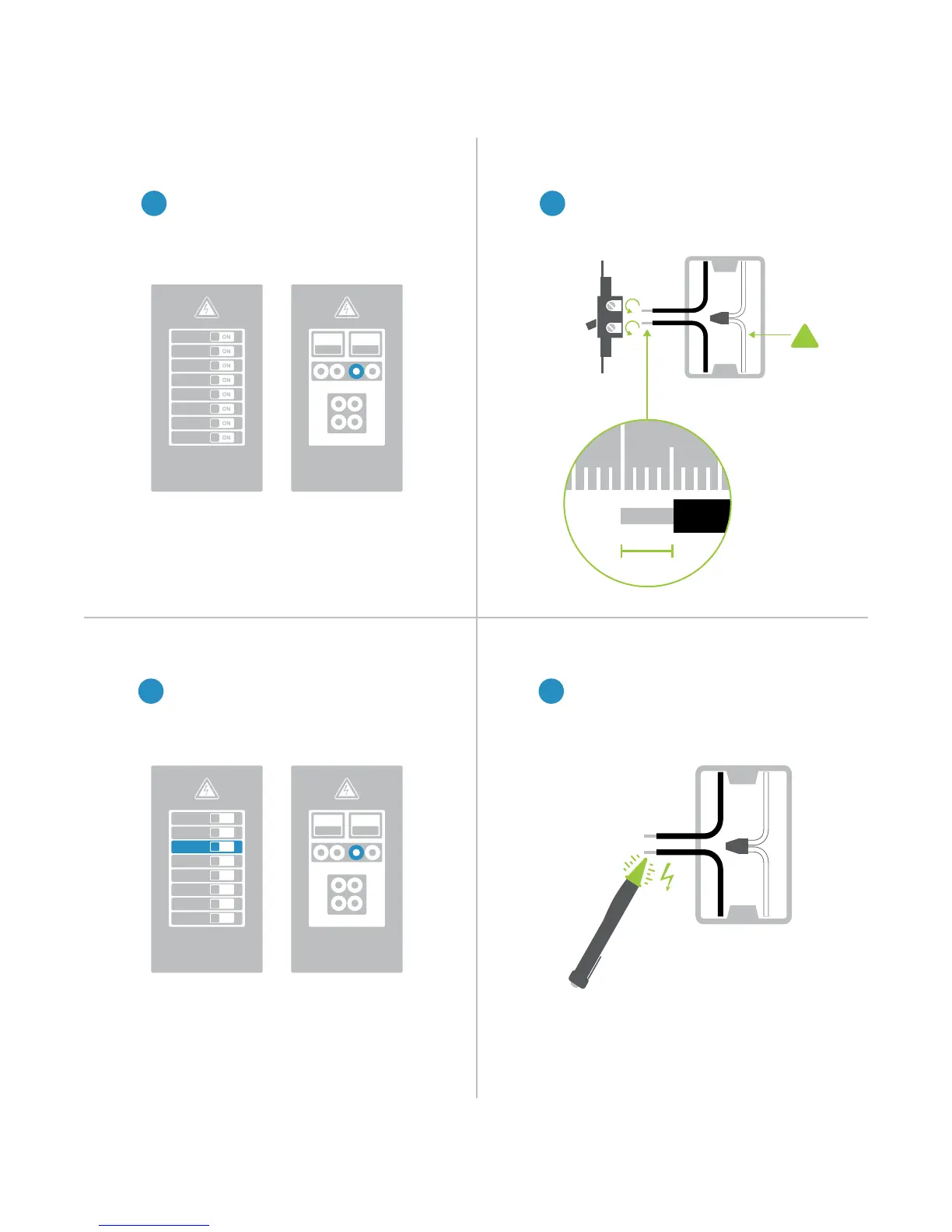

Identify Line and LoadReconnect Power
Disconnect Power Remove the Old Switch
Installation
Turn o power to your switch at the
electrical service panel.
Remove the old switch and disconnect
the wires. If your box lacks neutral
wires, stop and contact support.
Use a voltage detector or multi-meter
to identify line and load. Line will be
energized.
Turn on power at the circuit breaker.
1 2
43
ON
ON
ON
ON
ON
ON
ON
ON
ON ON
ON ON
Circuit Breakers
Circuit Breakers
Fuse Panel
Fuse Panel
or
or
Neutral
Wire
½”
12mm
1 2
!
