INSTEON wall switch - Wiring and Mounting the Switch

7
Reconnect PowerInstall the Switch

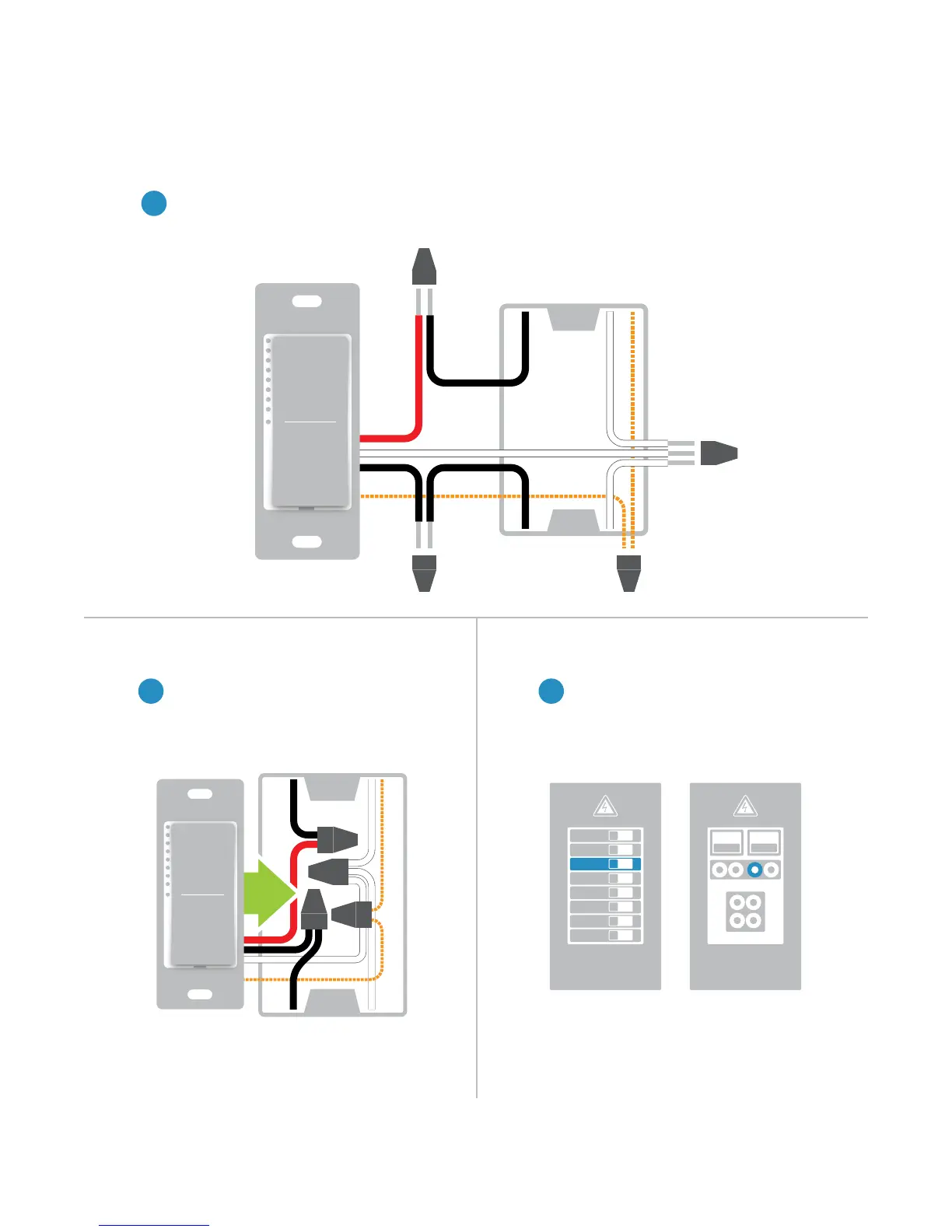

Wire-In The Switch
Installation
Turn o power at the circuit breaker. Connect the Wall Switch wires to the identied wires in the junction
box. Verify that the wire nuts are secure and that no exposed copper wire is visible except for the bare
ground wire. Additional wiring diagrams can be found in the Installation Diagrams section.
Turn power on to the switch at the circuit
breaker panel.
Mount the Wall Switch into the junction
box with the LED bar on the left.
5
76
ON
ON
ON
ON
ON
ON
ON
ON
ON ON
Circuit Breakers Fuse Panel
or
Neutral
Line
Load
Ground
