Instron 5967 - Extra Wide Configuration; Extra Wide and Extra Height Configuration

Chapter: Requirements and Specifications
2-14 M10-16248-EN
Extra Wide Configuration
Table 2-6 on page 2-14 lists the dimensions for the extra wide configuration that differ
from the standard configuration. Figure 2-2 on page 2-14 shows the top plate of the extra
wide frame. Refer to Table 2-5 on page 2-11 and Figure 2-1 on page 2-13 for the
remaining dimensions.
Extra Wide and Extra Height Configuration
The dimensions of the extra height and extra wide configuration are the same as for the extra
wide model, except for those listed in Table 2-7 on page 2-15.

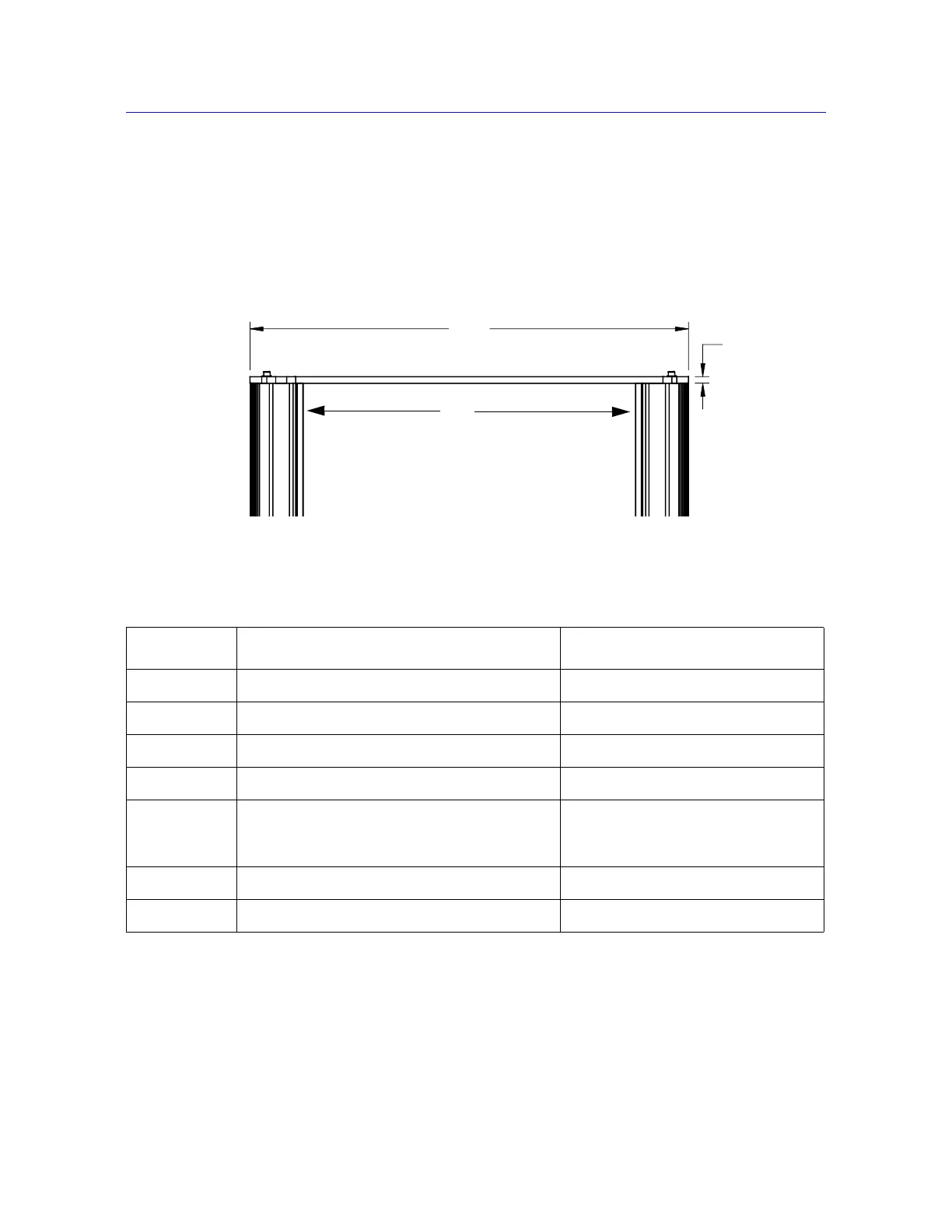

Figure 2-2. Extra Wide Dimensions
A
D
C
Table 2-6. 5967 Extra Wide Frame Dimensions
Designation Description Dimension - mm (inch)
A Across columns 1247 (49.1)
C Horizontal test daylight 946 (37.2)
D Top plate thickness 13 (0.5)
E Crosshead thickness 125 (4.9)
J1 Crosshead position
Minimum
Maximum
67 (2.63)
1197 (47.1)
N Overall height 1595 (62.8)
P Overall width 1278 (50.3)
