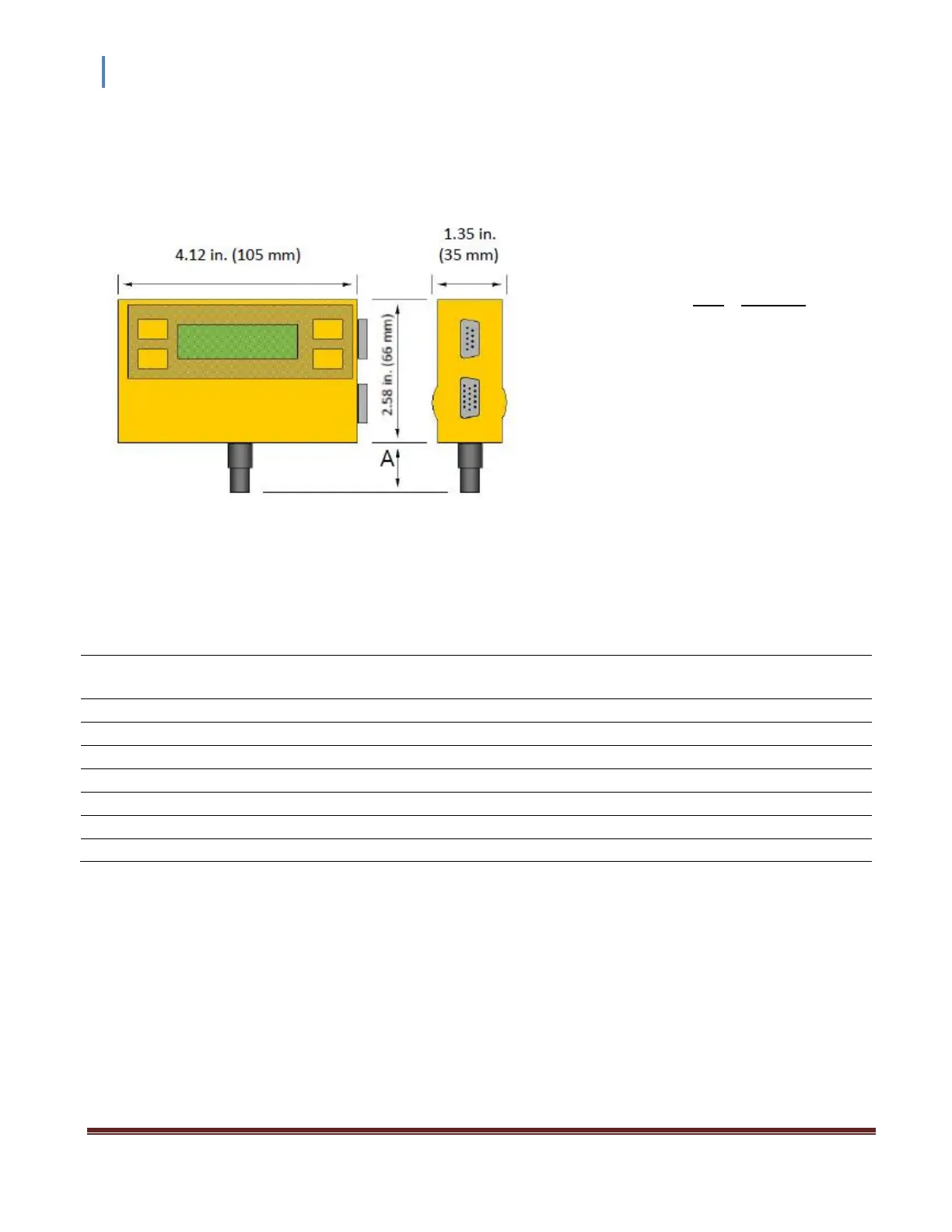

1.3 Dimensions
1.4 Part Numbers
CVM201 Fittings / Flanges Part Number
Combination 1/8 in. NPT male - 1/2 in. tube
(use 1/8 in. NPT male or 1/2 in. O.D. O-ring compression)
CVM201GAA
NW16KF
CVM201GBA
NW25KF
CVM201GCA
NW40KF
CVM201GDA
1 1/3 in. Mini-CF / NW16CF Mini-Conflat®
CVM201GEA
2 3/4 in. CF / NW35CF Conflat®
CVM201GFA
1/4 in. Cajon® 4VCR® female
CVM201GGA
1/2 in. Cajon® 8VCR® female
CVM201GHA
fitting
dimension A
1/8 in. NPT male - 1/2 in. tube
0.86 in. (21.8 mm)
NW16KF
1.16 in. (29.5 mm)
NW25KF
1.16 in. (29.5 mm)
NW40KF
1.16 in. (29.5 mm)
1 1/3 in. Mini-Conflat
®
1.34 in. (34.0 mm)
2 3/4 in. Conflat
®
1.34 in. (34.0 mm)
1/4 in. Cajon
®
4VCR
®
1.72 in. (43.7 mm)
1/2 in. Cajon
®
8VCR
®
1.61 in. (40.9 mm)
