19
4. Connect the Audio Component

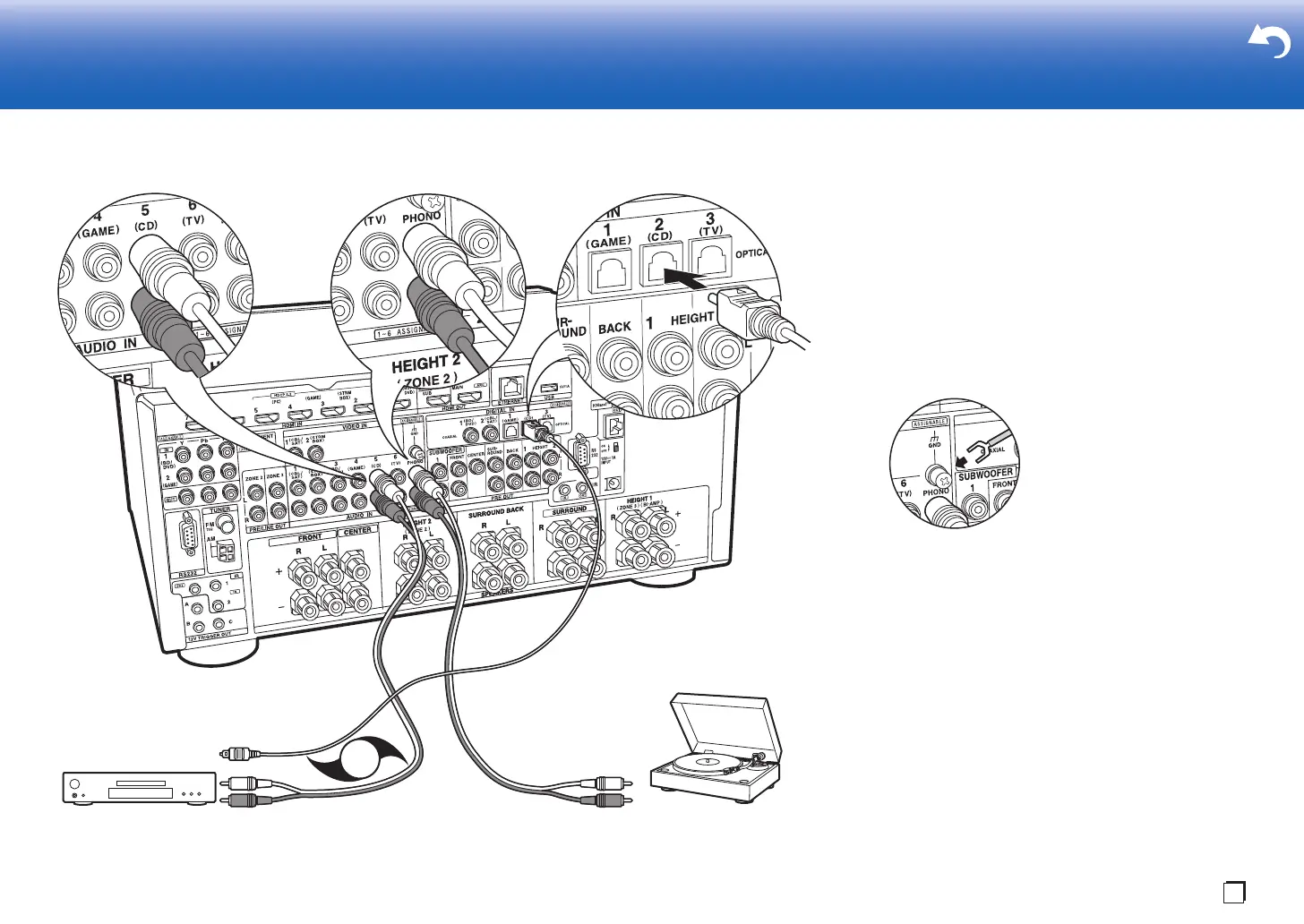

Example of a connection with an audio component.
Connect a CD player using a digital optical cable or analog
audio cable. You can also connect a turntable that has an
MM-type cartridge to the PHONO jack.
0 If the turntable has a built-in audio equalizer, connect it to
an AUDIO IN jack other than the PHONO jack. Further, if
the turntable uses an MC type cartridge, install an audio
equalizer compatible with the MC type cartridge between
the unit and the turntable, then connect to any AUDIO IN
jack other than the PHONO jack.
If the turntable has a ground wire,
connect it to the GND terminal of this unit.
> Before Start > Part Names >Install > Initial Setup > Playback > Advanced Manual
Troubleshooting | Supplementary Information, etc.
OR
a
b
CD
a Analog Audio Cable, b Digital Optical Cable
To Next Page
