Step2: Connect the Speakers
Standard Connections (Pages 8 to 11)

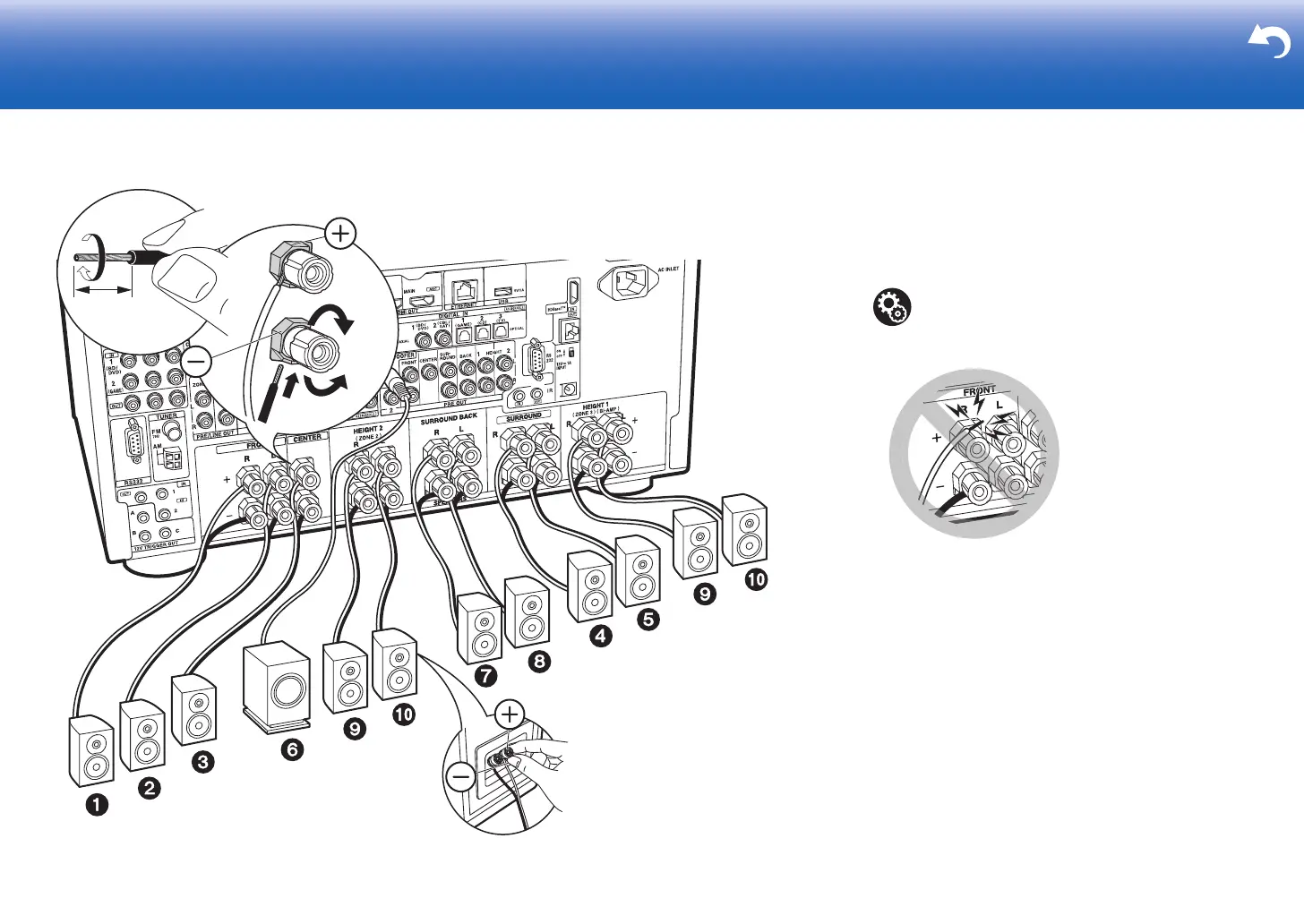

Refer to the illustration to connect the speaker system.
(*) Depending on the combination of speakers, you may need to
connect to other jacks. See "Points to note with speaker
combinations" (P13) for details.
Make sure the exposed speaker cables do not
stick out of the speaker terminals when
connecting. If the exposed wires of the
speakers touch the rear panel or the + and –
wires touch each other, the protection circuit
will be activated.
> Before Start > Part Names >Install > Initial Setup > Playback > Advanced Manual
Troubleshooting | Supplementary Information, etc.
a
b
3/8˝
(10 mm)
ᴧ
ᴧ
a Speaker Cable, b Subwoofer Cable
Setup
0 Settings for the speaker configuration you have
connected need to be made in "1. AccuEQ Room
Calibration" in Initial Setup (P25).
