Integra DTR-20.7 User Manual

En-3
1234 56 78 9FGH
IJ
LM NO P QK
(Australian models)

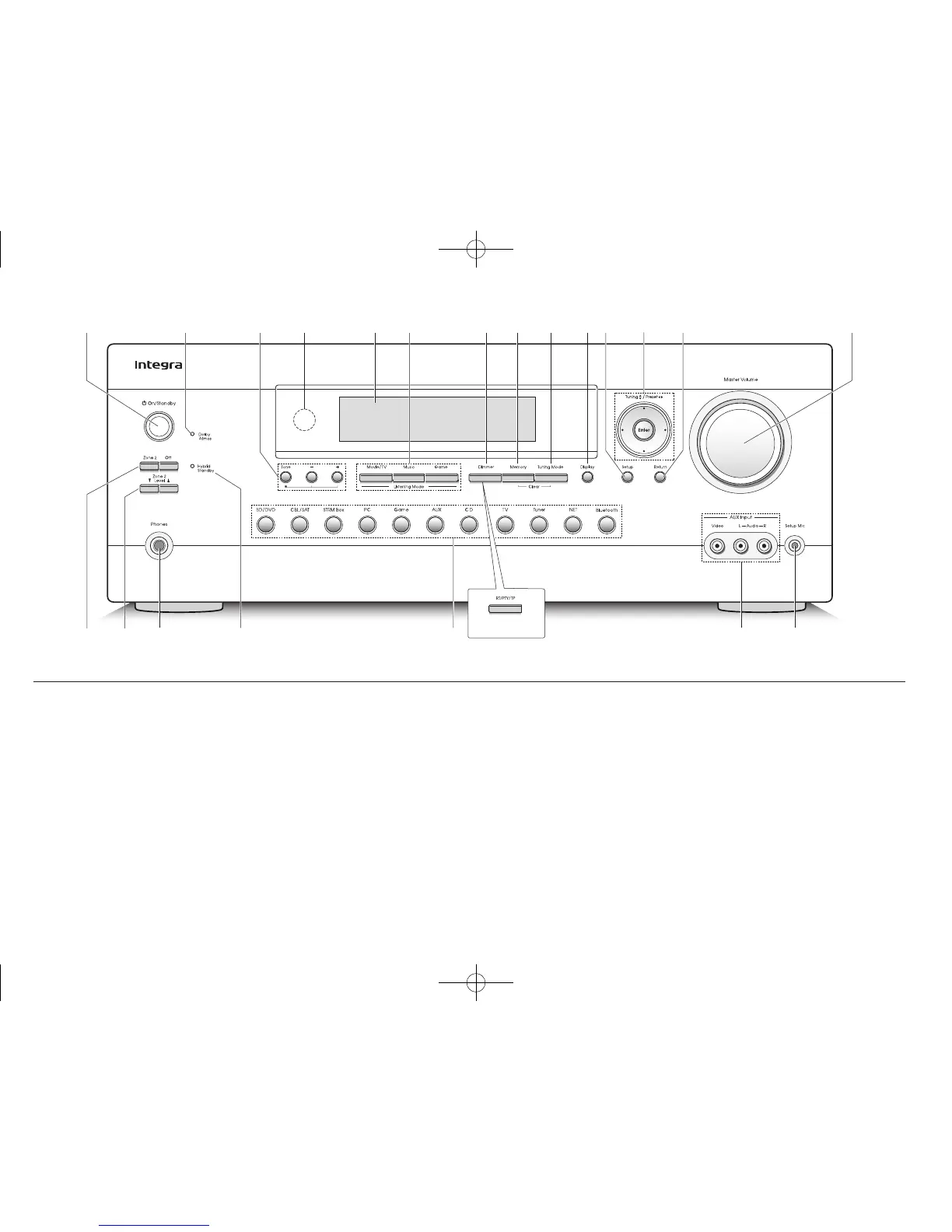

Front Panel
1 zOn/Standby button: Turns the unit on or into standby
mode.
2 Dolby Atmos indicator: Lights when playing Dolby
Atmos.
3 Tone and Tone Level buttons: Adjust the high tone
and low tone.
4 Remote control sensor: Receives signals from the
remote controller.
5 Display
6 Listening Mode buttons: Allow you to select the
listening mode.
7 Dimmer button (North American models): Switches
the brightness of the display.
RT/PTY/TP button (Australian models): Can be used
when receiving the station transmitting text information.
8 Memory button: Registers or deletes a station.
9 Tuning Mode button: Switches the tuning mode.
F Display button: Switches the information on the
display.
G Setup button: Used when making settings.
H Cursor buttons, Tuning
jl
button, Preset
d c
button and Enter button: Move the cursor and
confirms the selection. When listening to AM/FM
broadcasting, tune in to the station with Tuning
jl
or
select the registered station with Preset
d c
.
I Return button: Returns the display to the previous
state.
J Master Volume: Allows you to adjust the volume.
K Zone 2 button and Off button: Controls the multi-zone
function.
L Zone 2 Level  /  button: Allows you to adjust the
speaker volume of a separate room.
M Phones jack: Stereo headphones with a standard plug
are connected.
N Hybrid Standby indicator: Lights if the unit enters
standby mode when the HDMI Standby Through, USB
Power Out at Standby, Network Standby or Wakeup
from Bluetooth function is enabled.
O Input selector buttons: Switch the input to be played.
P AUX Input Audio/Video jack: A video camera or such
other device is connected.
Q Setup Mic jack: The supplied speaker setup
microphone is connected.
