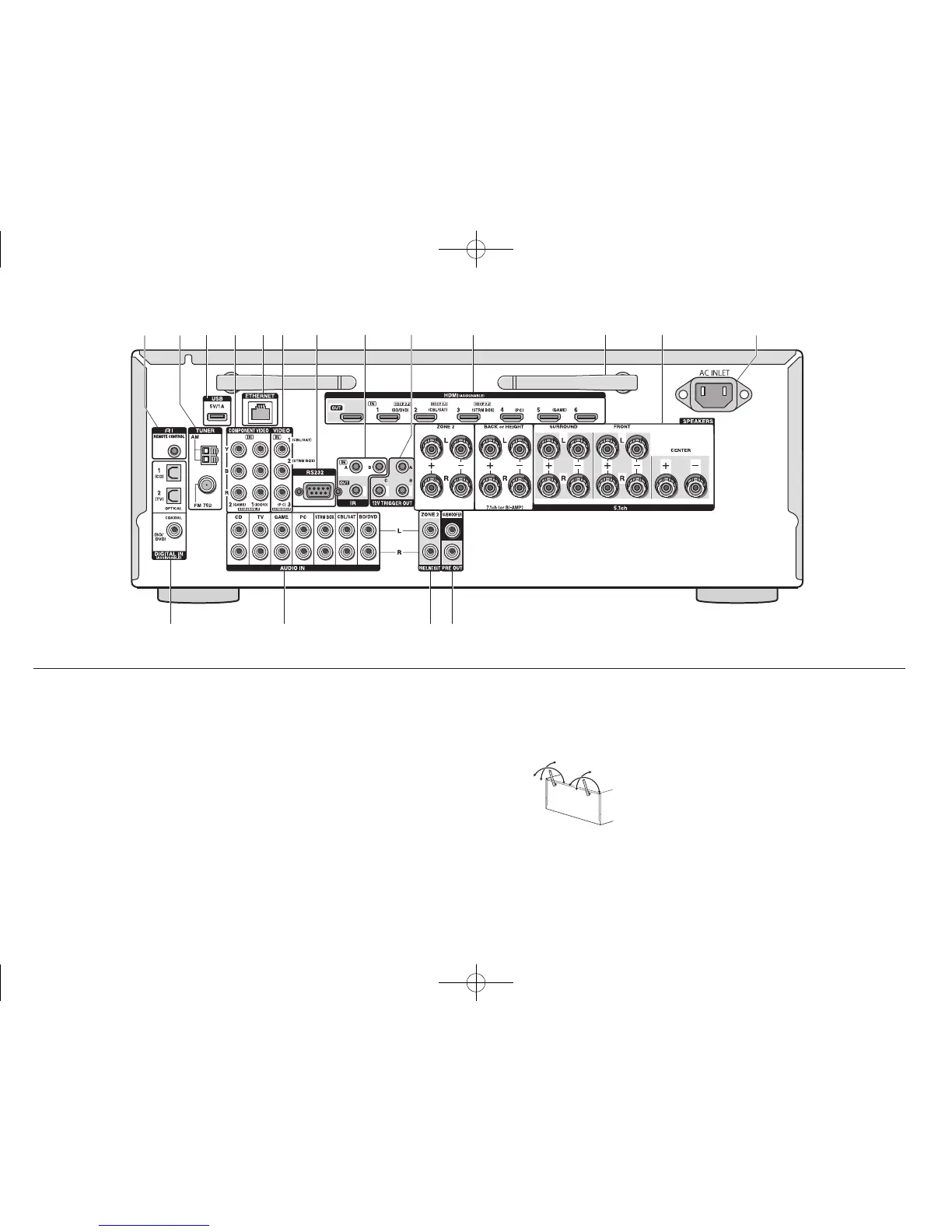

Rear Panel
1 RI REMOTE CONTROL jack: An Onkyo product with RI
jack can be connected and synchronized with this unit.
2 TUNER AM/FM (75Ω) terminal: The supplied antennas
are connected.
3 USB port: A USB storage device is connected so that
music files stored in it can be played. USB devices can
be supplied with power when connected with a USB
cable.
4 COMPONENT VIDEO IN jack: Component video input
jack
5 ETHERNET port: Used for LAN connection
6 VIDEO IN jacks: Composite video signals are input.
7 RS232 port: Connected to the home control system.
()
8 IR IN A/B, IR OUT jack: Connected to the multiroom
remote control kit. ()
9 12V TRIGGER OUT A/B/C jacks: Allows you to connect
a device with trigger input jack to enable power link
operation between the device and the unit. ()
¼ Special devices or cable connections are necessary to use the
control functions 7 to 9. Contact the specialized stores for more
information.
F HDMI IN/OUT jacks: Digital video signals and audio
signals are transmitted between the unit and the
connected devices.
G Wireless antenna: Used for Wi-Fi connection or when
using a Bluetooth-enabled device.
Adjust their angles according to the
connection status.
H SPEAKERS terminals: Speakers
are connected. To use the Multi-zone
function, connect the speakers in the
separate room to the ZONE2 speaker
terminals.
I AC INLET: The supplied power cord is connected.
J DIGITAL IN COAXIAL/OPTICAL jacks: Digital audio
signals are input.
K AUDIO IN jacks: Analog audio signals are input.
L PRE/LINE OUT ZONE 2 jack: Audio output jack
connected to the power amplifier and pre-main amplifier
for multi-zone playback in a separate room.
M PRE OUT SUBWOOFER jack: A subwoofer with built-in
amplifier is connected.
90°
180°
