REF. NO. PART NO. DESCRIPTION
33 27100408 Chassis
34 27130870 Bracket, power transformer
35 27190965 Holder
36 27190693A KGLS-6RF,Holder
37 27190266 KGLS-12RF,Holder
39 830440089 4TTC+8C(BC),Self-tapping screw
40 838130088 3TTB+8B,Self-tapping screw
41 28141484 Cushion
42 27141797 Retainer, fan
43 838450108 5TTB+10B(BC),Self-tapping screw
44 27150470 Shield plate, fan
45 880016 P3035B,Plastic rivet
46 29362609 Label PT
47 27150471 Shield plate, amplifier
62 28184817 Top cover
63 29362959 Label
65 838430088 3TTB+8B(BC),Self-tapping screw
67 27175319B Leg
68 28141332 Cushion
69 831430088 3TTW+8B(BC),Self-tapping screw
86 260208 Wire tie
E821 24502310 D09T-24PG10(EX),Fan
F6901,F6902 252199 10A-UL,Fuse
T901 2301536 NPT-1421D,Power transformer
U8 1A906534-1T NAPS-7234-1T,Rectifier circuit PC board ass'y
65
63
65
62
8
34
45
47
4
F6901
F6902
39
T901
40
E821
42
45
37
86
37
36
35
36
69
68
67
33
41
U8
43
69
68
67
44
DTR-7.2

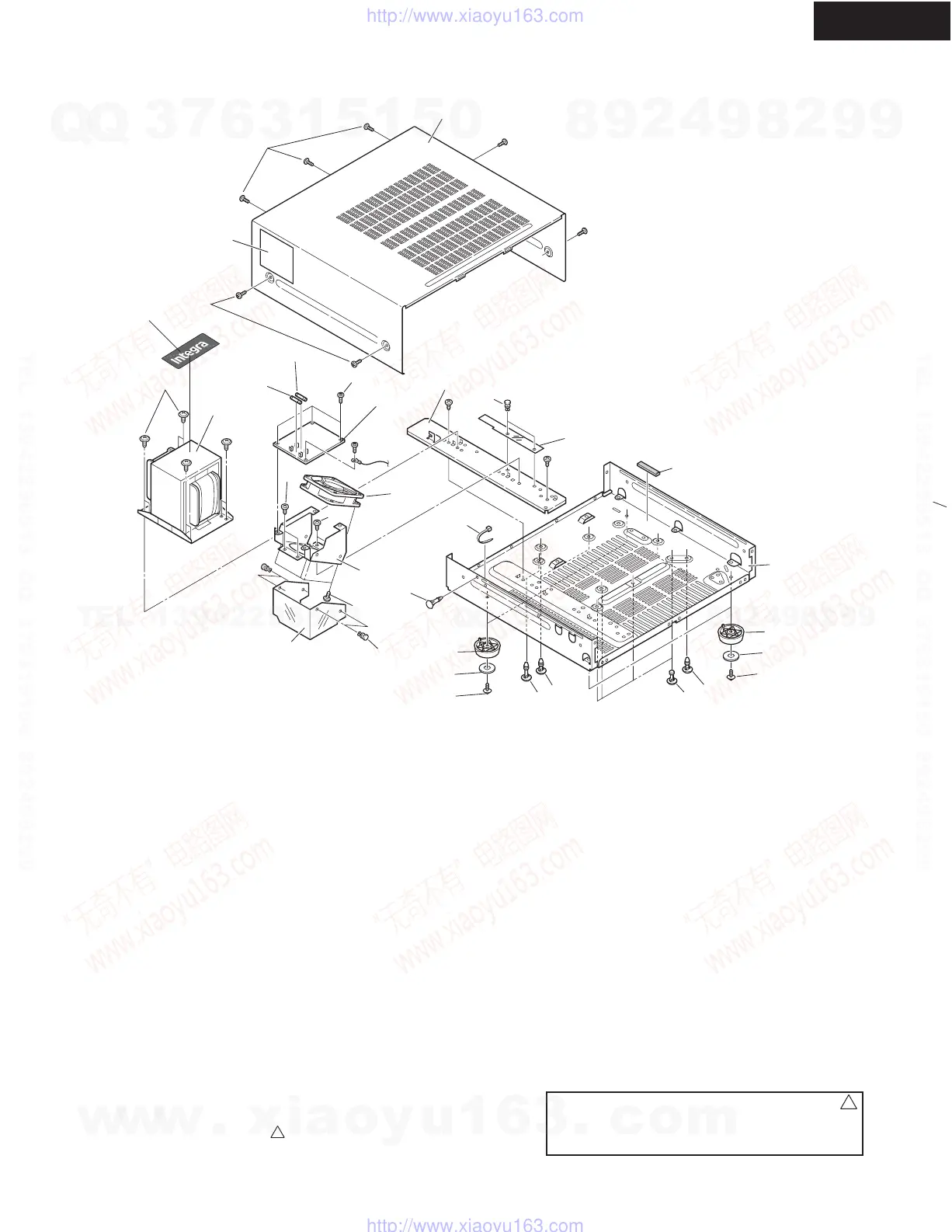

EXPLODED VIEW
Chassis section 1
NOTE: THE COMPONENTS IDENTIFIED BY MARK !
ARE CRITICAL FOR RISK OF FIRE AND
ELECTRIC SHOCK. REPLACE ONLY WITH
PART NUMBER SPECIFIED.
