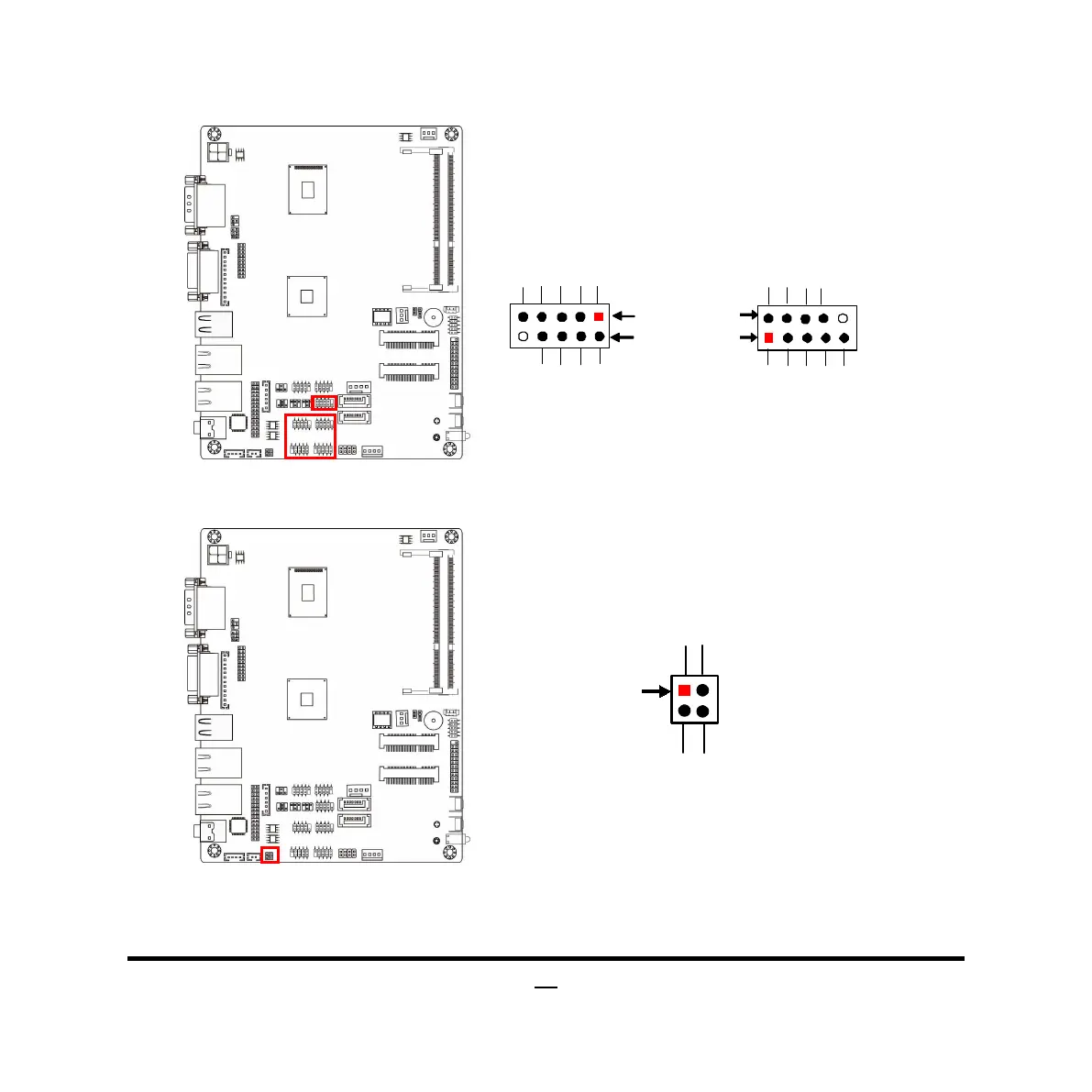

(3) COM2/3/4/5/6 (9-Pin): Serial Port Headers
Pin1
Pin6
DCD
SIN
SOUT
DTR
GND
DSR RTS CTS RI
COM2/3
COM4/5/6
DCD
Pin1
Pin6
SIN
SOUT
DTR GND
DSR
RTS CTS
RI
(4) TX_RXCOM1(4-Pin): RS422/485 Header
Pin 1
RXDN
TXDP
RXDP
TXDN
4
2
3
