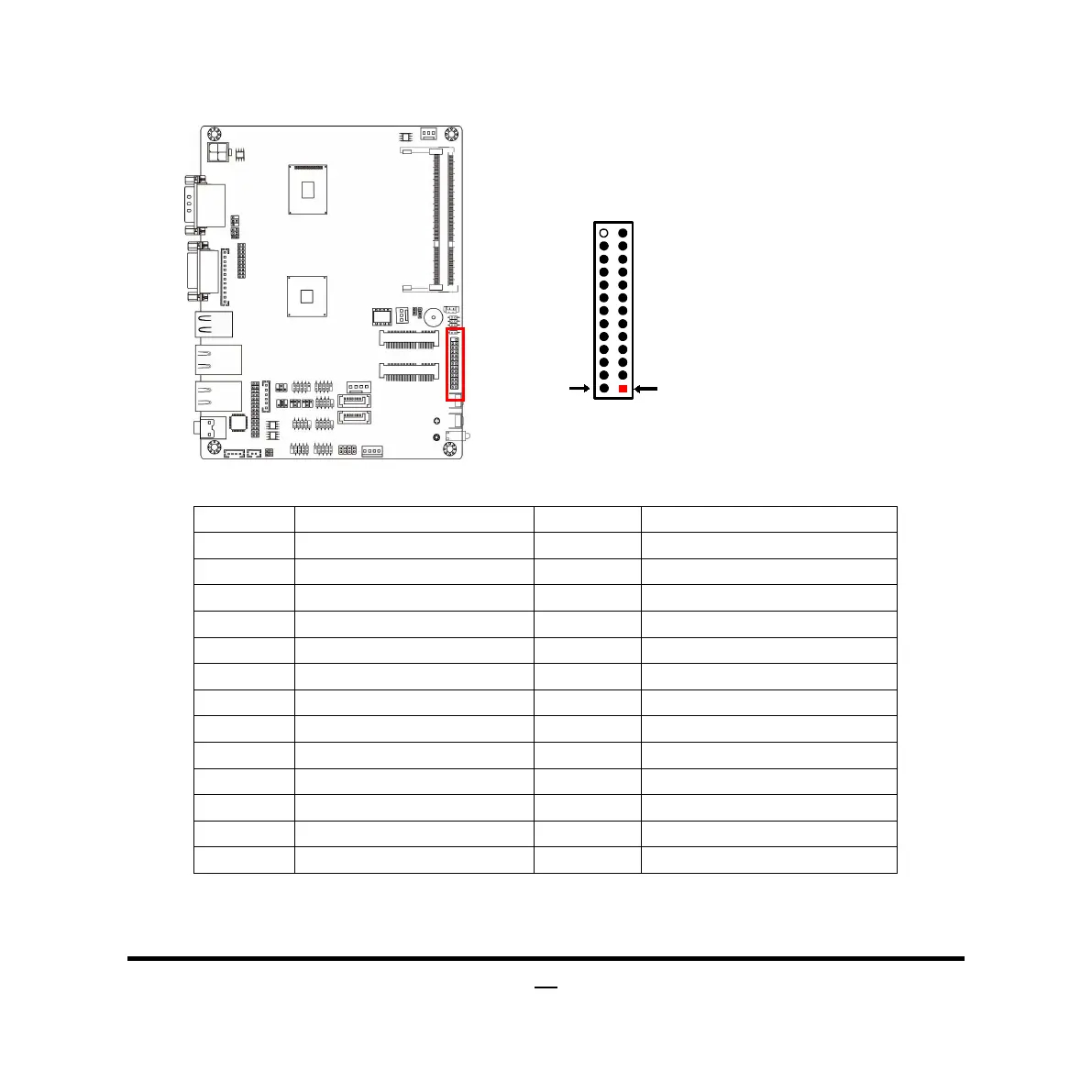

(5) PARALLEL1 (25-pin): Parallel Port Header
Pin 14
Pin1
Pin NO.
Pin Definition Pin NO. Pin Definition
Pin 1
STB-
Pin 14
AFD-
Pin 2
PRD0
Pin 15
ERR-
Pin 3
PRD1
Pin 16
INIT-
Pin 4
PRD2
Pin 17
SLIN-
Pin 5
PRD3
Pin 18
GND
Pin 6
PRD4
Pin 19
GND
Pin 7
PRD5
Pin 20
GND
Pin 8
PRD6
Pin 21
GND
Pin 9 PRD7 Pin 22 GND
Pin 10 ACK- Pin 23 GND
Pin 11 BUSY Pin 24 GND
Pin 12 PE Pin 25 GND
Pin 13 SLCT
