>> LAYOUT: FOOTPRINT 7343 D size
Fairchild: 25V, ID=250uA@VGS=0.85V typ, 1.5V max

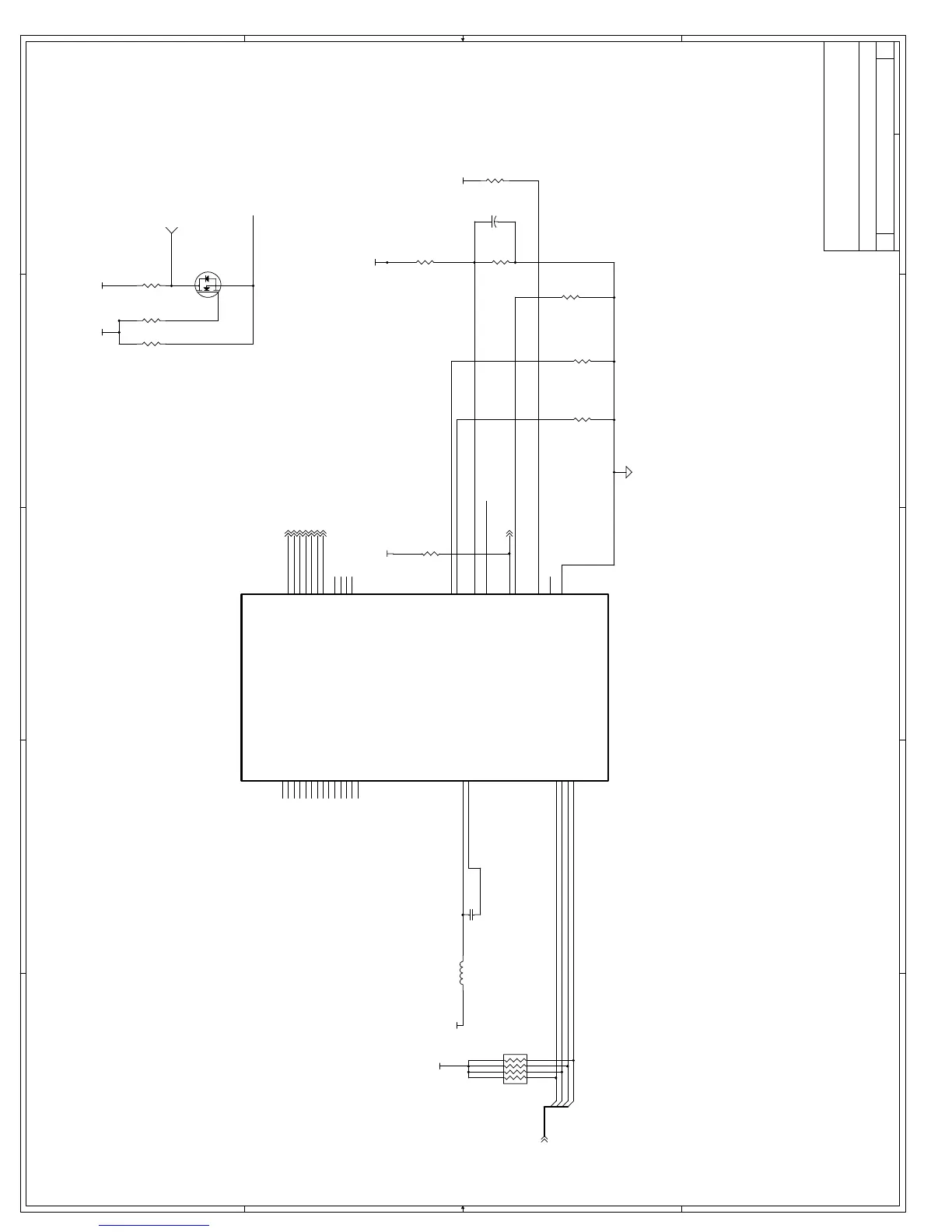

Intel(R) 440BX Scalable Performance Board A3
S370-256 Other
Embedded Intel Architecture Division
Intel Corporation
5000 W. Chandler Blvd
Chandler AZ, 85044
C
412Wednesday, April 26, 2000
Title
Size Document Number Rev
Date: Sheet
of
THERMTRIP#
THERMTRIP#
VID3
VID2
VID0
VID1
BSEL0# 7,8
TCK 10
TRST# 10
TDI 10
PREQ# 10
TDO 10
PRDY# 9,10
TMS 10
VID[3:0]11
VCCCORE
VCCCORE
V2_5
VCC_CMOS V3_3
v5_0
V3_3
R96
150 ohm
12
R90
1.5K
R91
1.5K
R92
10K
R93
1K
1 2
RP64
10K
1
2
3
4 5
6
7
8
TP18
TP
C148
33uF Kemet T495D336M016AS
L1
4.7uH Murata LQG21N4R7K00T1
R100
51 ohm
R101
110 ohm 1%
12
R97
110 ohm 1%
12
R99
1K
12
Test/ Debug & Unused
VID
U1C
S370-25 6
AK30
AM2
F10
G37
L33
N33
N35
N37
Q33
Q35
Q37
R2
W35
Y1
AL33
AN35
AN37
AK32
AN33
J37
A35
E35
C35
E37
G33
W33
U33
S35
Y33
AL35
AM36
AL37
AJ37
E27
AJ33
AJ31
AH28
AG1
E21
C37
NC1
NC2
NC3
NC4
NC5
NC6
NC7
NC8
NC9
NC10
NC11
NC12
NC13
NC14
TCK
TDI
TDO
TMS
TRST#
PREQ#
PRDY#
BPM1#
BPMO#
BP3#
BP2#
PLL1
PLL2
RTTCTRL
CLKREF
VID0
VID1
VID2
VID3
SLEWCTRL
BSEL0
BSEL1
THERMTRIP#
EDGCTRL/VRSEL
VCORDET
CPUPRES#
R98
150 ohm
12
C63
4.7uF
Q3
FDV301N
1
32
