30 Datasheet
Electrical Specifications
NOTES:
1. The loadline specification includes both static and transient limits except for overshoot allowed as shown in Section 2.12.
2. This loadline specification shows the deviation from the VID set point.
3. The loadlines specify voltage limits at the die measured at the VCC_SENSE and VSS_SENSE lands. Voltage regulation
feedback for voltage regulator circuits must be taken from processor V
CC
and V
SS
lands. Refer to the Voltage Regulator
Down (VRD) 10.1 Design Guide For Desktop LGA775 Socket for socket loadline guidelines and VR implementation details.
4. Adherence to this loadline specification for the processor is required to ensure reliable processor operation.

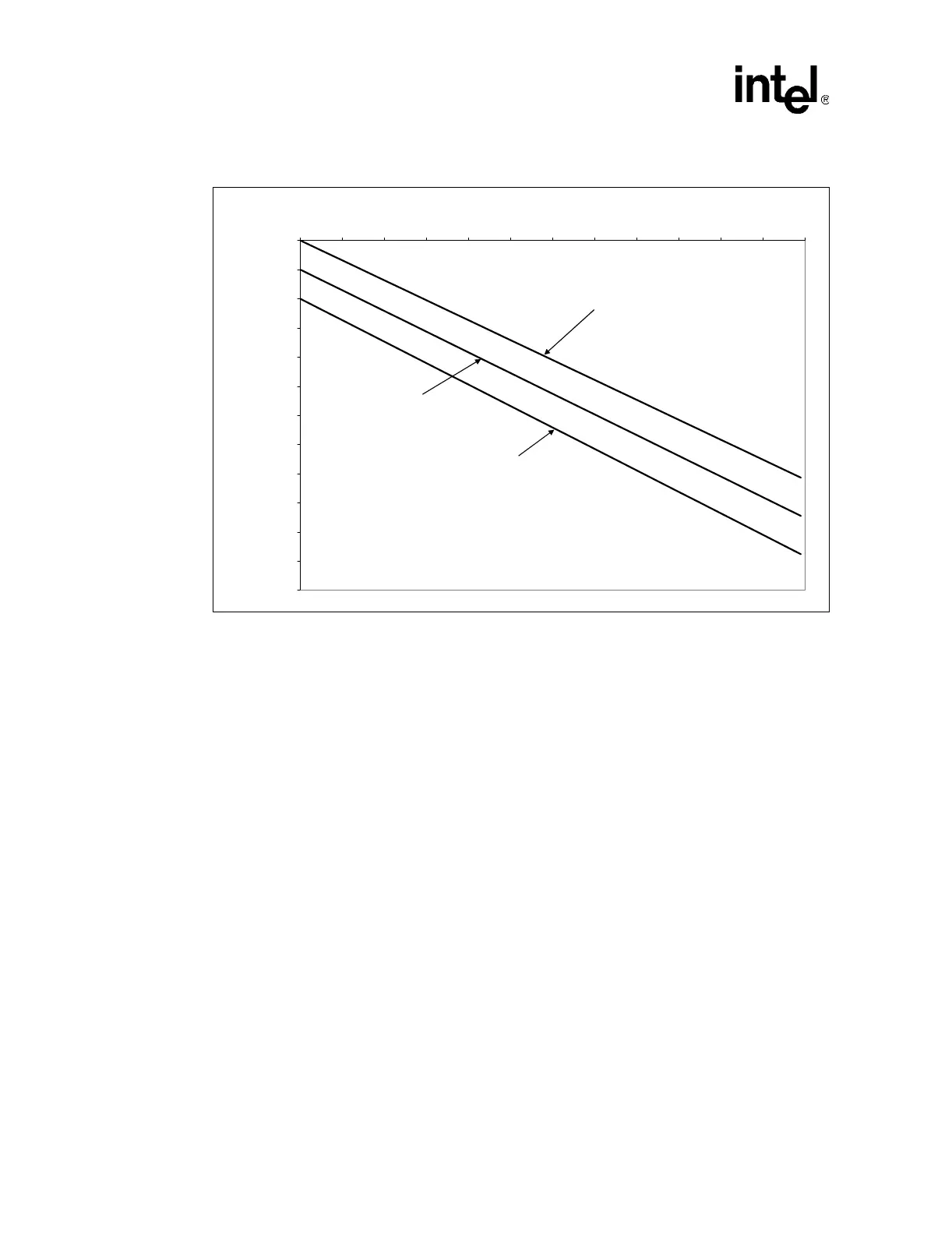

Figure 2-3. V
CC
Static and Transient Tolerance for 775_VR_CONFIG_04B
VID - 0.000
VID - 0.019
VID - 0.038
VID - 0.057
VID - 0.076
VID - 0.095
VID - 0.114
VID - 0.133
VID - 0.152
VID - 0.171
VID - 0.190
VID - 0.209
VID - 0.228
0 102030405060708090100110120
Icc [A]
Vcc [V]
Vcc Maximum
Vcc Typical
Vcc Minimum

Intel 520J - Pentium 4 2.80GHz 800MHz 1MB Socket 775 CPU Specifications

General

Clock Speed	2.80 GHz
Front Side Bus Speed	800 MHz
L2 Cache	1 MB
Socket Type	LGA 775
Core	Prescott
Lithography	90 nm
Thermal Design Power (TDP)	84 W
Instruction Set	x86
Virtualization Technology	No
64-bit Support	Yes
Hyper-Threading	Yes
Integrated Graphics	No
Processor Model	Intel Pentium 4 520J
Extensions	SSE2, SSE3
