Datasheet 93
Boxed Processor Specifications
7.3 Thermal Specifications
This section describes the cooling requirements of the fan heatsink solution used by the boxed
processor.
7.3.1 Boxed Processor Cooling Requirements
The boxed processor may be directly cooled with a fan heatsink. However, meeting the processor's
temperature specification is also a function of the thermal design of the entire system, and
ultimately the responsibility of the system integrator. The processor temperature specification is in
Chapter 5. The boxed processor fan heatsink is able to keep the processor temperature within the
specifications (see Table 5-1) in chassis that provide good thermal management. For the boxed
processor fan heatsink to operate properly, it is critical that the airflow provided to the fan heatsink
is unimpeded. Airflow of the fan heatsink is into the center and out of the sides of the fan heatsink.
Airspace is required around the fan to ensure that the airflow through the fan heatsink is not
blocked. Blocking the airflow to the fan heatsink reduces the cooling efficiency and decreases fan
life. Figure 7-7 and Figure 7-8 illustrate an acceptable airspace clearance for the fan heatsink. The
air temperature entering the fan should be kept below 38 ºC. Again, meeting the processor's
temperature specification is the responsibility of the system integrator.

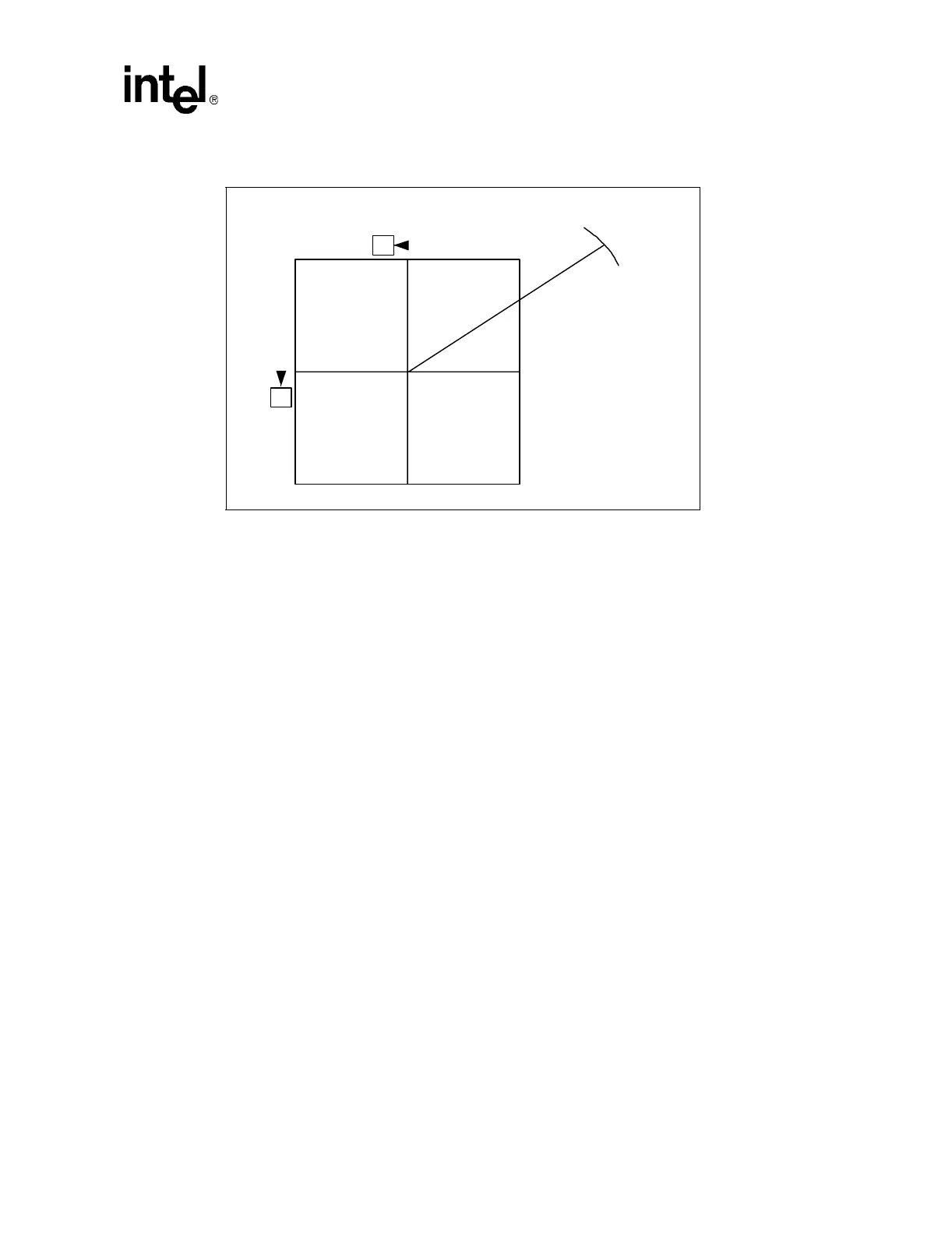

Figure 7-6. Baseboard Power Header Placement Relative to Processor Socket
B
C
R4.33
[110]

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Intel 520J - Pentium 4 2.80GHz 800MHz 1MB Socket 775 CPU and is the answer not in the manual?

Intel 520J - Pentium 4 2.80GHz 800MHz 1MB Socket 775 CPU Specifications

General IconGeneral
Clock Speed2.80 GHz
Front Side Bus Speed800 MHz
L2 Cache1 MB
Socket TypeLGA 775
CorePrescott
Lithography90 nm
Thermal Design Power (TDP)84 W
Instruction Setx86
Virtualization TechnologyNo
64-bit SupportYes
Hyper-ThreadingYes
Integrated GraphicsNo
Processor ModelIntel Pentium 4 520J
ExtensionsSSE2, SSE3
