Intel Desktop Board D525MW Product Guide
30
Installing a Wireless LAN Card in the PCI
Express Mini Card Slot
A wireless LAN card can be installed in the Desktop Board’s PCI Express Mini Card slot.
To install a Full-Mini Card wireless LAN card, see Figure 9 and follow these steps:
1. Observe the precautions in "Before You Begin" on page
23.
2. Insert the wireless LAN card into the PCI
Express Mini Card connector (Figure 9, A)
at a sligh
tly upward angle.
3. Align the card’s mounting holes over the board’s steel mounting posts (Figure 9, B)
and attach the card
with the s
upplied screws.
4. Attach your system’s antenna wires to the connectors (Figure 9, C) on the wireless
LAN card
as
shown.

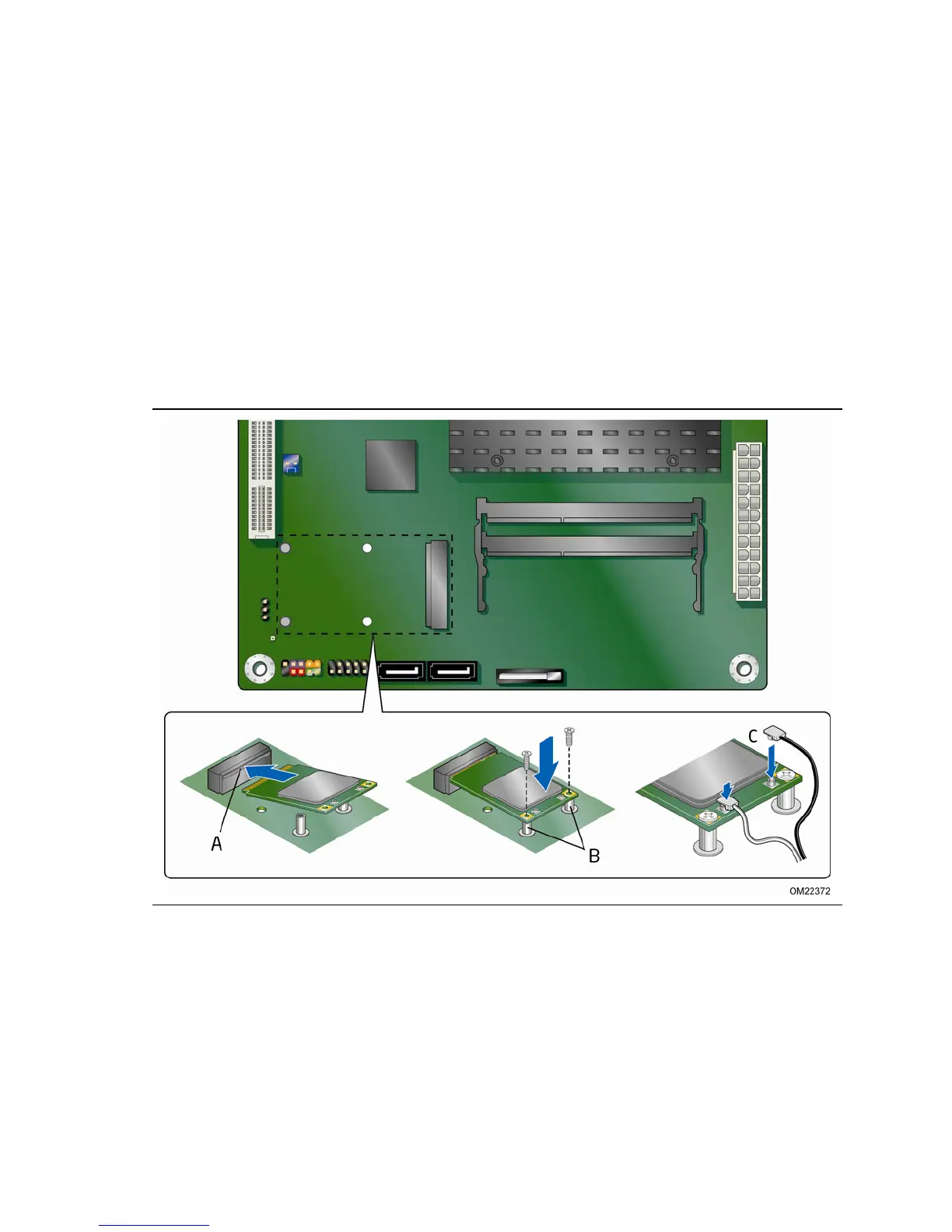

Figure 9. Installing a Full-Mini Card Wireless LAN Card
