Intel Desktop Board D525MW Product Guide
38
Connecting a Power Supply
CAUTION
Failure to connect an appropriate power supply to the Desktop Board may result in
damage to the board or the system may not function properly.
Figure 14 shows the location of the power connectors.

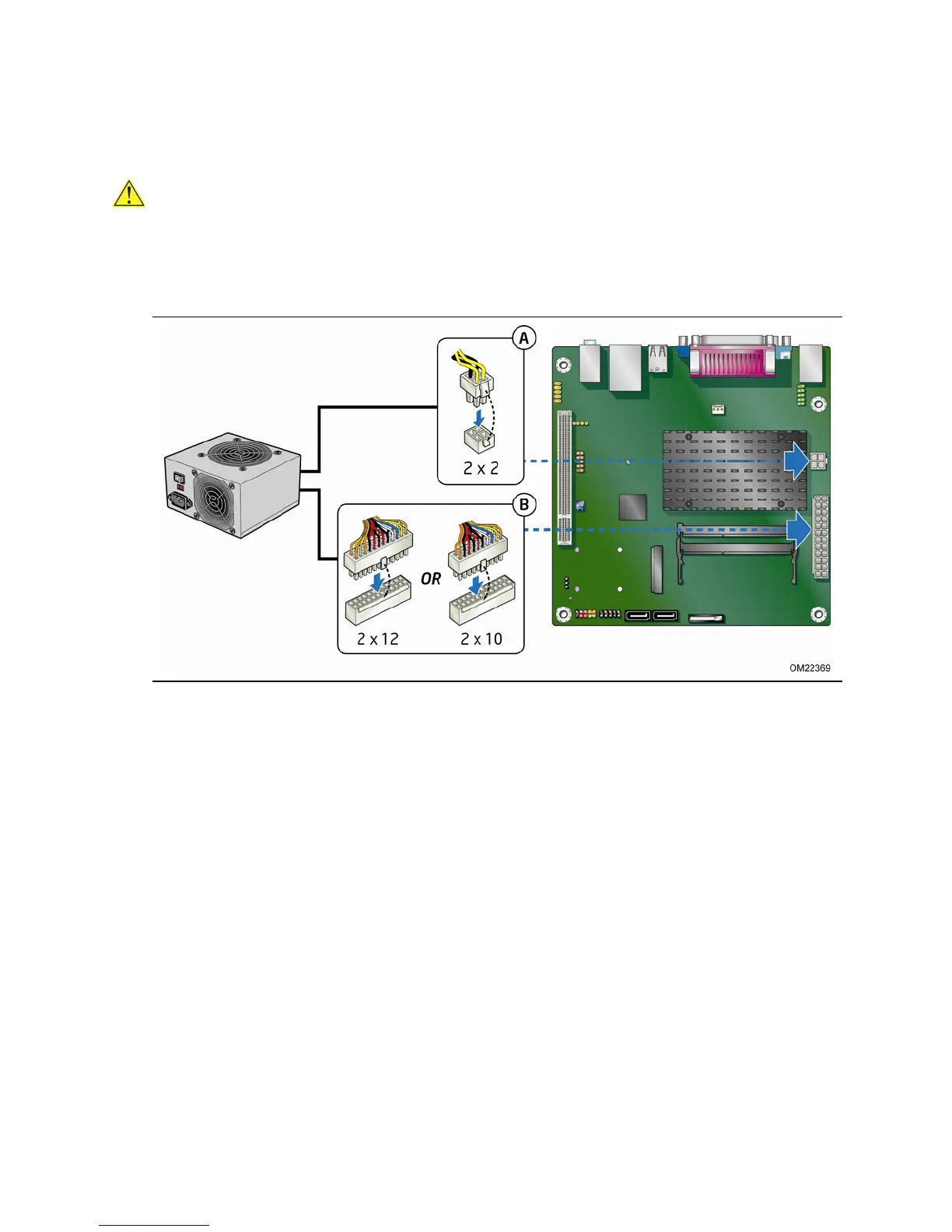

Figure 14. Connecting Power Supply Cables
1. Observe the precautions in "Before You Begin" on page 23.
2. Connect the main power supply cable to the 2 x 12 pin connector (Figure 14, B).
3. Connect the
12 V processor core voltage power supply cable to the 2 x 2 pin
connector (Figure 14, A).
