Installing and Replacing Desktop Board Components
31
To install a Half-Mini Card wireless LAN card, see Figure 10 and follow these steps:
1. Observe the precautions in "Before You Begin" on page 23.
2. Insert
the plastic Half-Mini Card latch in the mounting holes as shown in
Figure 10, A.
3. Insert the wireless LAN
card into the PCI
Express Mini Card connector
(Figure 10, B) at a sligh
t
ly upward angle.
4. Align the card’s mounting holes (Figure 10, C) with the plastic latch and snap it
int
o place.
5. Attach your system’s antenna wires to the connectors (Figure 10, D) on the
wireless LA
N card as
shown.

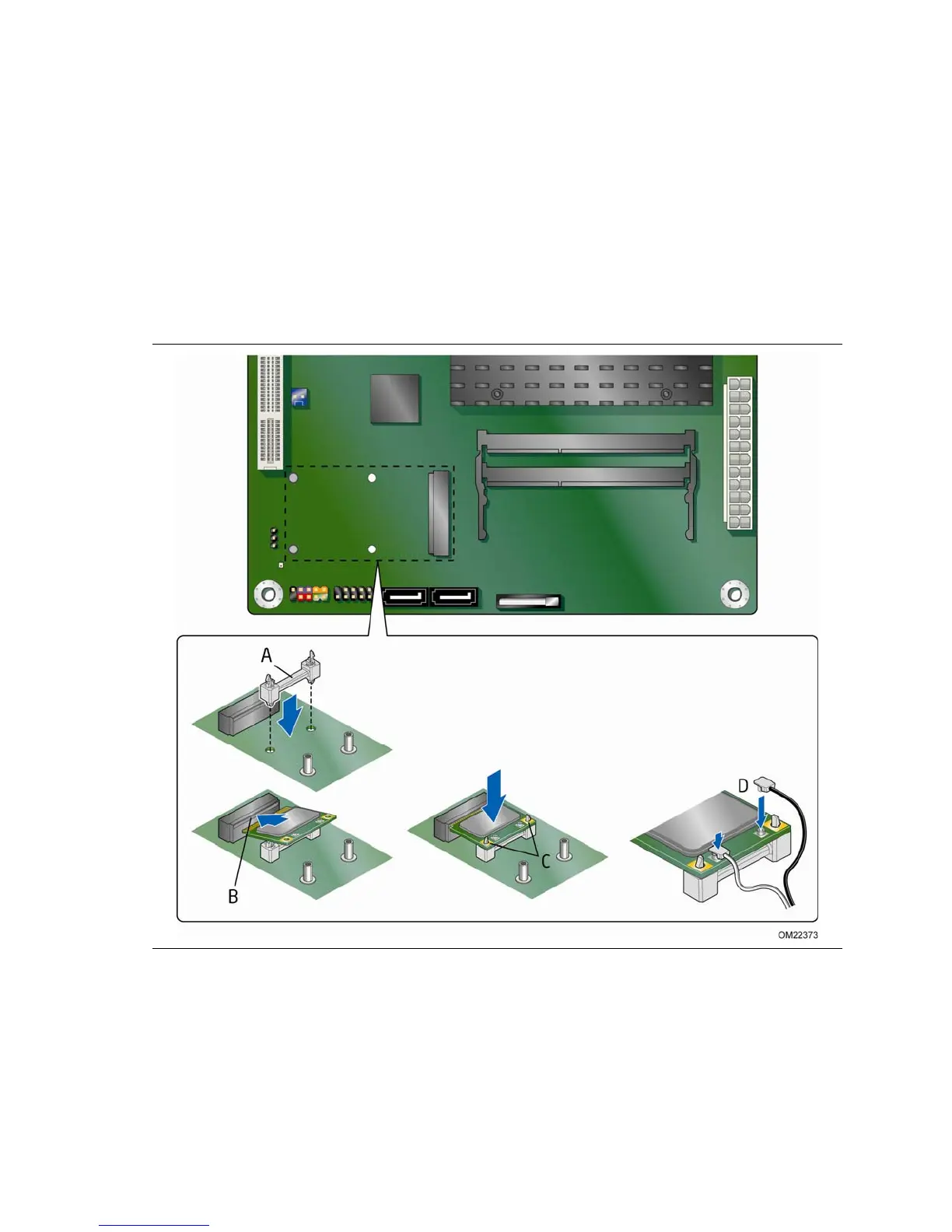

Figure 10. Installing a Half-Mini Card Wireless LAN Card
