Installing and Replacing Desktop Board Components
37
Connecting a Chassis Fan

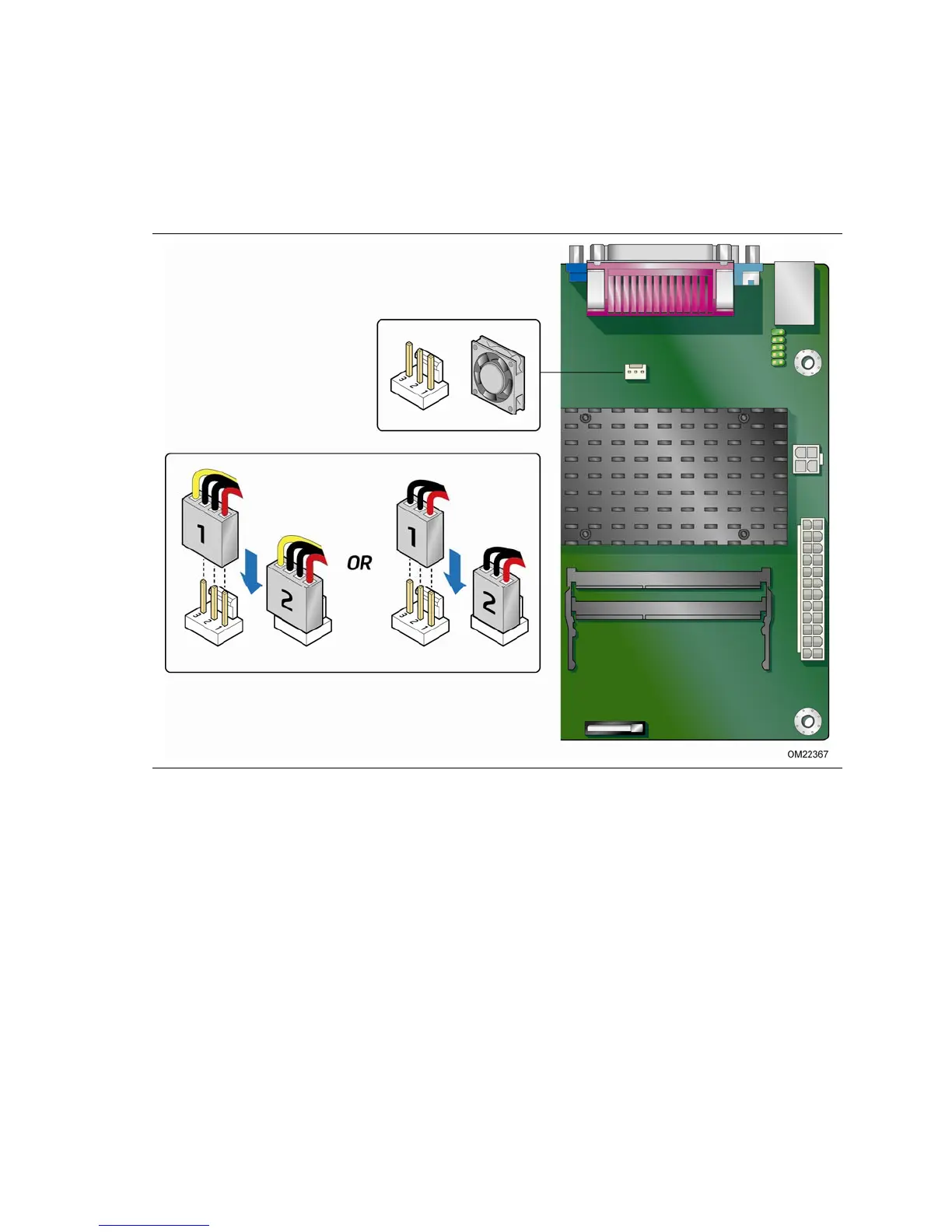

Figure 13 shows the location of the chassis fan header. Connect the chassis fan cable
to this header.
Figure 13. Location of the Chassis Fan Header
