Installing and Replacing Desktop Board Components
39
Setting the BIOS Configuration Jumper
NOTE
Always turn off the power and unplug the power cord from the computer before
changing a jumper. Moving the jumper with the power on may result in unreliable
computer operation.
Figure 15 shows the location of the Desktop Board’s BIOS configurati
on jumper block.

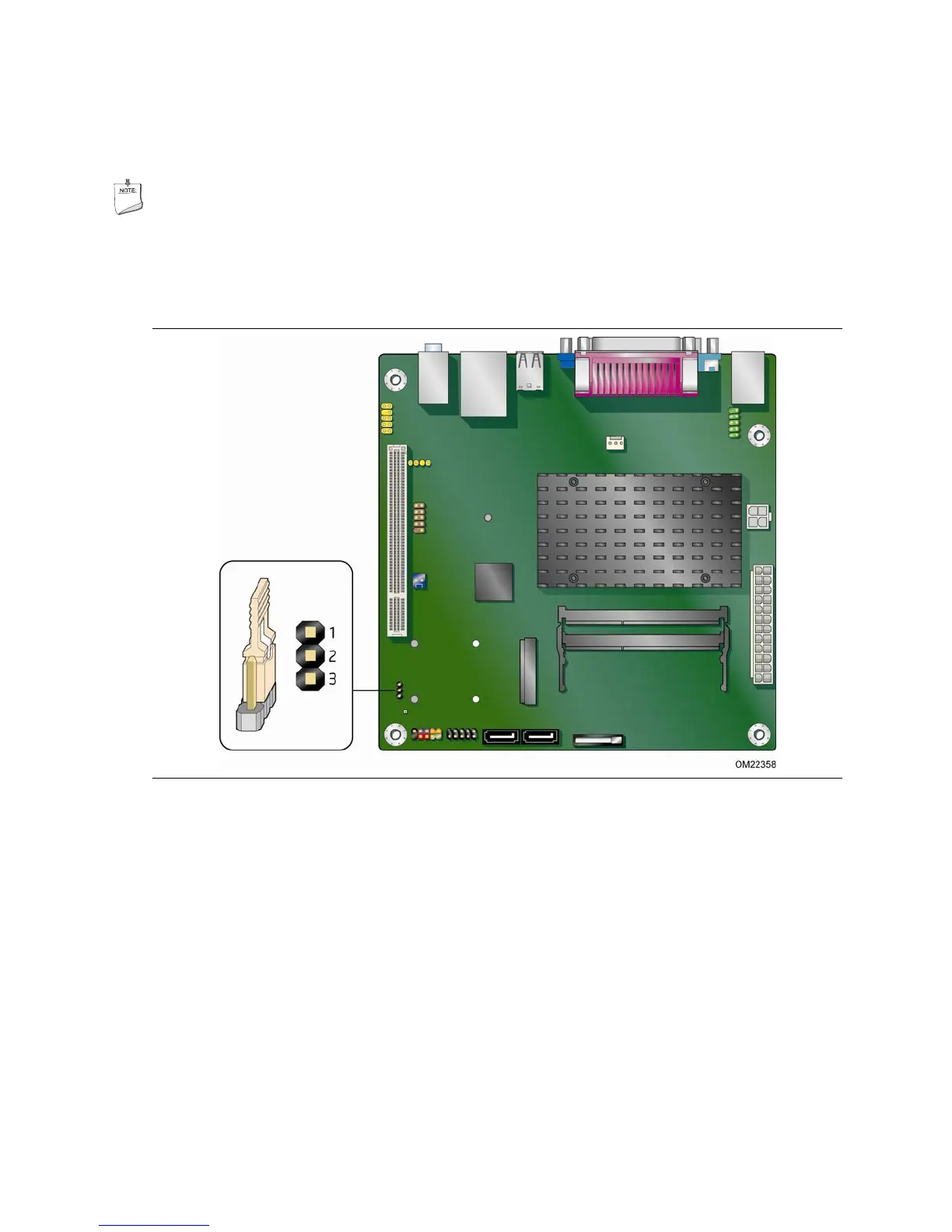

Figure 15. BIOS Configuration Jumper Block
The three-pin BIOS configuration jumper block enables board operating modes.
Table 13 shows the jumper settings for each of the available modes.
