Intel D525 User Manual

11

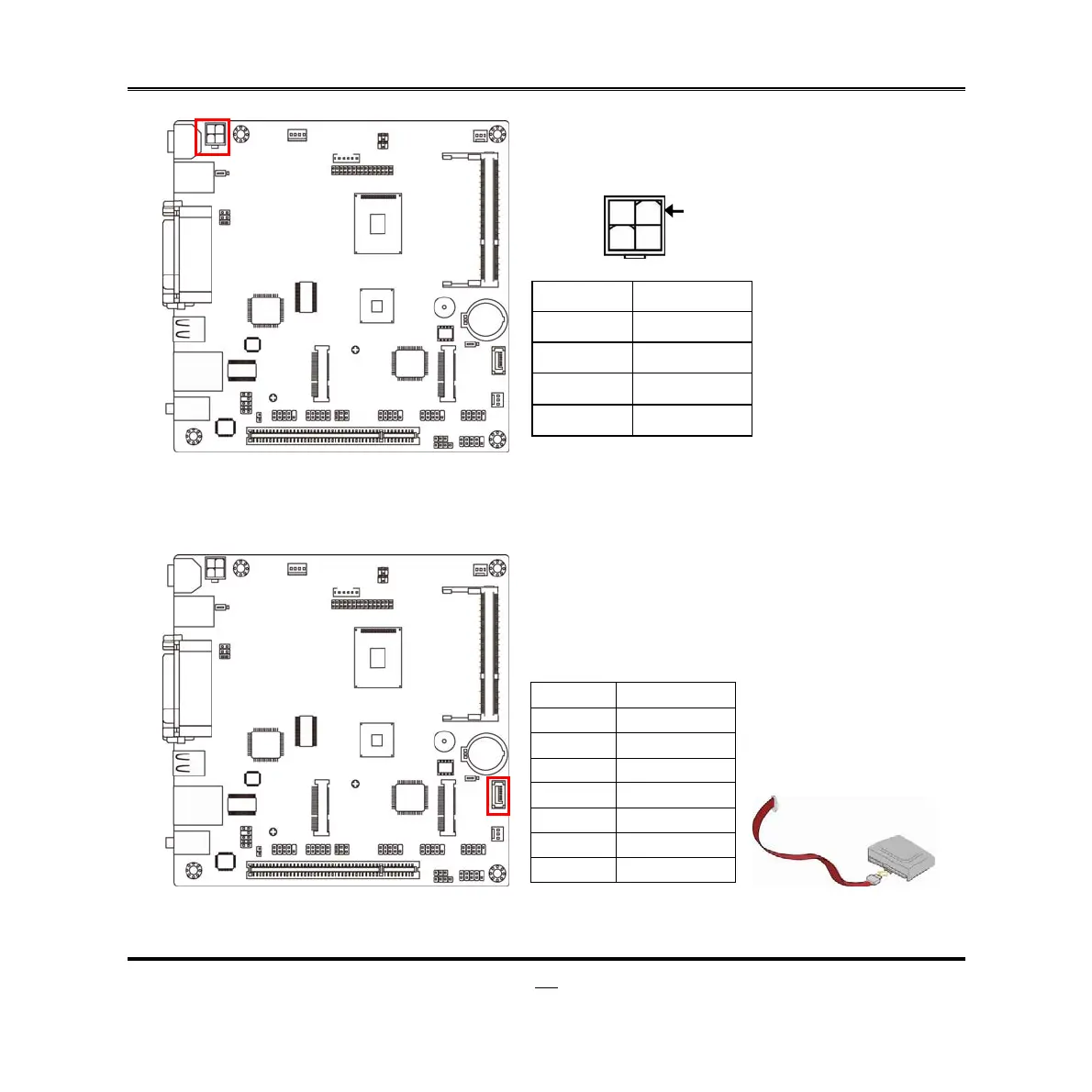

(3) ATX12V (4-pin block): ATX12V Type Power Connector
Pin1
Pin No. Definition
1 GND
2 GND
3 +12V
4 +12V
(4) SATA2:SATAII Port connector
SATA2 port is a SATAII port that supports 3 GB/s transfer rate.
Pin No. Defnition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND

Intel D525 Specifications

General

CPU	Intel Atom D525
Memory Type	DDR3
Max Memory	4GB
Storage Interfaces	2 x SATA 3Gb/s
USB Ports	6 x USB 2.0
Form Factor	Mini-ITX
Memory Slots	2
Graphics	Intel GMA 3150
Expansion Slots	1 x PCI
Audio	Realtek ALC662
