Intel D525 User Manual

3
Internal I/O Connectors& Headers:
z
1 *4-pin ATX12V Power connector
z
1 *4-pin SATA Power connector
z
1*CPU fan header
z
1*System fan header
z
1 * Front panel audio header
z
1 * HDMI_SPDIF header
z
3 * COM headers
z
1 *GPIO header
z
1 * 9-Pin USB 2.0/1.1 header for two USB 2.0/1.1 ports
z
1* Power LED header
z
1* Speaker header
z
1 * Front panel header
z
1* LVDS inverter header
z
1 *18-bit Single Channel LVDS header
1-3 Layout Diagram

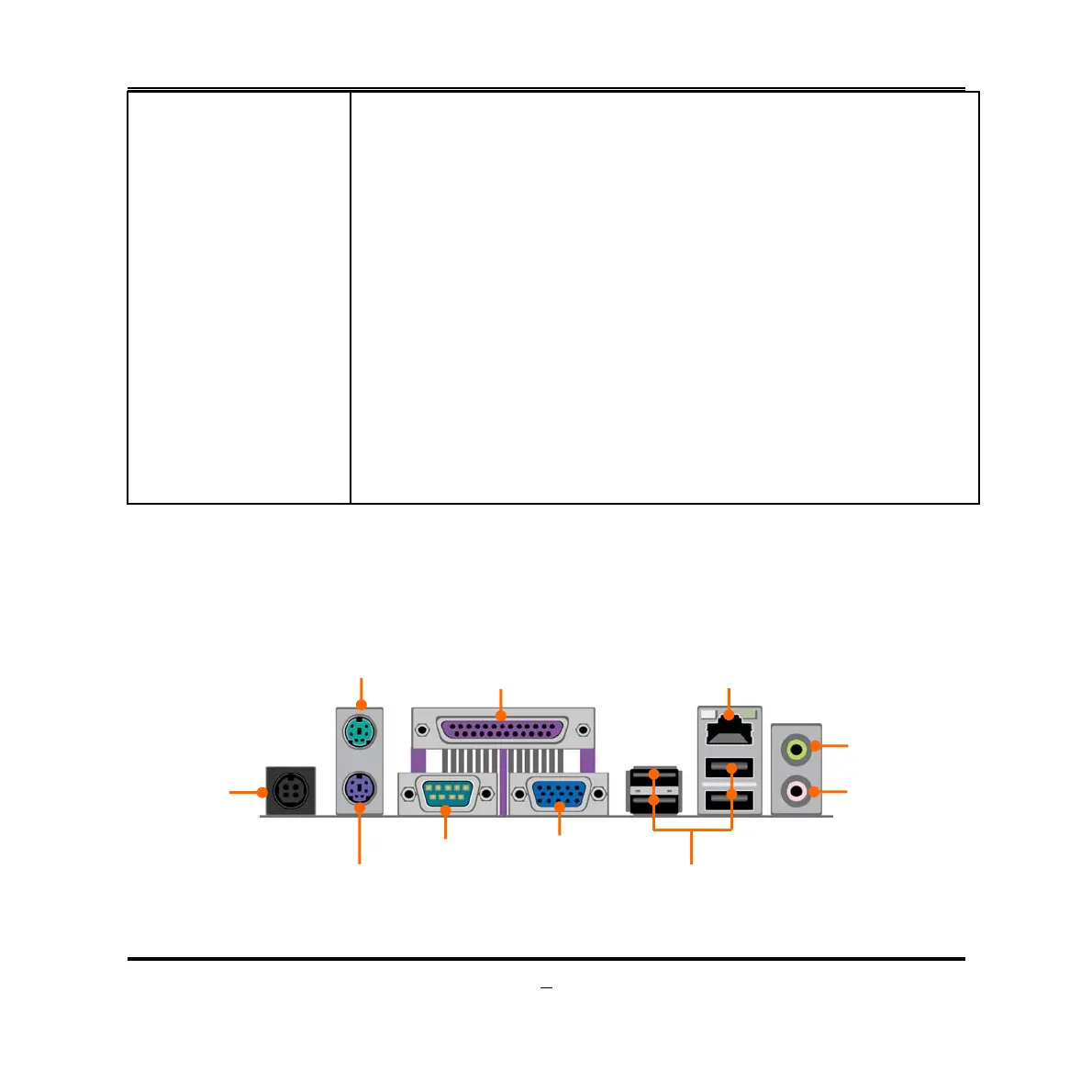

Rear IO Diagram
MIC-IN
Parallel Port
Line-OUT
DC12V
Power-in
Connector
PS/2 Keyboard Port
USB 2.0 Ports
RJ-45 LAN Port
PS/2 Mouse Port
COM1 Port VGA Port

Intel D525 Specifications

General

CPU	Intel Atom D525
Memory Type	DDR3
Max Memory	4GB
Storage Interfaces	2 x SATA 3Gb/s
USB Ports	6 x USB 2.0
Form Factor	Mini-ITX
Memory Slots	2
Graphics	Intel GMA 3150
Expansion Slots	1 x PCI
Audio	Realtek ALC662
