Intel D525 User Manual

7
Chapter 2
Hardware Installation

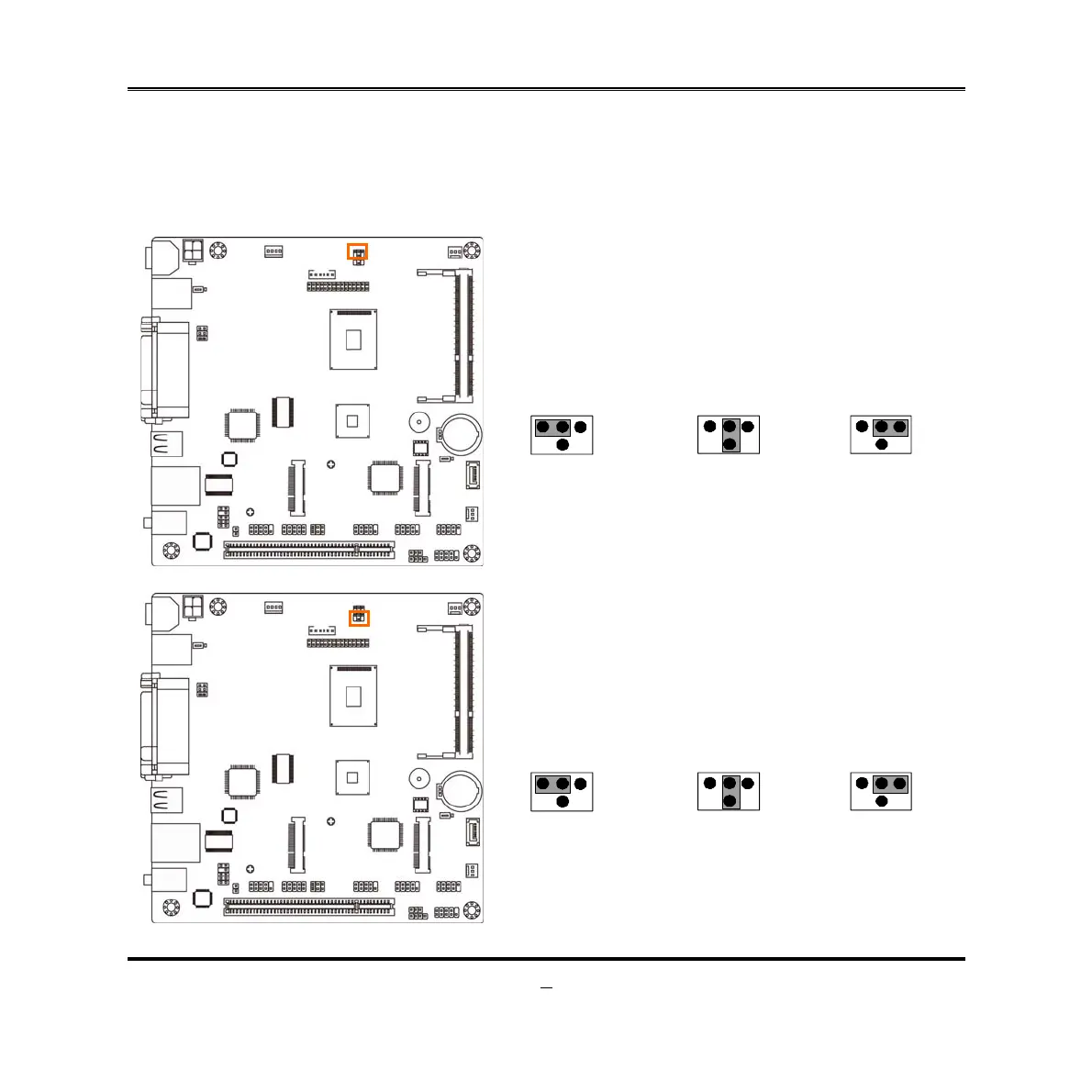

2-1 Jumper Setting
(1) JP1 (4-pin): INVERTER VCC 3.3V/5V/12V Select
JP1
642
3
1
5
13
5
24
6
1 3
5
2 4 6
2-4 Closed:
Inverter Backlight
VCC= 3.3V;
3-4 Closed:
Inverter Backlight
VCC= 5V;
6-4 Closed:
Inverter Backlight
VCC= 12V;
(2) JP2 (4-pin): LVDS VCC 3.3V/5V /12V Select
JP2
6-4 Closed: LVDS
VCC= 12V;
642
3-4 Closed: LVDS
VCC= 5V;
2-4 Closed: LVDS
VCC= 3.3V;
3
1
5
13
5
24
6
1 3
5
2 4 6

Intel D525 Specifications

General

CPU	Intel Atom D525
Memory Type	DDR3
Max Memory	4GB
Storage Interfaces	2 x SATA 3Gb/s
USB Ports	6 x USB 2.0
Form Factor	Mini-ITX
Memory Slots	2
Graphics	Intel GMA 3150
Expansion Slots	1 x PCI
Audio	Realtek ALC662
