Intel D525 User Manual

29

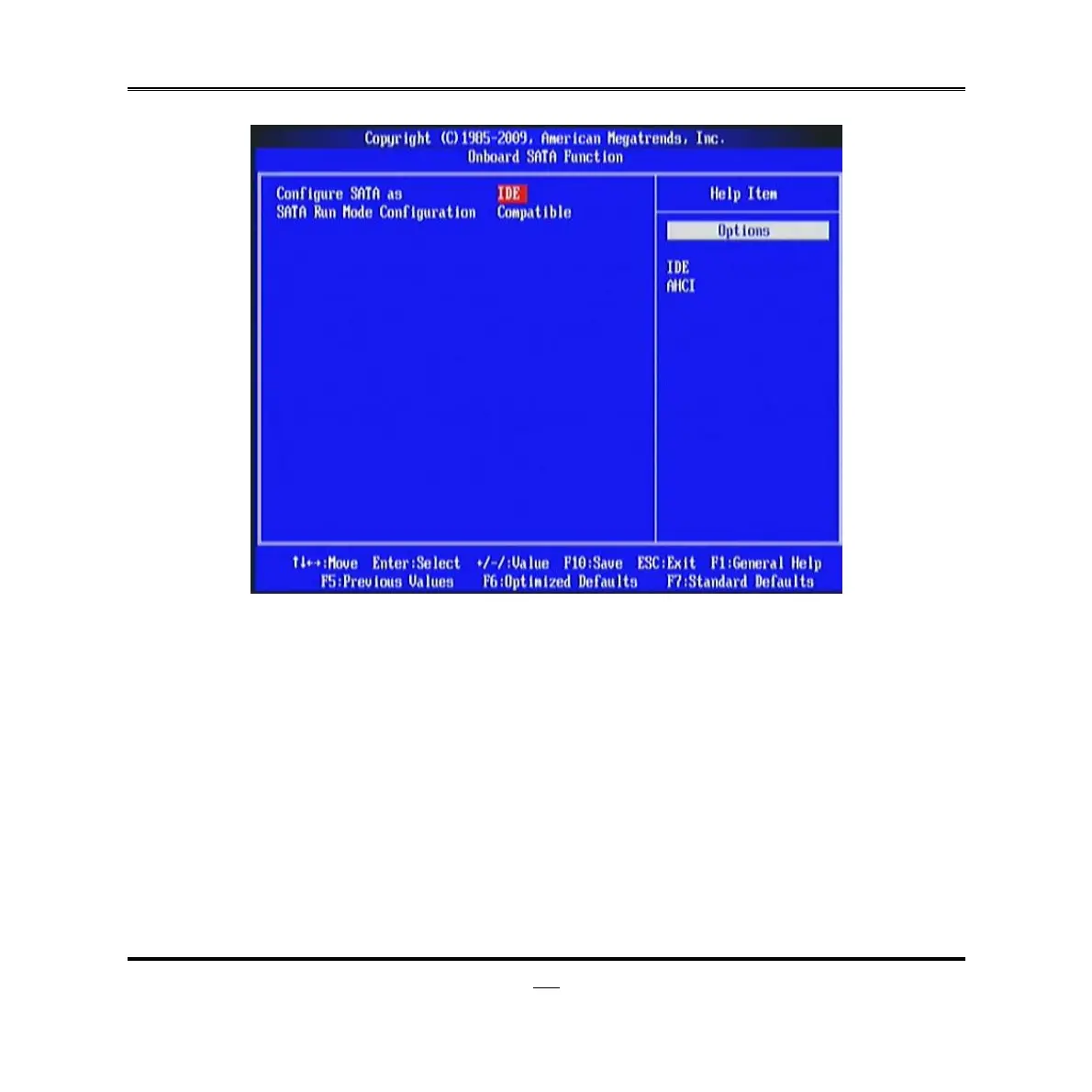

3-7-1 Onboard SATA Function
Configure SATA as
The optional settings are: [IDE]; [AHCI].
SATA Run Mode Configuration
The optional settings are: [Compatible];[Enhanced].

Intel D525 Specifications

General

CPU	Intel Atom D525
Memory Type	DDR3
Max Memory	4GB
Storage Interfaces	2 x SATA 3Gb/s
USB Ports	6 x USB 2.0
Form Factor	Mini-ITX
Memory Slots	2
Graphics	Intel GMA 3150
Expansion Slots	1 x PCI
Audio	Realtek ALC662
