Intel D525 User Manual

10
2-2 Connectors and Headers
2-2-1 Connectors

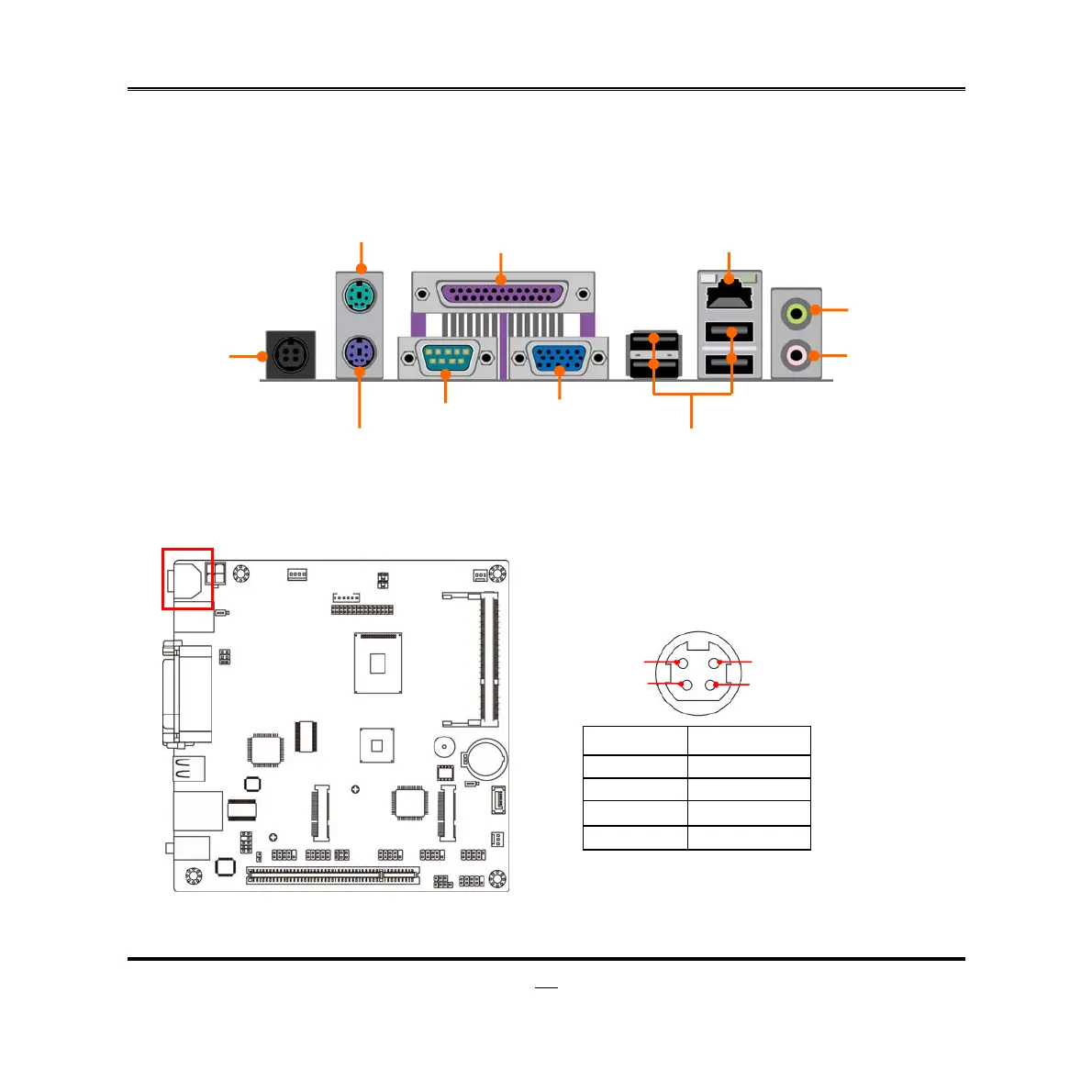

(1) Rear IO Diagram Connectors
(2) DC12V1 (4-pin Block): DC12V Power Connector
Pin1
Pin2
Pin3
Pin4
Pin No. Definition
1 +12V DC_IN
2 +12V DC_IN
3 GND
4 GND
MIC-IN
Parallel Port
Line-OUT
DC12V
Power-in
Connector
PS/2 Keyboard Port
USB 2.0 Ports
RJ-45 LAN Port
PS/2 Mouse Port
COM1 Port VGA Port

Intel D525 Specifications

General

CPU	Intel Atom D525
Memory Type	DDR3
Max Memory	4GB
Storage Interfaces	2 x SATA 3Gb/s
USB Ports	6 x USB 2.0
Form Factor	Mini-ITX
Memory Slots	2
Graphics	Intel GMA 3150
Expansion Slots	1 x PCI
Audio	Realtek ALC662
