Intel D525 User Manual

33

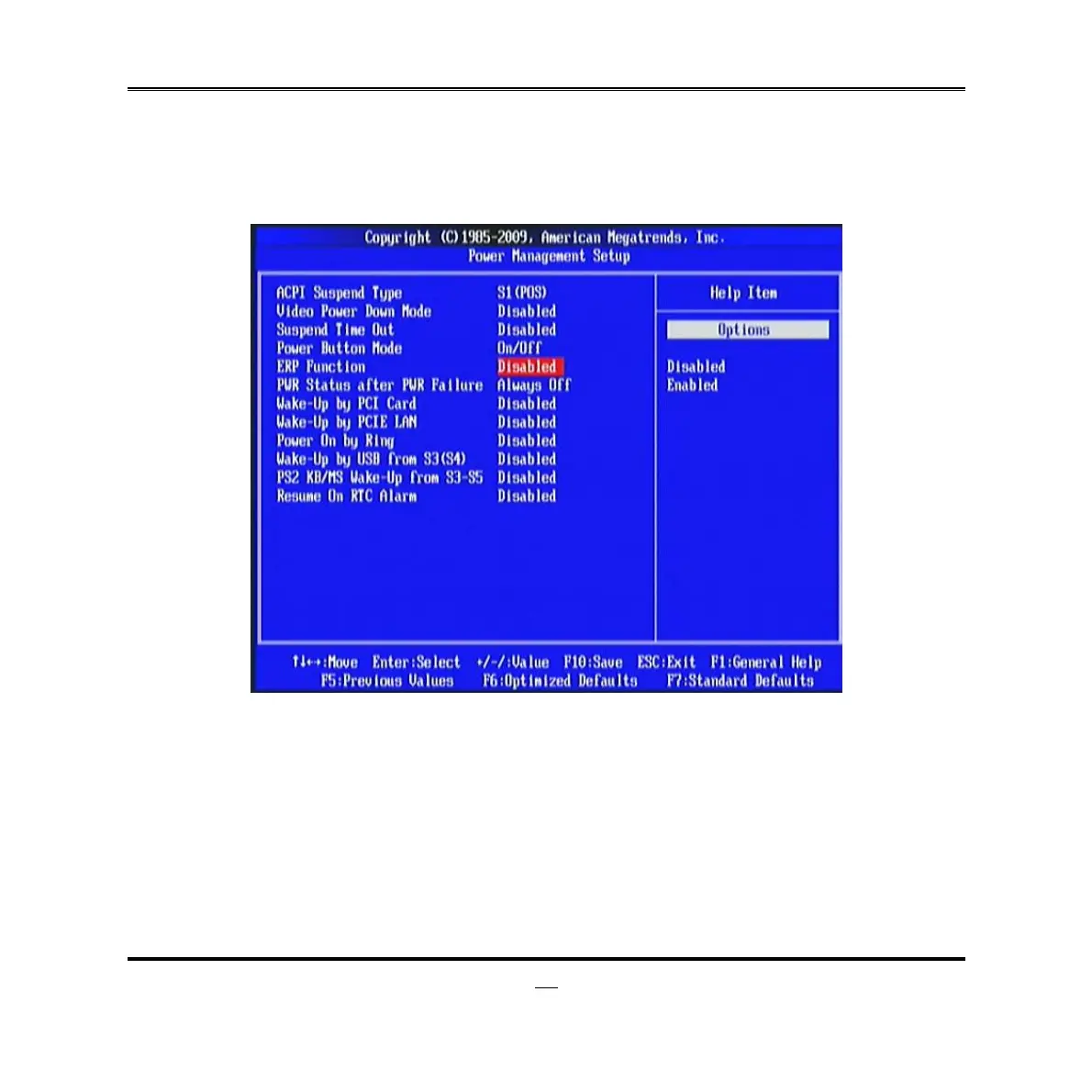

3-8 Power Management Setup
The Power Management Setup allows you to configure your system to most
effectively save energy saving while operating in a manner consistent with your own
style of computer use.
ACPI Suspend Type
Users can select the ACPI state used for system suspend. The optional settings are:
[S1(POS)]; [S3(STR)].
Video Power Down Mode
Use this item to power down video in Suspend or Standby Mode.
The optional settings: [Disabled]; [Standby]; [Suspend].
Suspend Time out
Use this item to select the specified time for system to go into suspend.
The optional settings: [Disabled]; [1 Min]; [2 Min]; [4 Min]; [8 Min]; [10 Min]; [20 Min];
[30 Min]; [40 Min]; [50 Min]; [60 Min]

Intel D525 Specifications

General

CPU	Intel Atom D525
Memory Type	DDR3
Max Memory	4GB
Storage Interfaces	2 x SATA 3Gb/s
USB Ports	6 x USB 2.0
Form Factor	Mini-ITX
Memory Slots	2
Graphics	Intel GMA 3150
Expansion Slots	1 x PCI
Audio	Realtek ALC662
