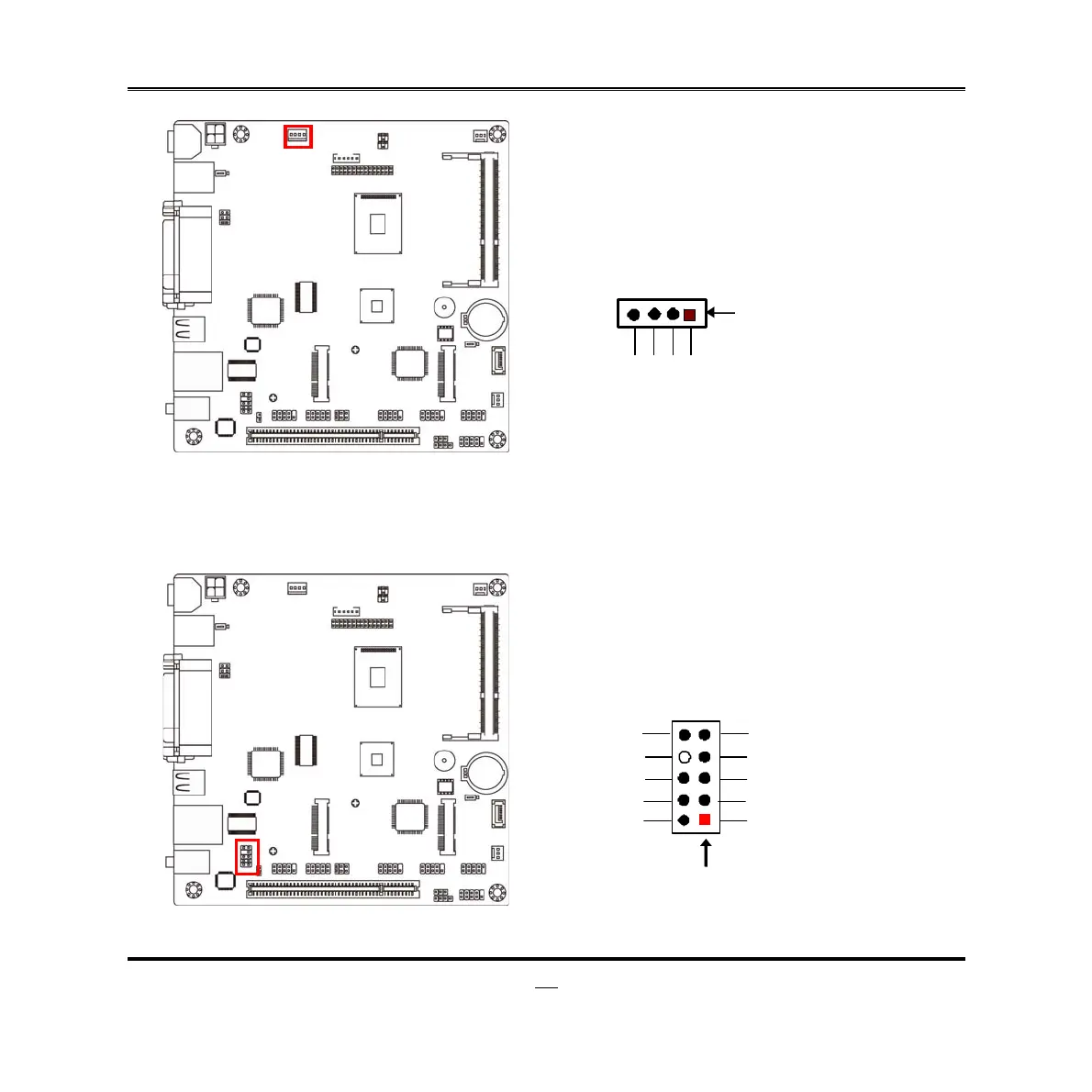

(5) SATA Hard Disk Power-out Connector (4-pin): PWOUT1
Pin 1
+12V GND +5V GND
2-2-2 Headers
(1) FP_AUDIO1 (9-pin): Line-Out, MIC-In Header
This header connects to Front Panel Line-out, MIC-In connector with cable.
MIC2-L
SENSE-FB
GND
KEY
NC
LINEOUT2-R NC
Pin 1
2
MIC2-R
LINEOUT2-L
NC

Intel D525 Specifications

General

CPU	Intel Atom D525
Memory Type	DDR3
Max Memory	4GB
Storage Interfaces	2 x SATA 3Gb/s
USB Ports	6 x USB 2.0
Form Factor	Mini-ITX
Memory Slots	2
Graphics	Intel GMA 3150
Expansion Slots	1 x PCI
Audio	Realtek ALC662
