Intel D525 User Manual

24
Type:
The optional settings are: [Not Installed]; [Auto]; [CD/DVD] and [ARMD].
LBA/Large Mode:
The optional settings are [Auto]; [Disabled].
Disabled: disables LBA mode.
Auto: enables LBA Mode if the devices support it and the device is not already
formatted with LBA Mode disabled.
Block (Multi-Sector Transfer):
The optional settings are: [Disabled] and [Auto].
Disabled: The Data transfer from and to the device occurs one sector at a time.
Auto: The Data transfer from and to the device occurs multiple sectors at a time if the
device supports it.
32 Bit Data Transfer:
the optional settings are: [Disabled] and [Enabled].

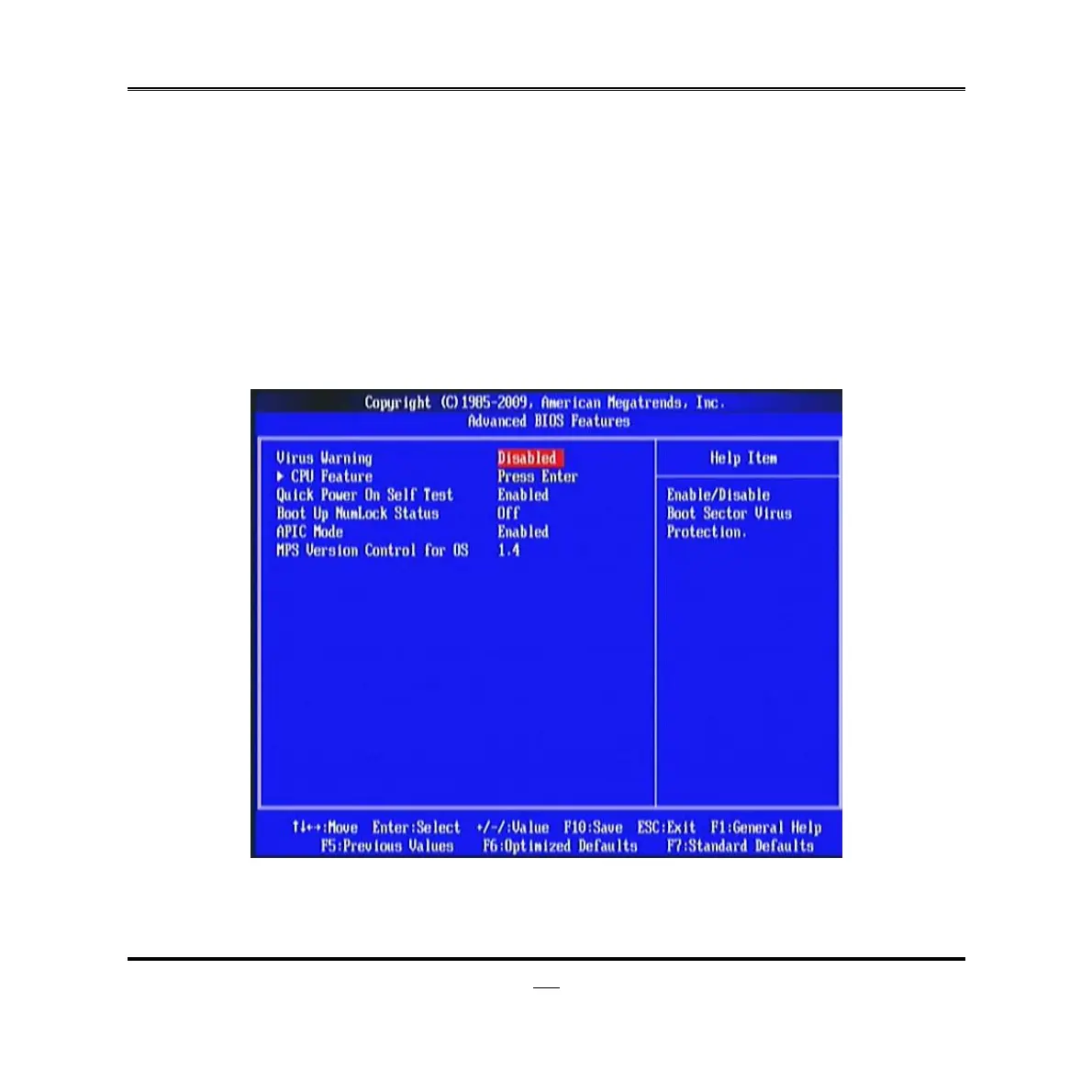

3-5 Advanced BIOS Features
