Intel D525 User Manual

4

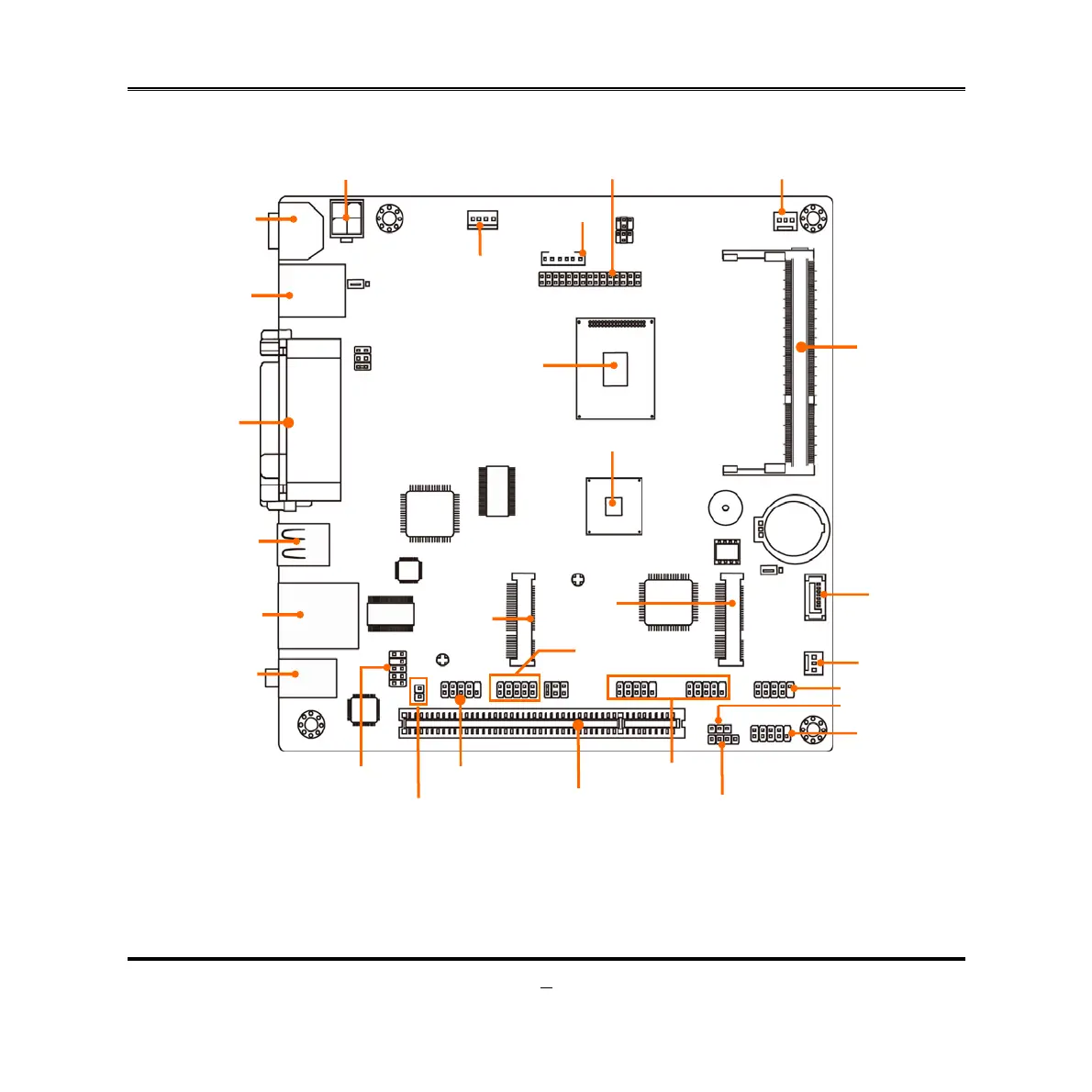

Motherboard Internal Diagram
ATX12V
Power connector
DDRIII SODIMM Slot
Parallel Por
t
over
Serial Port(COM1)
& VGA Por
t
Intel CPU
Intel NM10 Chipset
PCI Slot
LVDS Header
Front Panel
Audio Header
Front Panel Heade
r
DC12V
Power-in
Connecto
r
M-SATA
Hard Disk
Connector
LVDS Inverter
SATAII Port
(SATA1)
PS/2 Keyboard
over
PS/2 Mouse Port
USB 2.0 Ports
Line-Ou
t Port
Over MIC-In Port
Speaker Header
Serial Port Header
(COM2)
GPIO Header
SATA Hard Disk
Powe
r-Out Connector
SYSFAN1 Header
Half-Size
Mini-PCIE
Connector
RJ-45 LAN Port
over USB 2.0 Ports
CPUFAN Header
PWRLED Header
Serial Port Header
(COM3/4)
USB 2.0 Header
HDMI_SPDIF
Header

Intel D525 Specifications

General

CPU	Intel Atom D525
Memory Type	DDR3
Max Memory	4GB
Storage Interfaces	2 x SATA 3Gb/s
USB Ports	6 x USB 2.0
Form Factor	Mini-ITX
Memory Slots	2
Graphics	Intel GMA 3150
Expansion Slots	1 x PCI
Audio	Realtek ALC662
