Intel D525 User Manual

27

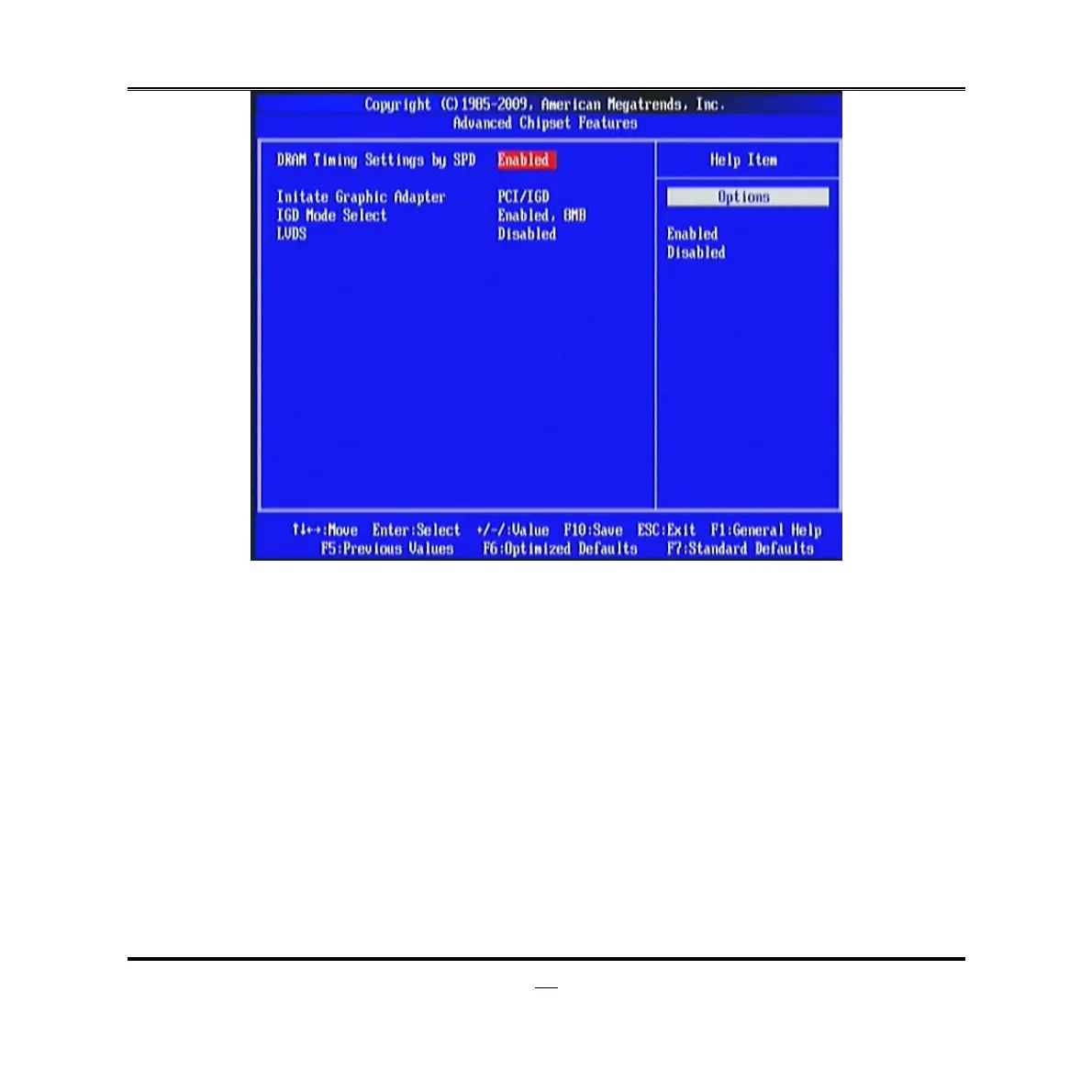

DRAM Timing Settings by SPD
The optional settings are: [Disabled]; [Enabled].
Initate Graphic Adapter
The optional settings are: [IGD]; [PCI/IGD]. Select which graphic controller to use as
the primary boot device.
IGD Mode Select
Use this item to select the amount of system memory used by the internal graphics
device. The optional settings: [Disabled]; [Enabled, 8MB].
LVDS
The optional settings are: [Enabled]; [Disabled].
*Note: When set as [Enabled], the following setting items will appear:
Boot Display Device
The optional settings are: [VBIOS Default]; [CRT]; [LVDS]; [CRT+LVDS].
Flat Panel Type

Intel D525 Specifications

General

CPU	Intel Atom D525
Memory Type	DDR3
Max Memory	4GB
Storage Interfaces	2 x SATA 3Gb/s
USB Ports	6 x USB 2.0
Form Factor	Mini-ITX
Memory Slots	2
Graphics	Intel GMA 3150
Expansion Slots	1 x PCI
Audio	Realtek ALC662
