Intel Desktop Board D845EPI Technical Product Specification
44
2.8.1 Back Panel Connectors

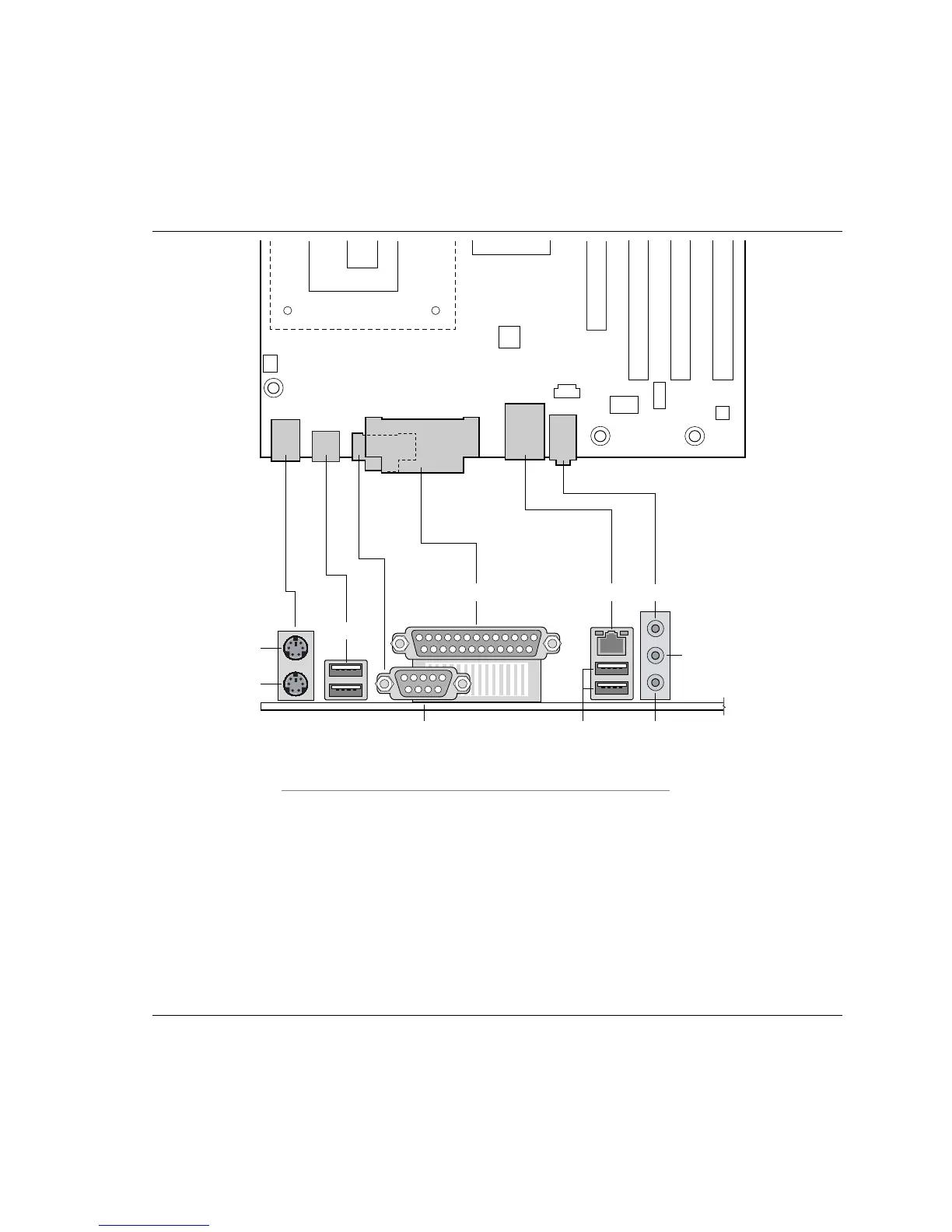

Figure 4 shows the location of the back panel connectors. The back panel connectors are
color-coded in compliance with PC 99 recommendations. The figure legend below lists the
colors used.
OM16245
J
A
B
F
HE
C
G ID
Item Description Color
A PS/2 mouse port Green
B PS/2 keyboard port Purple
C USB ports Black
D Serial port A Teal
E Parallel port Burgundy
F LAN (optional) Black
G USB ports Black
H Audio line in Light blue
I Mic in Pink
J Audio line out Lime green
Figure 4. Back Panel Connectors

Intel D845EPI Specifications

General

Brand	Intel
Model	D845EPI
Category	Motherboard
Language	English
