Intel Desktop Board D845EPI Technical Product Specification
46
2.8.2.2 Audio, Power, and Hardware Control Connectors

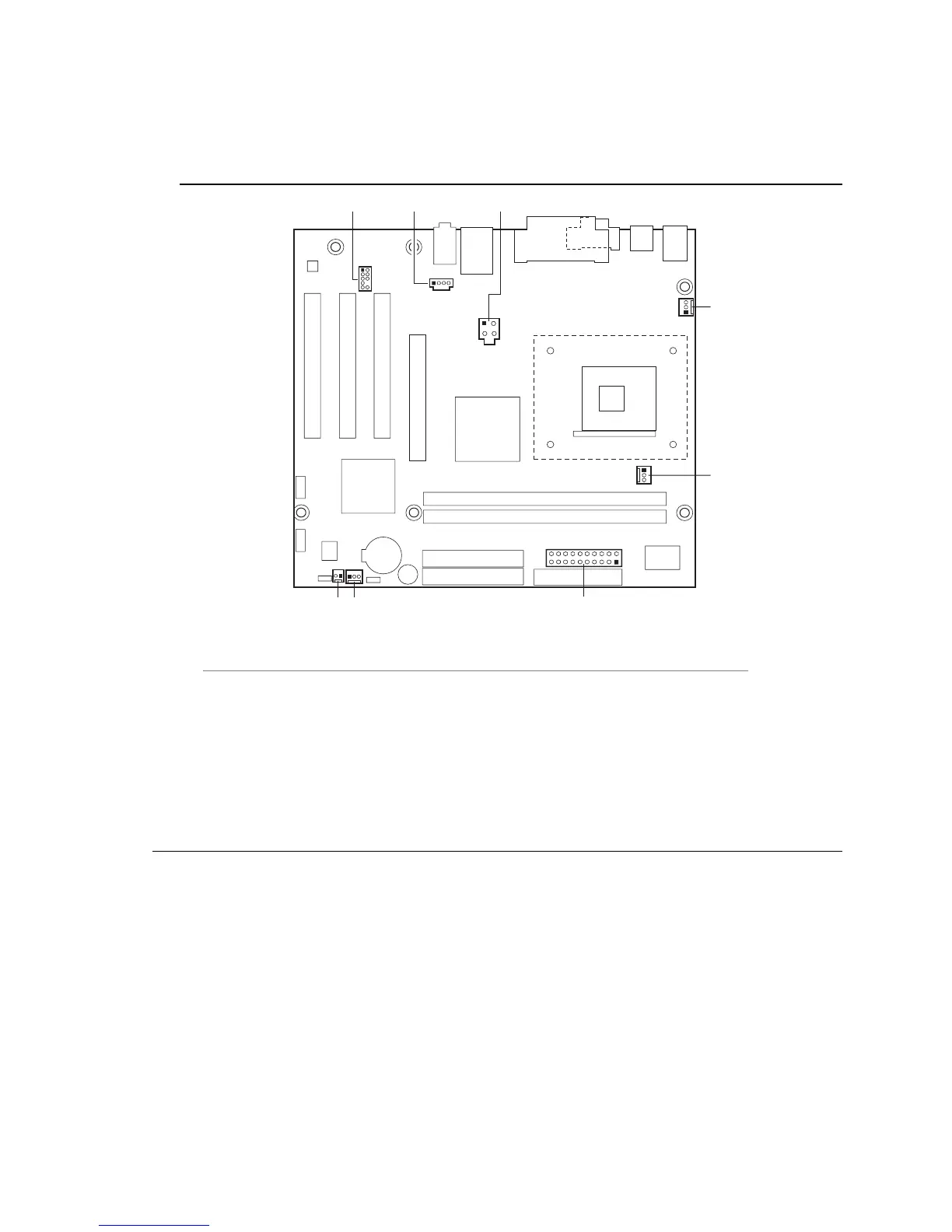

Figure 5 shows the location of the audio, power, and hardware control connectors.
OM16246
4
1
1
1
3
4
21
3
1
3
10
20
11
1
H G
E
D
F
BC
1
3
A
12
9
10
Item Description For more information see:
A Front panel audio Table 17
B ATAPI CD-ROM (black) Table 18
C +12 V power connector (ATX12V) Table 19
D Rear chassis fan Table 20
E Processor fan Table 21
F Main power Table 22
G Front chassis fan Table 23
H Chassis intrusion Table 24
Figure 5. Audio, Power, and Hardware Control Connectors

Intel D845EPI Specifications

General

Brand	Intel
Model	D845EPI
Category	Motherboard
Language	English
